Technical Parameter
Technical Parameter
Current rating:
10A
Voltage rating:
AC220V
Operation type:
Self locking (retaining)
Contact type
1NC+1NO
Protective function:
Anti leakage
Operating temperature:
-20℃～85℃
Shell material:
PVC
Protection level:
IP44
Contact material:
Brass plating
Product certification:
CE
Mechanical lifespan
10000/time
Electrical lifespan:
20000 hit/time
Power interface:
GX16-2pin
Product weight:
0.4kg/0.6kg/1.3kg
Package weight:
0.8kg/1kg/1.5kg

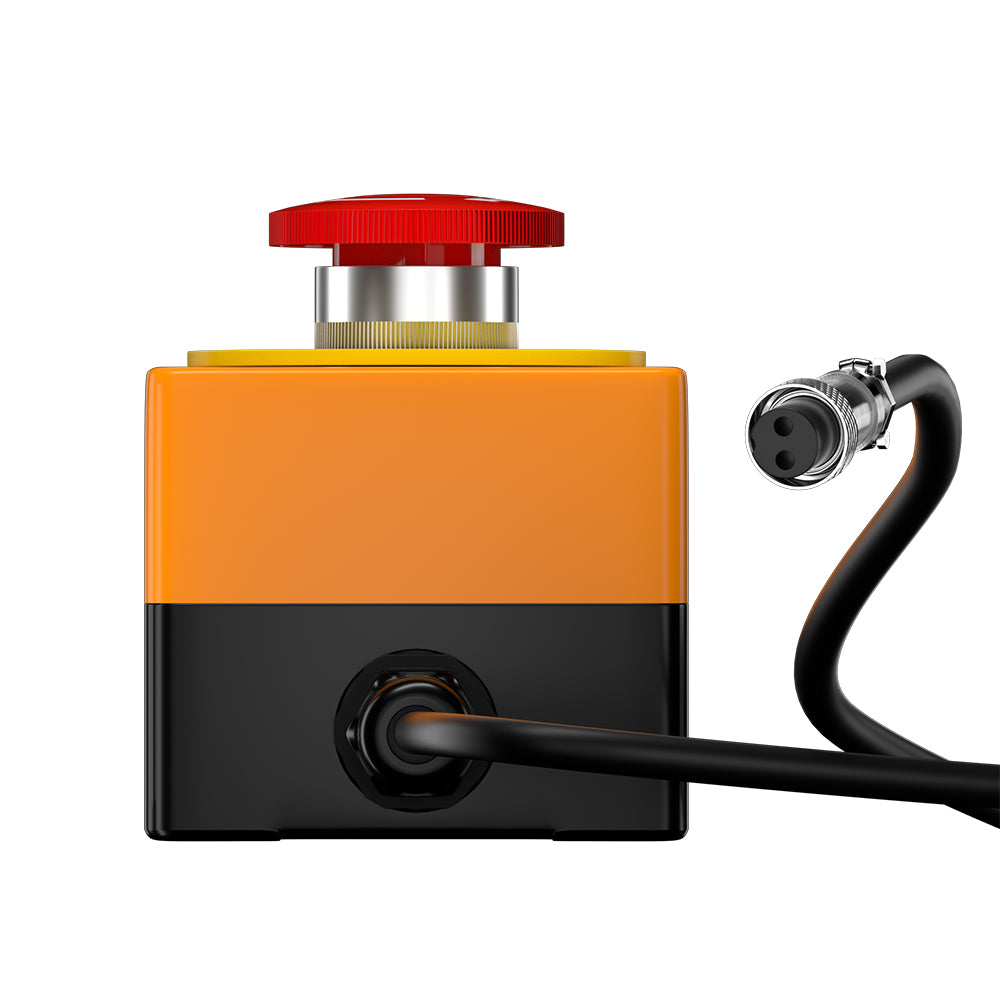

Remote Interlocking Emergency Switch
This product is a remote interlocking emergency switch designed specifically for laser equipment,
aimed at ensuring that the laser output can be quickly and reliably cut off in emergency situations,
ensuring the safety of operators and the surrounding environment.
Laser Safety Exclusive Design
Strictly follow the international laser safety standard (IEC 60825-1) to ensure that the laser source can be immediately cut off in emergency situations.
Equipped with laser safety interlock function, when the emergency switch is triggered, the laser emitter will automatically shut down to prevent laser leakage.
Mushroom Button
The design of the emergency stop switch is simple and intuitive,
with prominent red markings and mushroom shaped buttons to ensure that it can be quickly recognized
and pressed in emergency situations, achieving instant shutdown of the laser equipment.
Pin Design
Using aviation cable materials and wire with precision silver plated pins,
we have undergone rigorous testing and certification to ensure that every power cord can operate stably in various environments.
Microswitch
Adopting precision mechanical structure and high-sensitivity contact design,
it ensures that the switch action can be triggered instantly upon receiving emergency signals, achieving millisecond level response.
To ensure accurate and rapid triggering of corresponding operations in emergency situations.
Scope Of Application
This remote interlocking emergency switch isw a safety control component specially
designed for laser equipment equipped with GX-16 two pin interface.
