Technical Parameter
-Electrical Specification and Connections
Power Supply:
AC 100-240V,50--60HZ
Power Consumption:
400W
LED Source:Quantity:
400W CoB high brightness
Color:
RGBW
DMX Channels:
10 DMX Channels
Control Modes:
DMX512.Auto Run,Sound Action.Strobe Master/SlaveWith Rich Advanced Built-in Program
BeamAngle:
Electric Adjust,5-50 Degrees
Heatdissipationmethod:
Fans Cooling+Natural Heat Dissipation
Heatdissipationcontrol:
Motherboard Intelligent TemperatureControl System,Automatic Protection Of Overheating And Overheating
X-axis Operating Angle:
540°(16bit)Linear Correction
Y-axis Operating Angle:
270°(16bit)Linear Correction
Strobe:
FlashRate1-25Hz
Dimmer:
0-100%Linear Dimming
IP Protection Level:
Indoor lP20
LED Zoom
400W

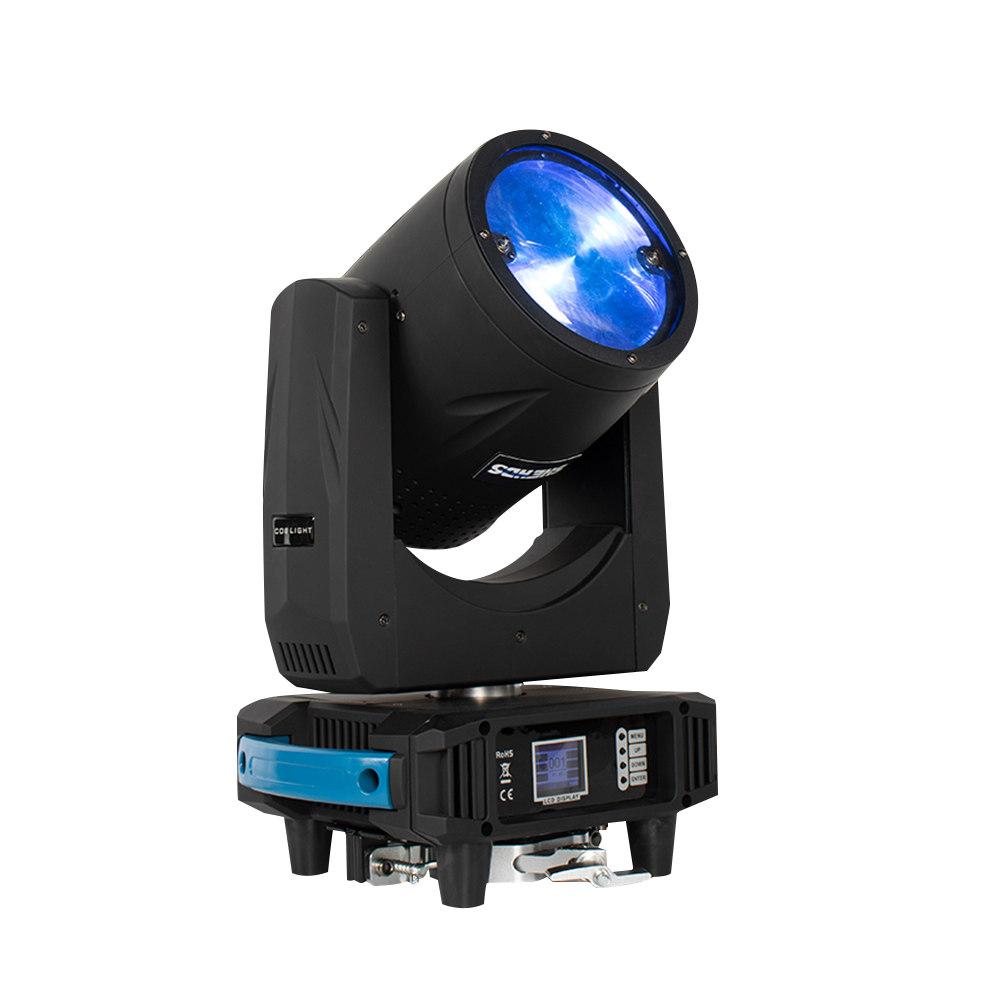

COB Moving Head Lighting
High brightness lamp bead
Dyeing uniformity
Points in control function
Features and Usage Scenarios
CTO linear colour changing / Steel Tube Radiator / Strobe Effect
Clear Projection / Rapid heat dissipation / Sturdy Sockets
Patty / Bar / Wedding / Concert
Size & Dimension
Size:29cm*22.5cm*48cm
Vertical270° Horizontal 540°
Weight:10.75kg
Color Changing Principle
CTO linear colour changing
The color palette has four color bases
Beam Angle
5-50 Degrees
Beam angle can be adjusted electrically
Lighting Effect
A variety of beautiful light colors and lighting effects can bring more convenience to your use
Lamp holder details
High brightness lamp bead
Control Parts
Strong Material / Exquisite Structure Double / DMX Plugs 3-Pin DMX in/out+5-Pin DMX in/out
Heat Dissipation
Steel Tube Radiator Accelerating heat dissipation Improve lamp bead life
Light Hook
Steel Tube Radiator Accelerating heat dissipation Improve lamp bead life
Packing List
Each process undergoes strict verificationEvery part is carefully selected
Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service,
please consult customer service for details!
