Technical Parameter
Electrical Specification and Connections
Power supply :
350W+12V+36V Electronic auto-ranging
Input voltage range :
100-240 V, 50/60 Hz
Working power:
280W
Source
Light source type
7*40W LED RGBW/RGBL/RGBLAC
RGBW Colour temperature
8000±500 K
RGBL Colour temperature
3500±500 K
RGBLAC Colour temperature
14000±500 K
RGBW CRI
W/75.2 RGBW/61.9
RGBL CRI
L/55.5 RGBL/70.1
RGBLAC CRI
RGBLAC/63
RGBW Illuminance
127000lux @ 1m35500lux @ 3m13500 lux @ 5m
RGBL Illuminance
221000lux @ 1m39200lux @ 3m14200 lux @ 5m
RGBLAC Illuminance
100300lux @ 1m26370lux @ 3m9150 lux @ 5m
Life expectancy
min. 20000 hours
Optical system
Beam angle
5°-40°
Control and programming
Protocols
DMX512, RDM
RGBW/L DMX Channel Mode
24CH；54CH
RGBLAC DMX Channel Mode
26;70CH
Feature
Auto mode ,Sound mode,Manual programming scenarios
Mechanical specification
Housing
High temperature resistant and flame retardant housing & magnesium alloy

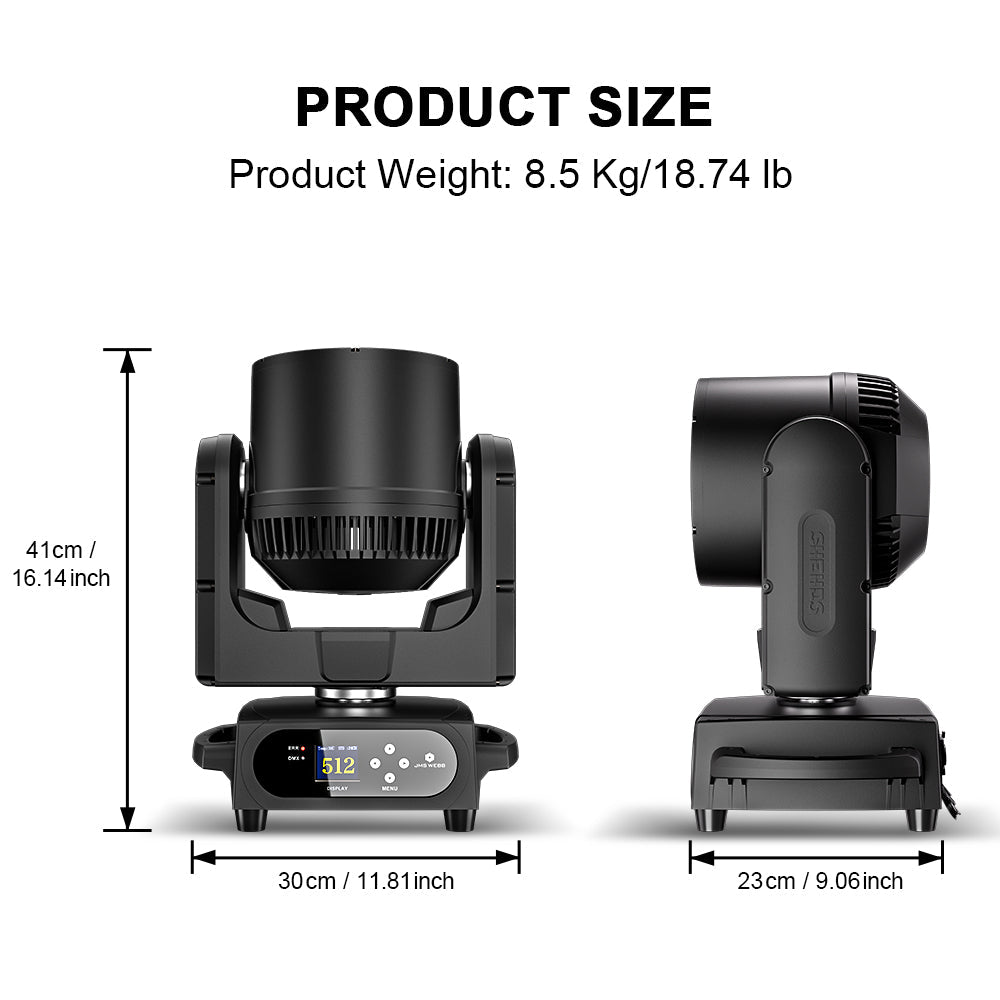

Product size
30*23*41cm
Product weight
8.5kg
Package size
49.5*28*35cm
Package weight
10.55 kg
Operating temperature
-20°-45°
Ingress protection rating
IP65
Noise
Static (light on): 33 dBDynamic (light in motion): 55.5 dB

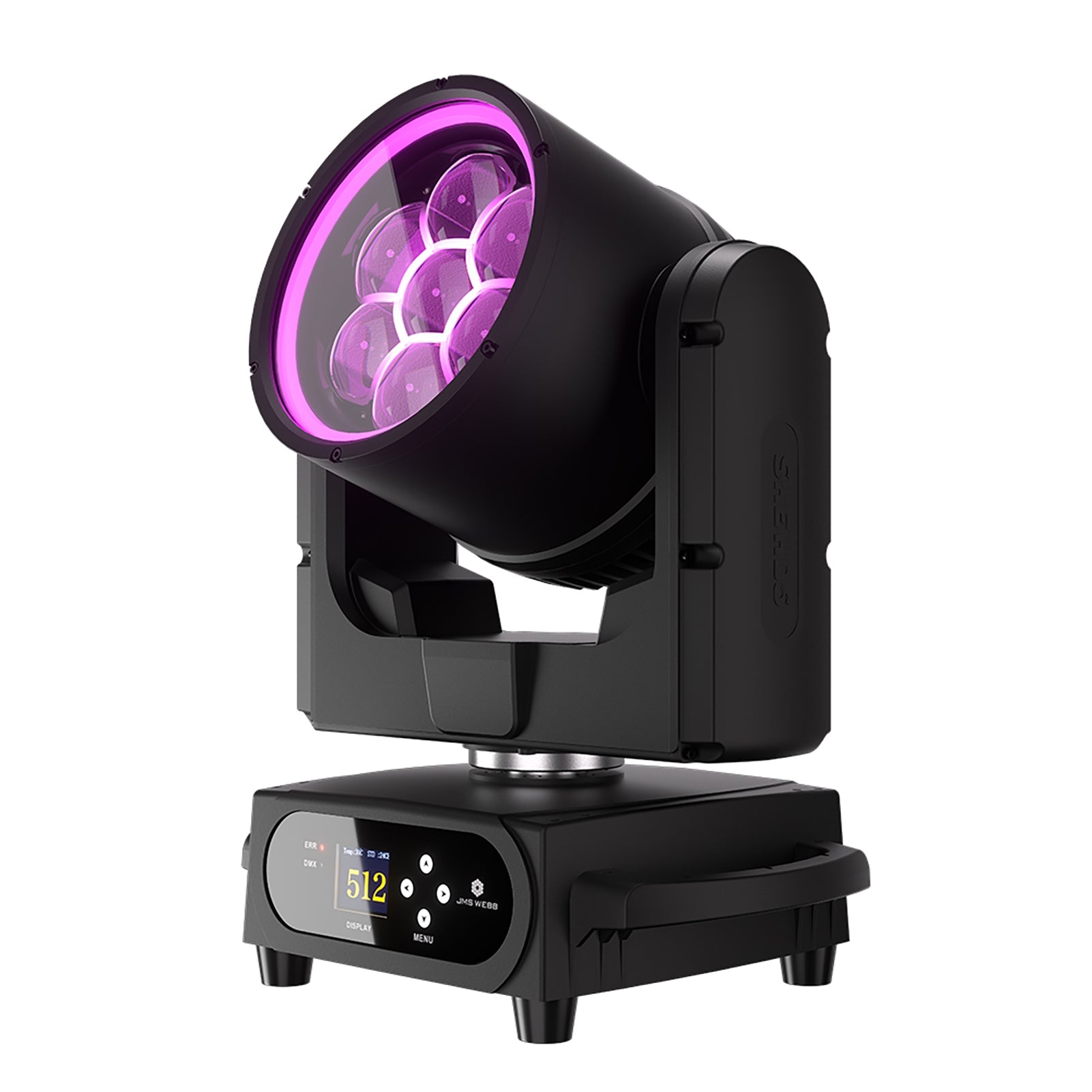

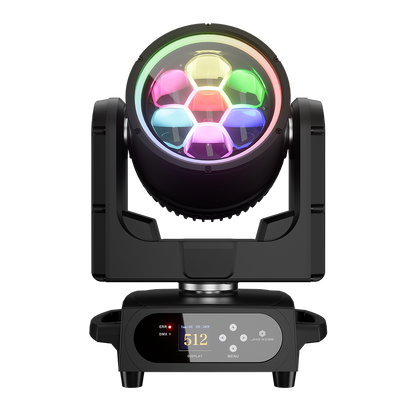

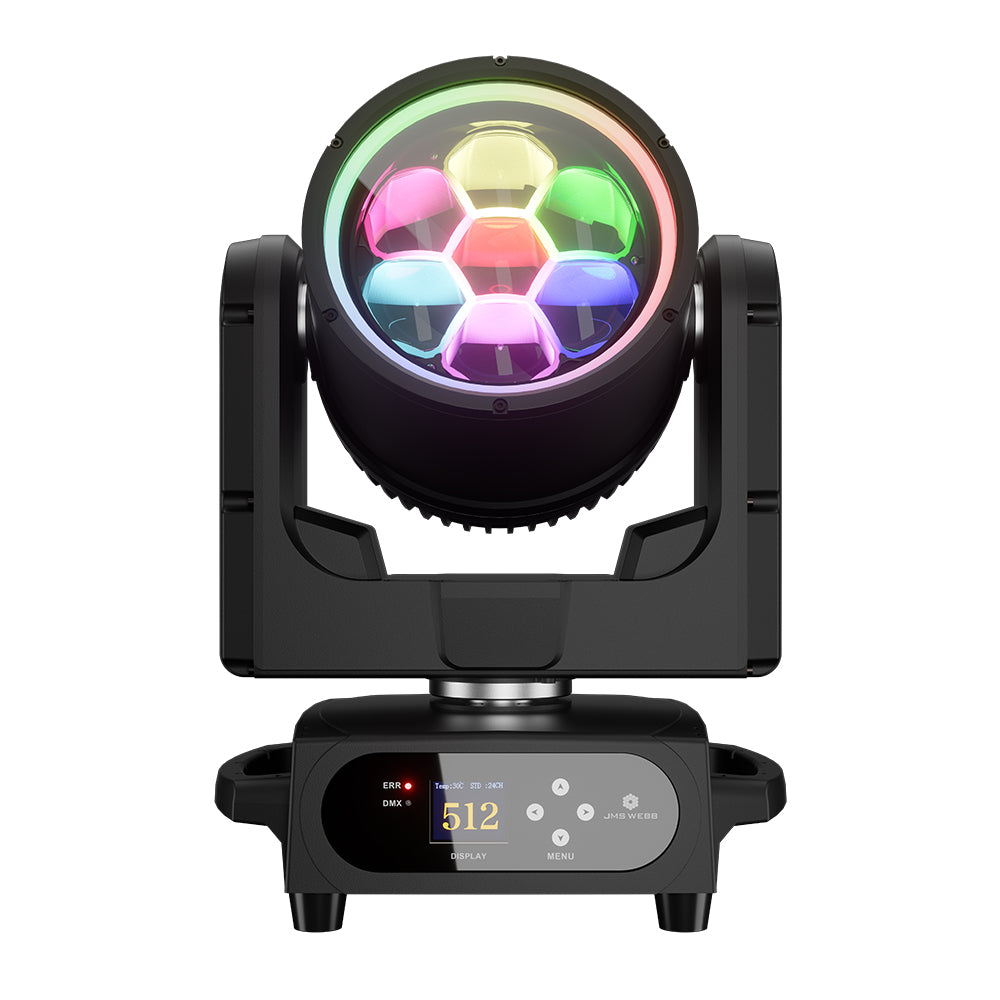

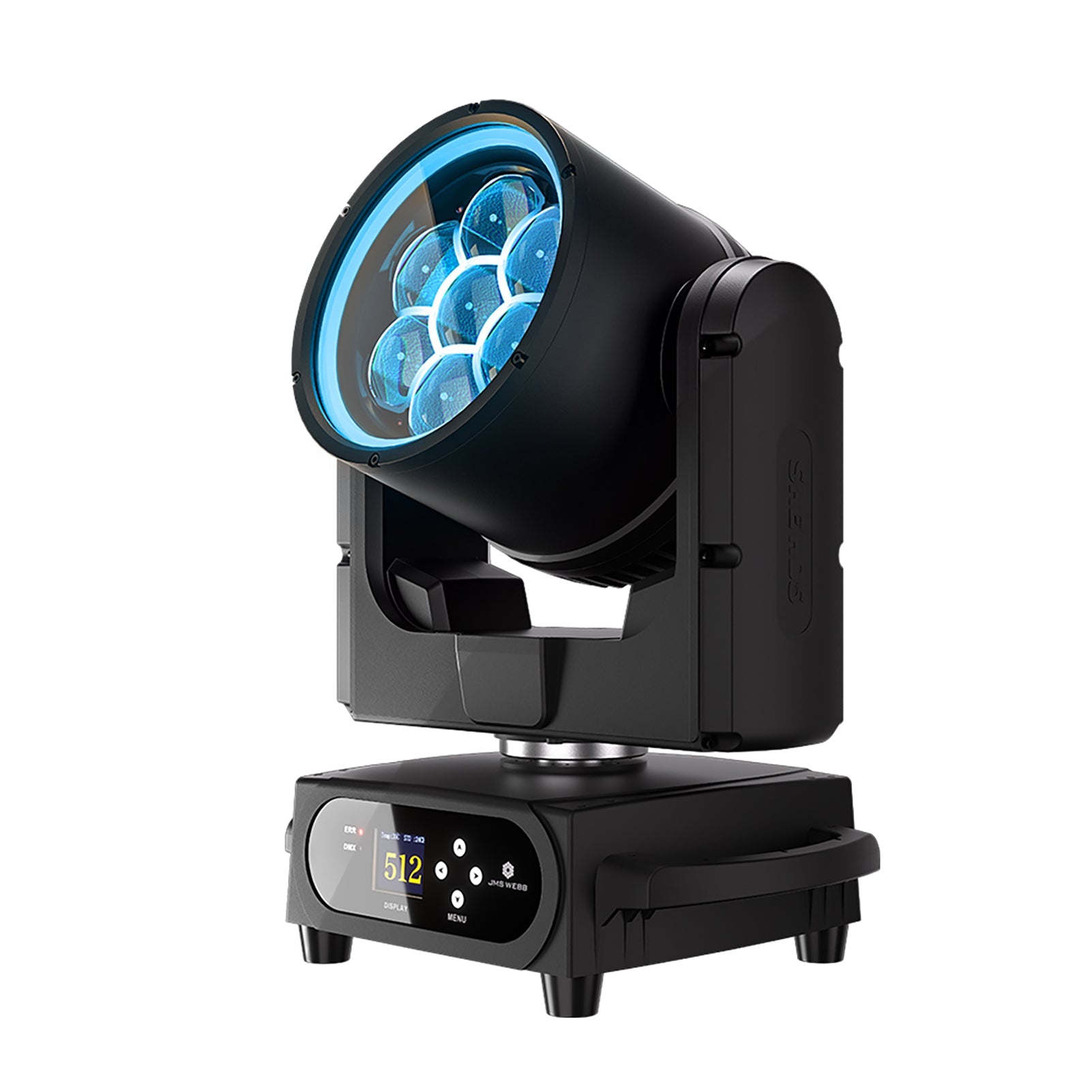

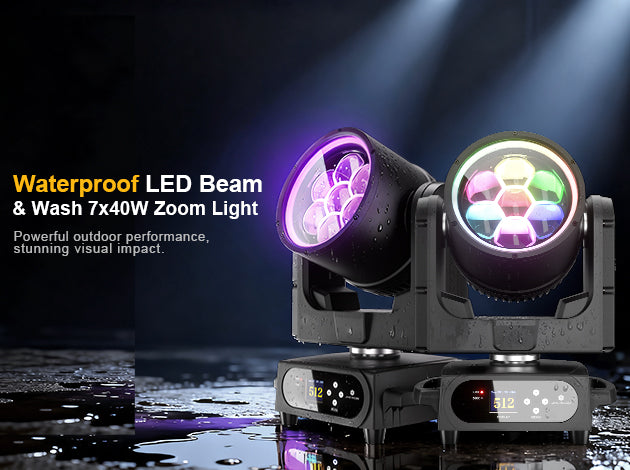

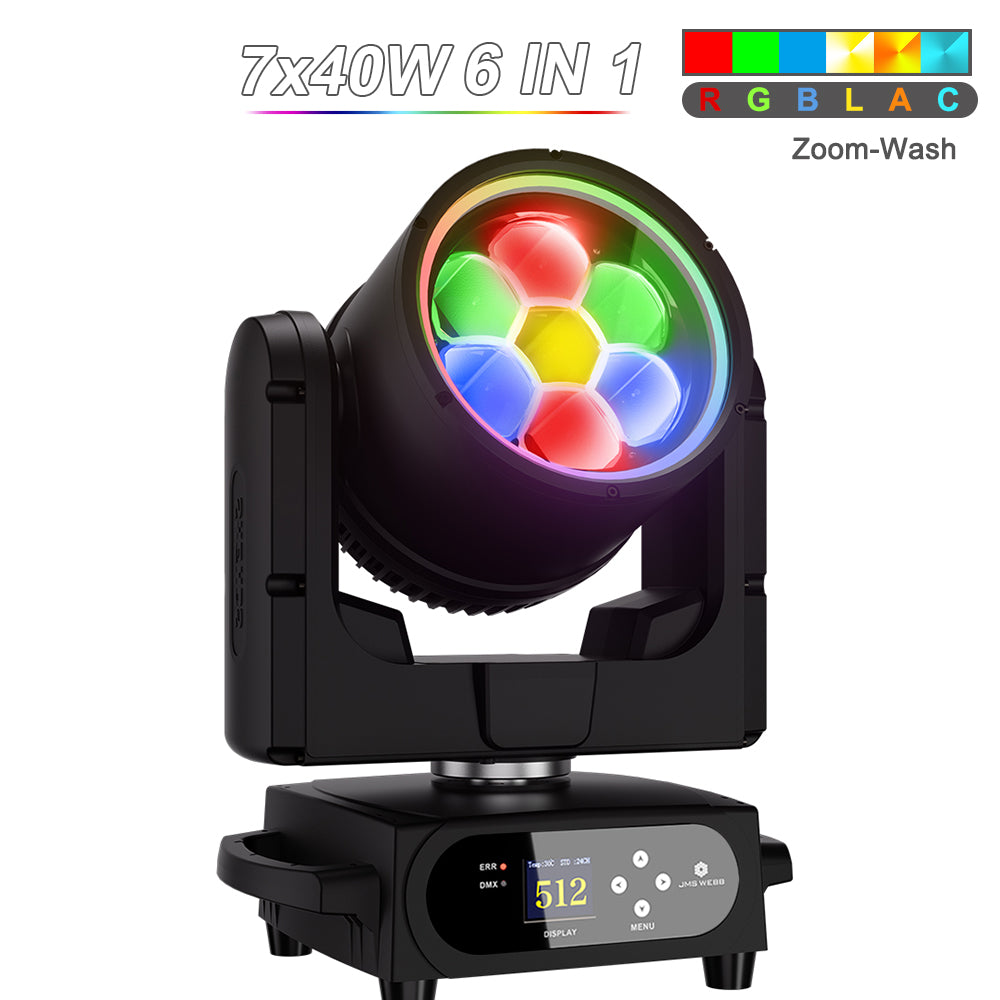

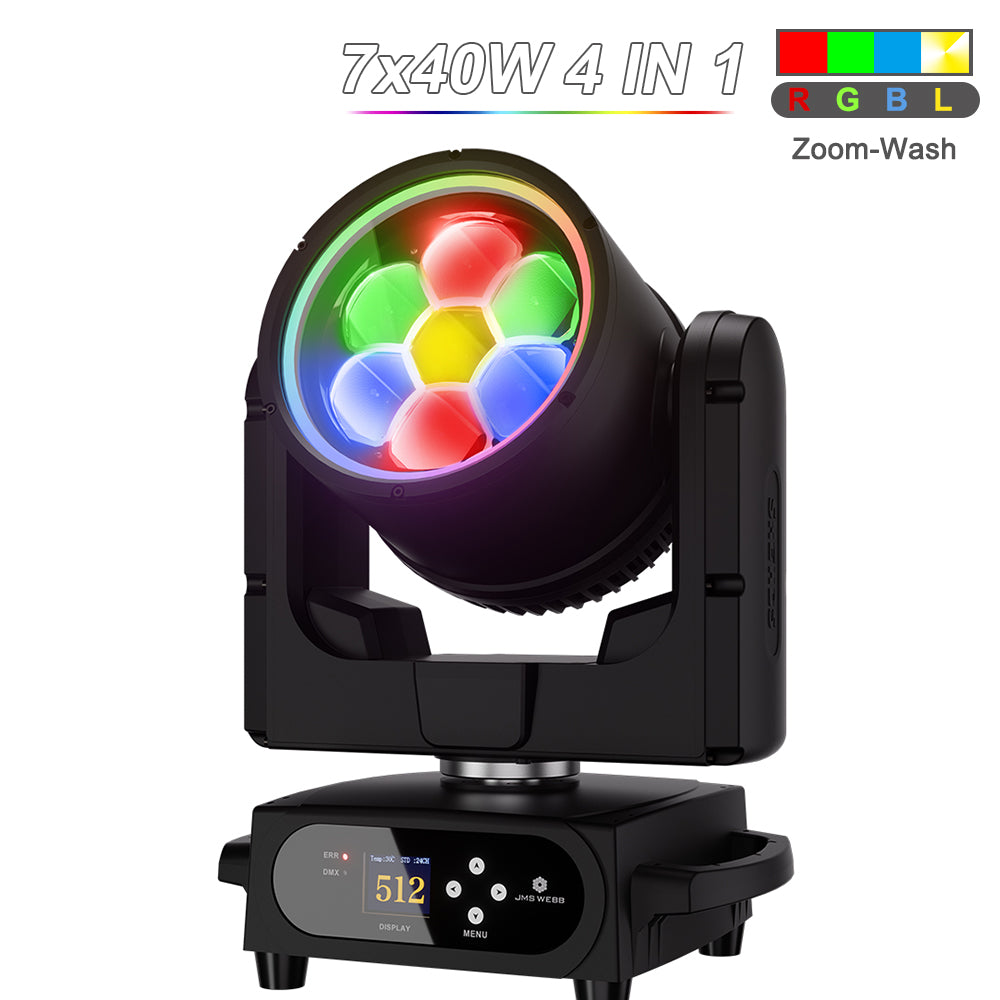

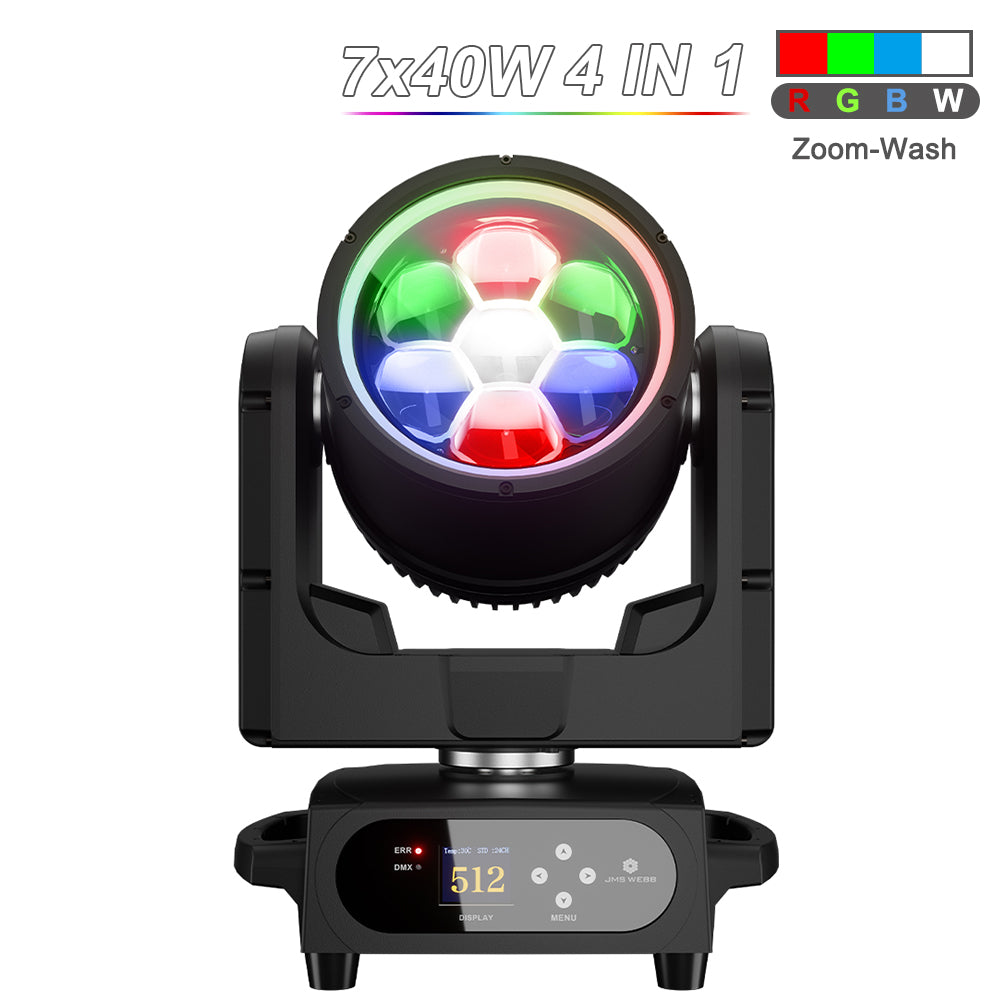

Waterproof LED Beam & Wash 7x40W Zoom Light
Powerful outdoor performance, stunning visual impact.

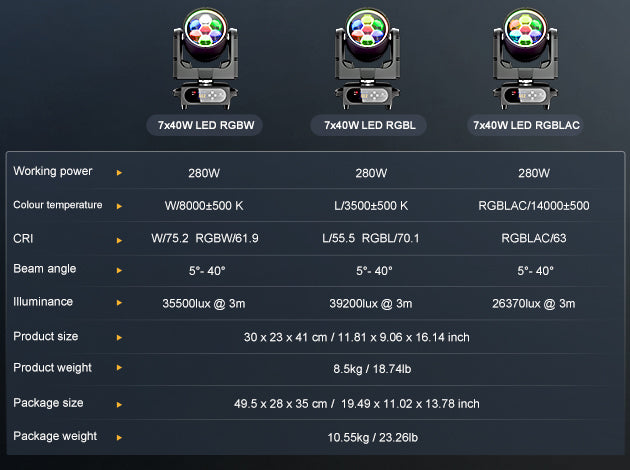

Parameter Comparison
RGBW / RGBL / RGBLAC Options
Same design, different color systems — tailored for every creative lighting setup.
Pro Creators, Real Shows
See how creators light up real sets with SHEHDS, highlights from reviews, shoots, and live performances.

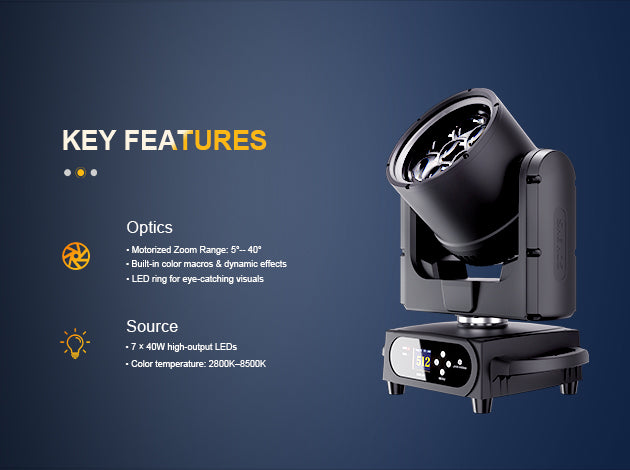

KEY FEATURES |
Optics |
• Motorized Zoom Range: 5°-40°
• Built-in color macros & dynamic effects
• LED ring for eye-catching visuals
Source |
- 7 × 40W high-output LEDs
- Color temperature: 2800K–8500K
Color Options That Match Your Visio
RGBW, RGBL, and RGBLAC versions deliver versatile color expression, from natural warmth to dynamic stage energy.
Vivid Color Display
Delivering high-output beams and richly saturated hues, showcasing deeper reds, brighter greens, and a wide 2800K–8500K color temperature range.
Power for the Entire Stage
7x40W beam+wash zoom light delivers powerful, dynamic lighting effects, enabling more creative and expressive stage designs for any live performance.

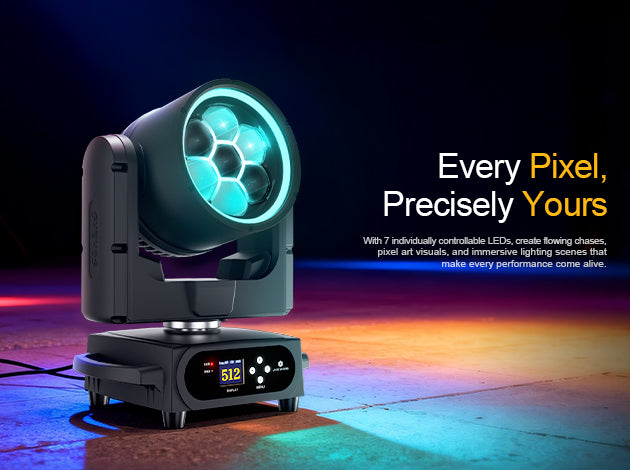

Every Pixel, Precisely Yours
With 7 individually controllable LEDs, create flowing chases, pixel art visuals, and immersive lighting scenes that make every performance come alive.
Light That Paints the Stage
With vivid RGB mixing, shift seamlessly from tight beams to smooth color washes, adding energy and emotion to every moment.

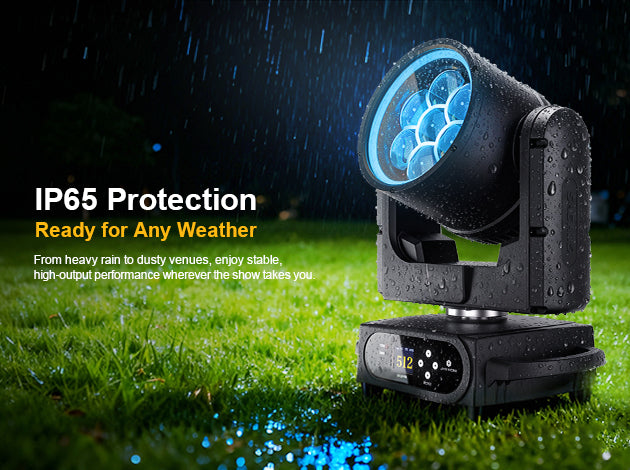

IP65 Protection
Ready for Any Weather
From heavy rain to dusty venues, enjoy stable, high-output performance wherever the show takes you.

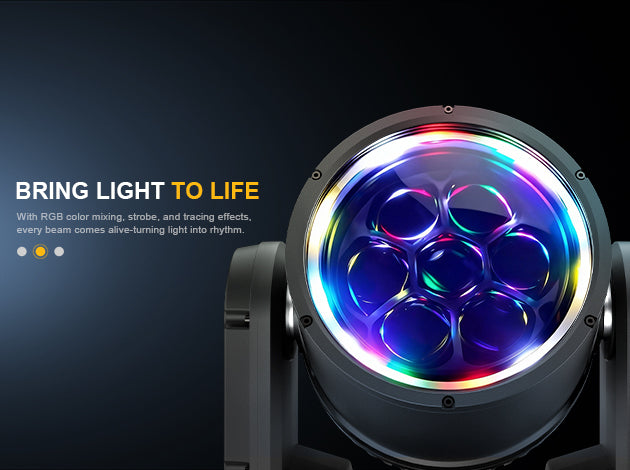

Bring Light to Life
With RGB color mixing, strobe, and tracing effects, every beam comes alive-turning light into rhythm.
One Light, Endless Possibilities
From weddings and birthdays to concerts and clubs, this LED moving head brings vibrant, dynamic lighting to any event, creating unforgettable experiences.

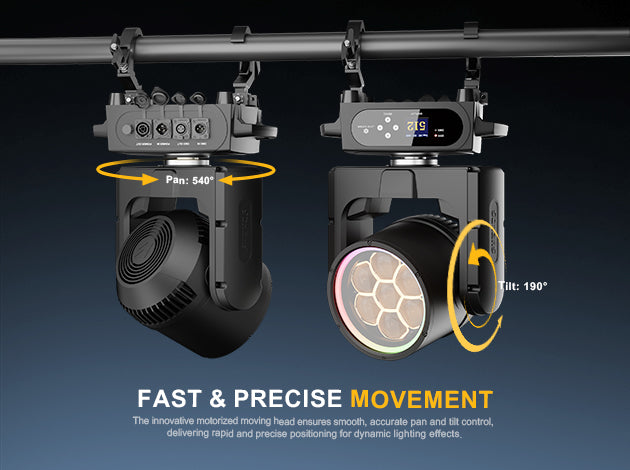

Fast & Precise Movement
The innovative motorized moving head ensures smooth, accurate pan and tilt control, delivering rapid and precise positioning for dynamic lighting effects.
Advanced Cooling, Whisper-Quiet
Engineered with an efficient airflow design and optimized heat dissipation system, ensuring stable performance with ultra-low noise even during long shows.

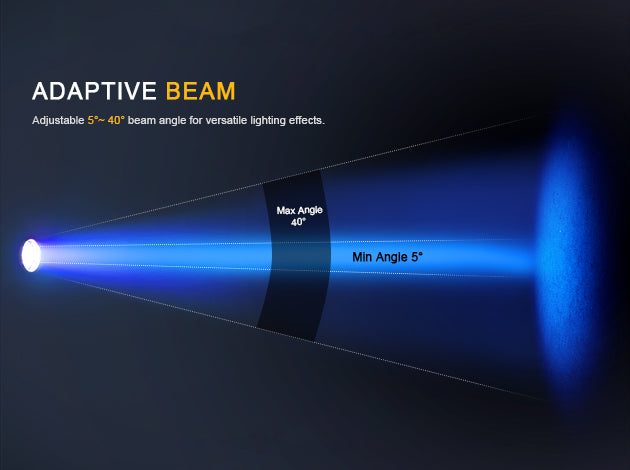

Adaptive Beam
The 5°–40° motorized zoom delivers everything from razor-sharp beams to wide, even washes, seamlessly adapting to any atmosphere or stage design.

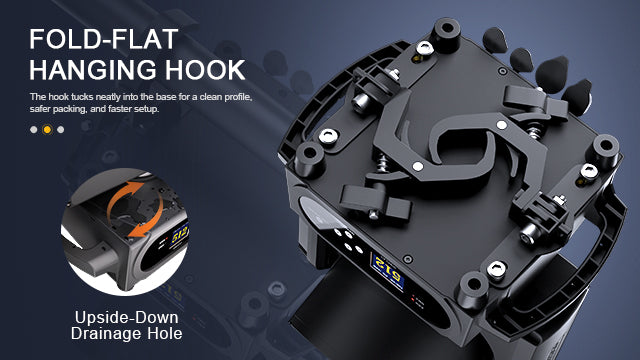

Fold-Flat Hanging Hook
The hook tucks neatly into the base for a clean profile, safer packing, and faster setup.

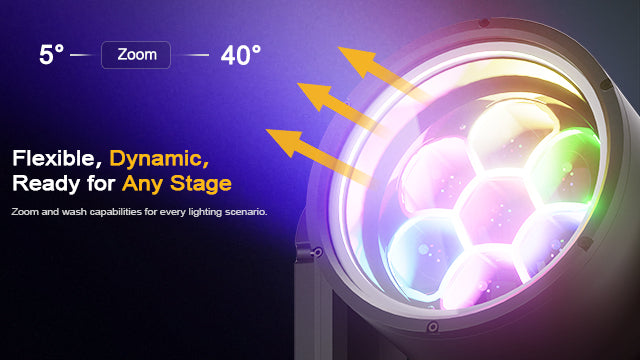

Flexible, Dynamic, Ready for Any Stage
Zoom and wash capabilities for every lighting scenario.
Compact Power, Anywhere You Go
Small in size but big in performance, this versatile moving head delivers professional-quality lighting for any venue or event.
Precision in Every Detail
Sleek, robust, and professionally crafted.

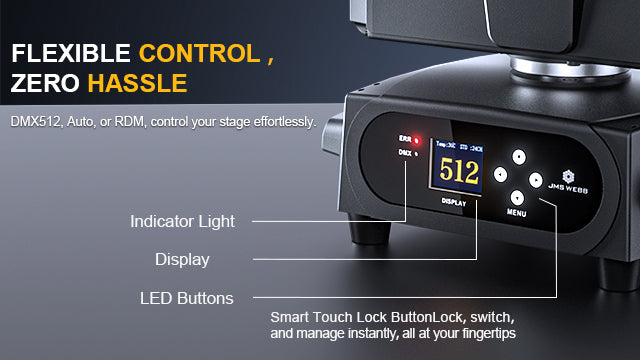

Flexible Control, Zero Hassle
DMX512, Auto, or RDM, control your stage effortlessly.

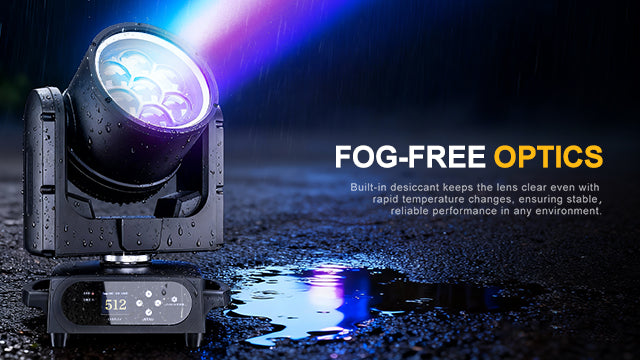

Fog-Free Optics
Built-in desiccant keeps the lens clear even with rapid temperature changes, ensuring stable, reliable performance in any environment.

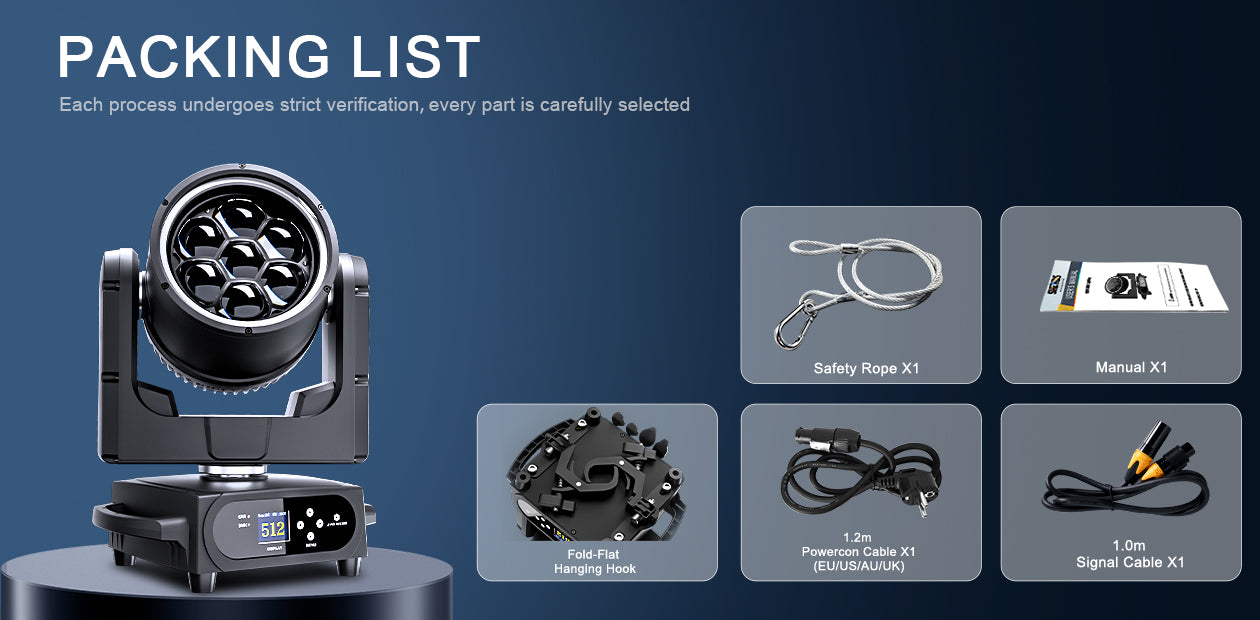

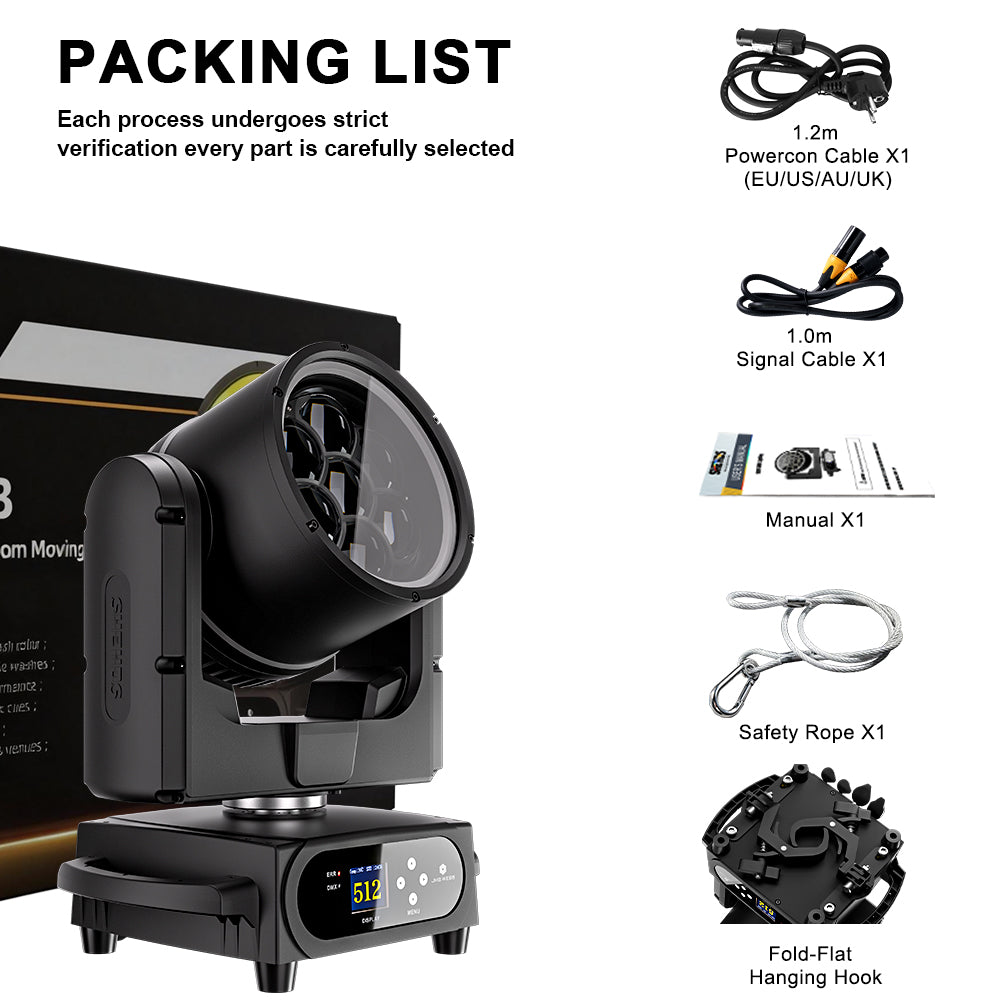

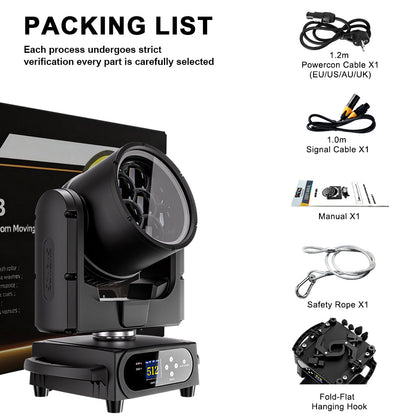

Packing List
Each process undergoes strict verificationEvery part is carefully selected

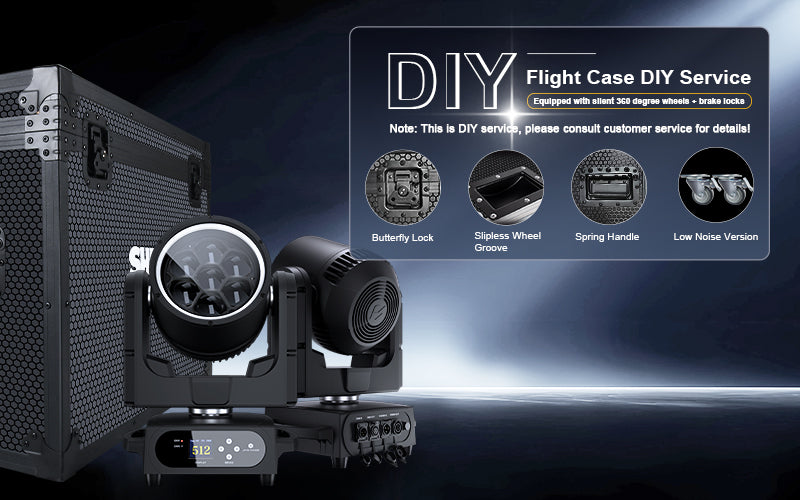

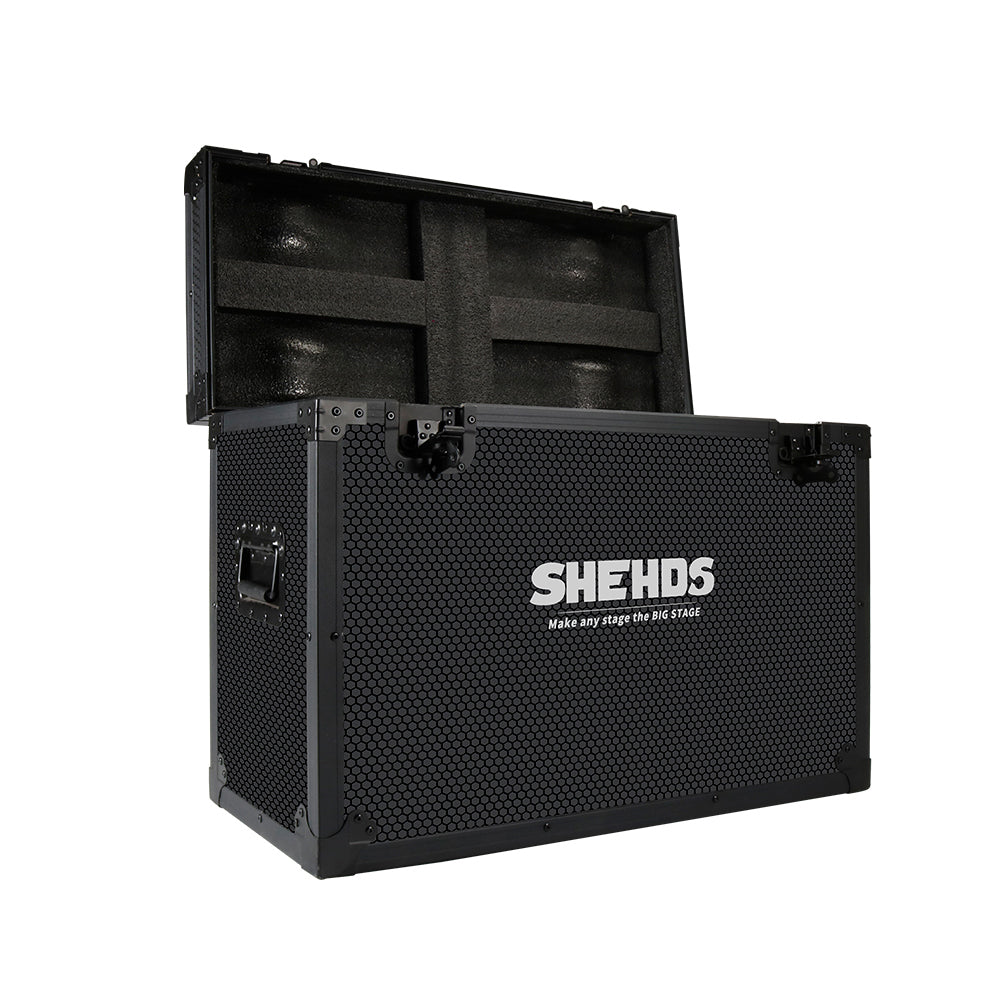

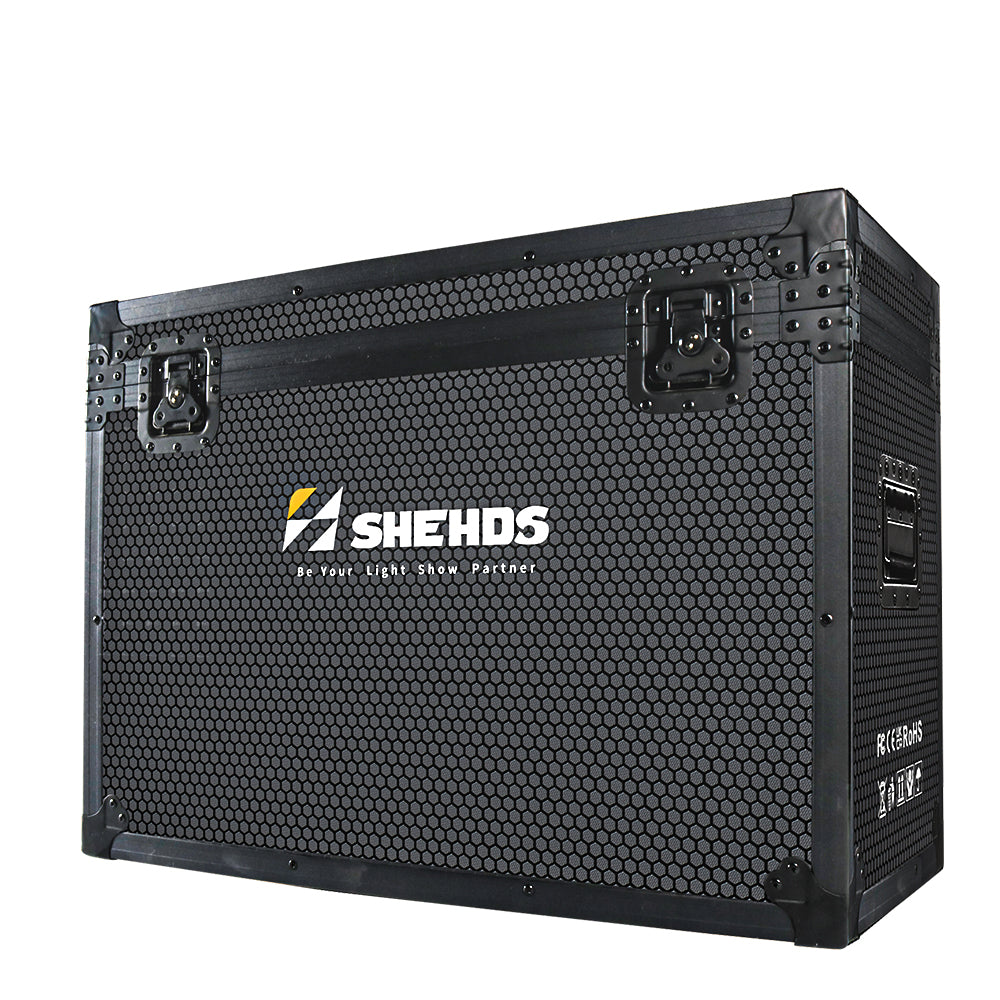

Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service,
please consult customer service for details!
