Technical Parameter
Electrical Specification and Connections
19x15W Power supply:
350W-24V-12V
19x20&25W Power supply:
600W-24V-12V
Input voltage range:
100-240 V, 50/60 Hz
19x15W working power:
285W
19x20W working power:
560W
19X25W working power:
545W
Source
Light source type1
19*15W LED RGBW
Light source type2

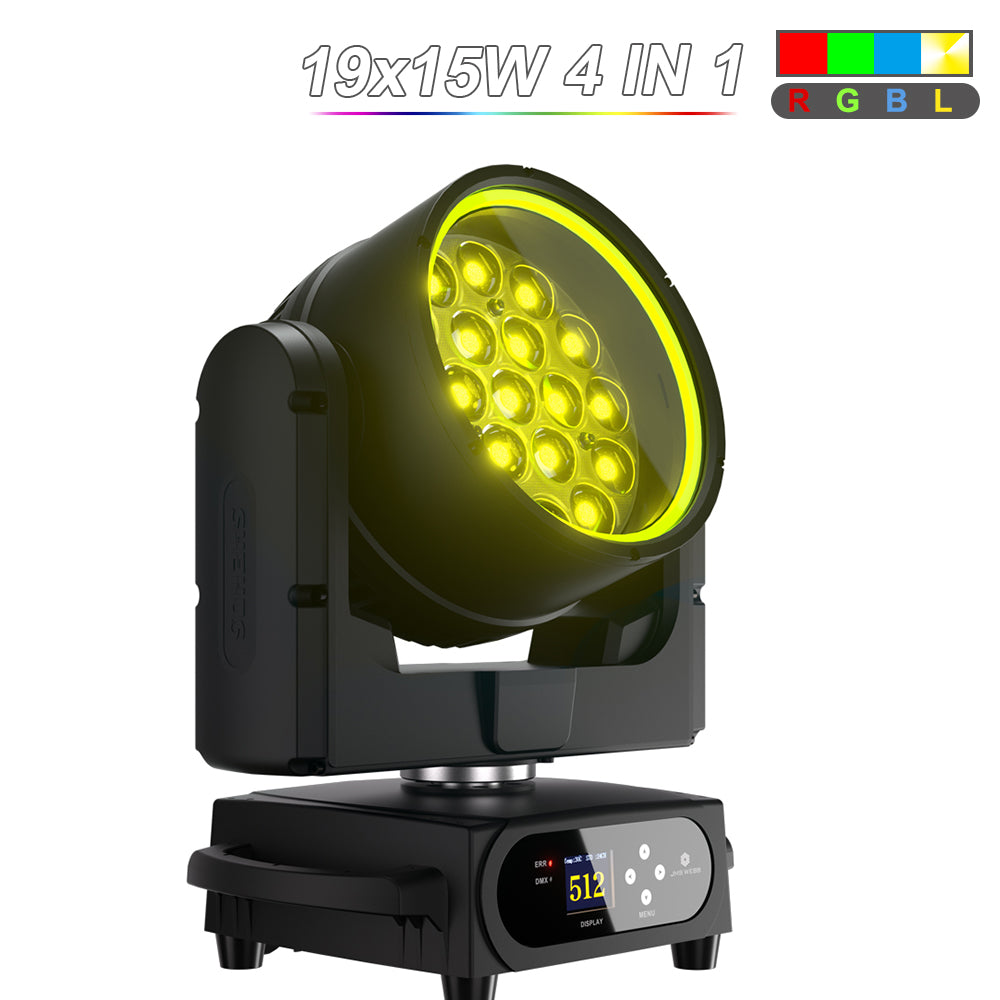

19*15W LED RGBL
Light source type3

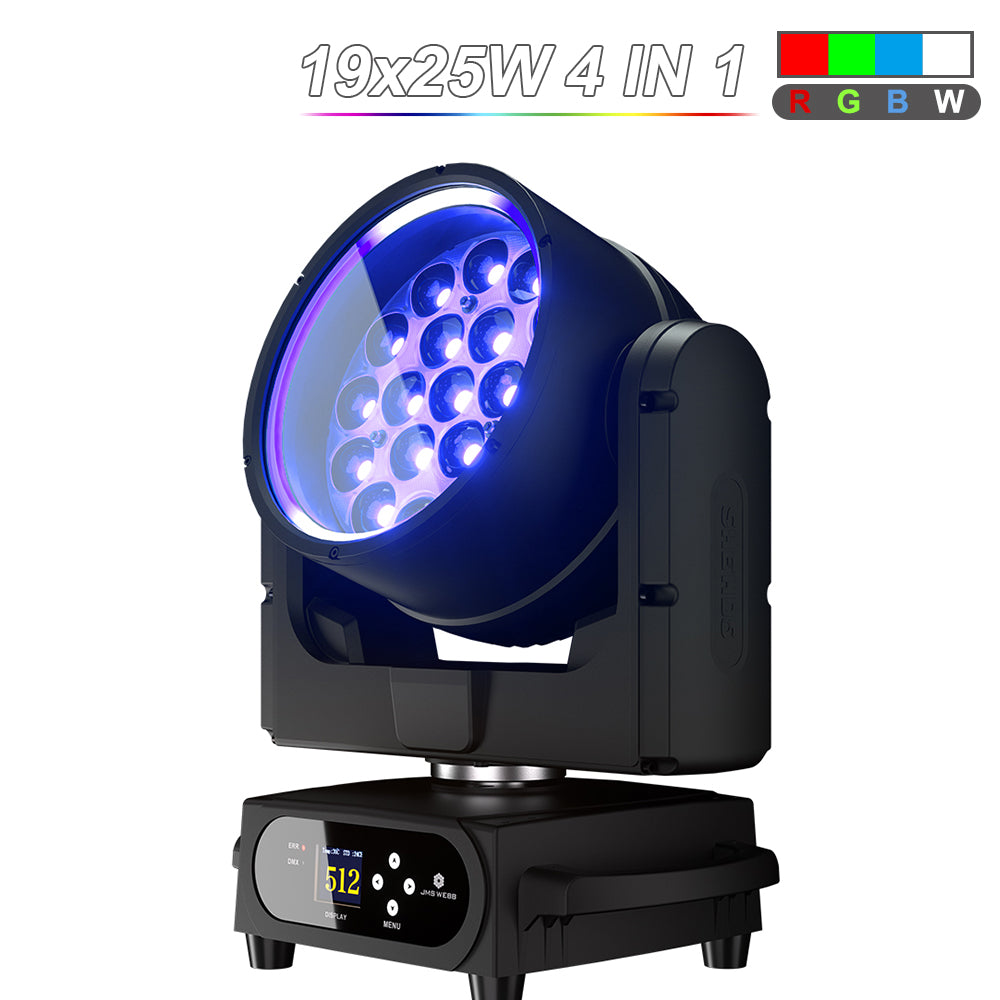

19*25W LED RGBW
Light source type4

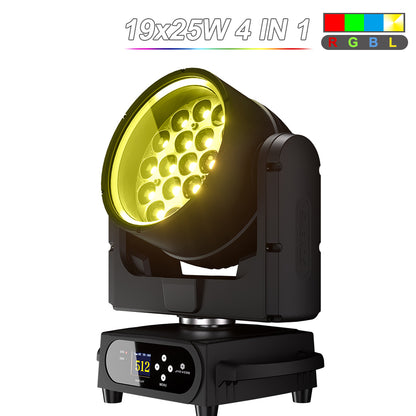

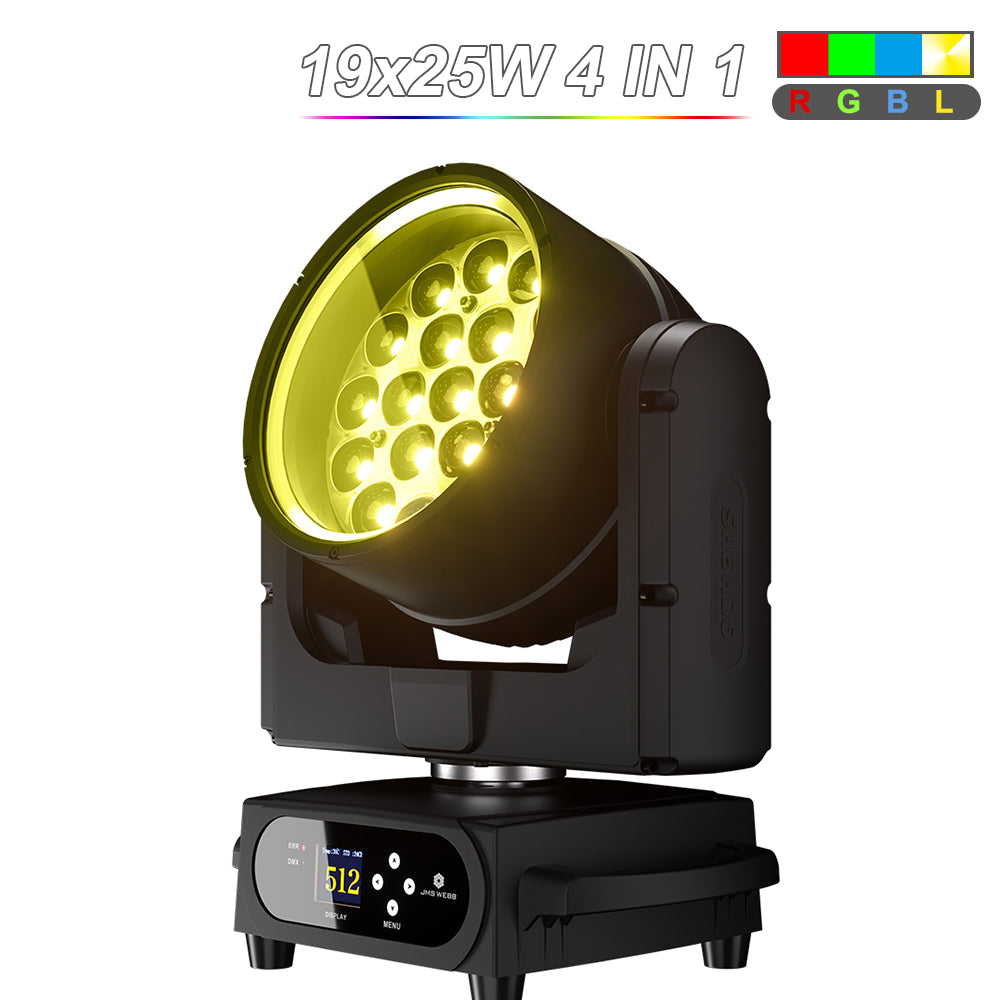

19*25W LED RGBL
Light source type5

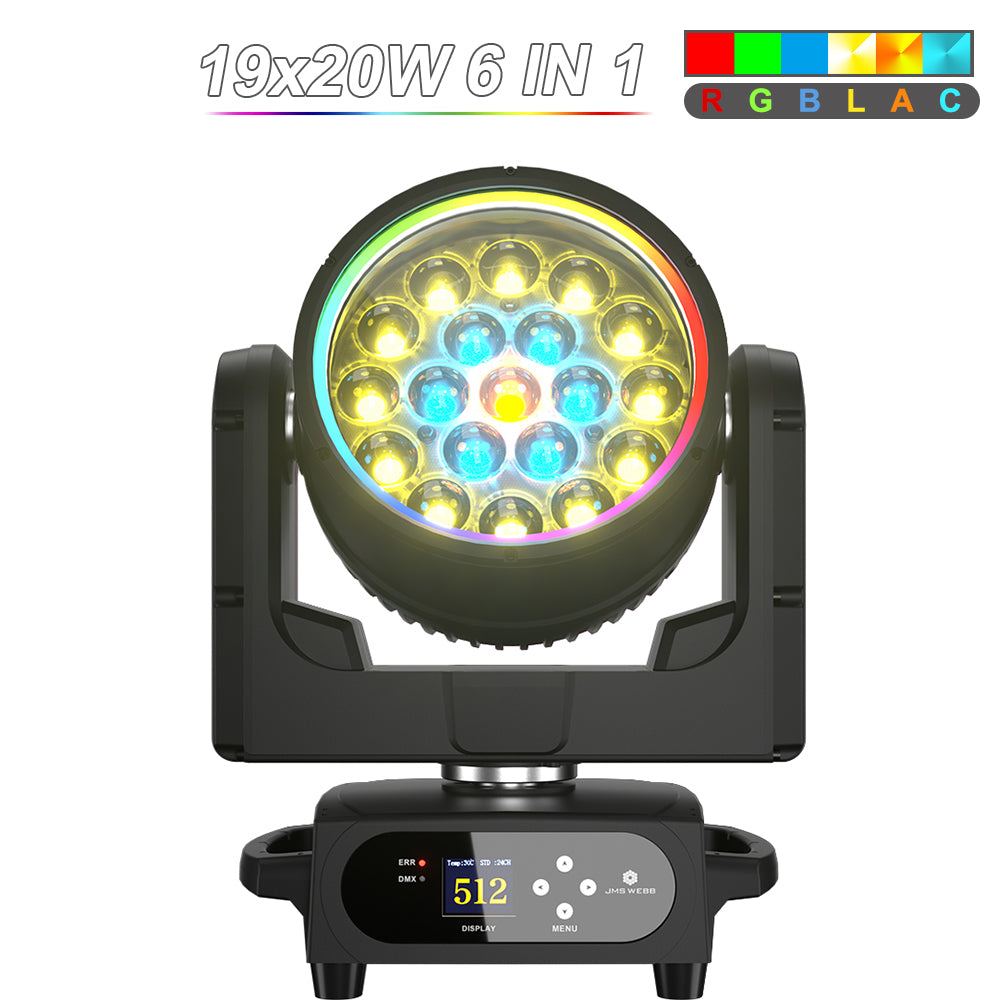

19*20W LED RGBLAC
19x15W RGBW Colour temperature output:
W/7500±500 K
19x15W RGBL Colour temperature output:
L/4000±500 K
19X25W RGBW Colour temperature output:
W/8000±500 K
19x25W RGBL Colour temperature output:
L/4000±500 K
19x15W RGBLAC Colour temperature output:
L/4213K
19X15W RGBW CRI
W/72.6 RGBW/63.5
19X15W RGBL CRI
L/55.4
19X25W RGBW CRI
W/68.4 RGBW/86.5
19X25W RGBL CRI
L/56 RGBL/76.4
19X20W RGBLAC CRI
L/24.5 RGBLAC/61.2

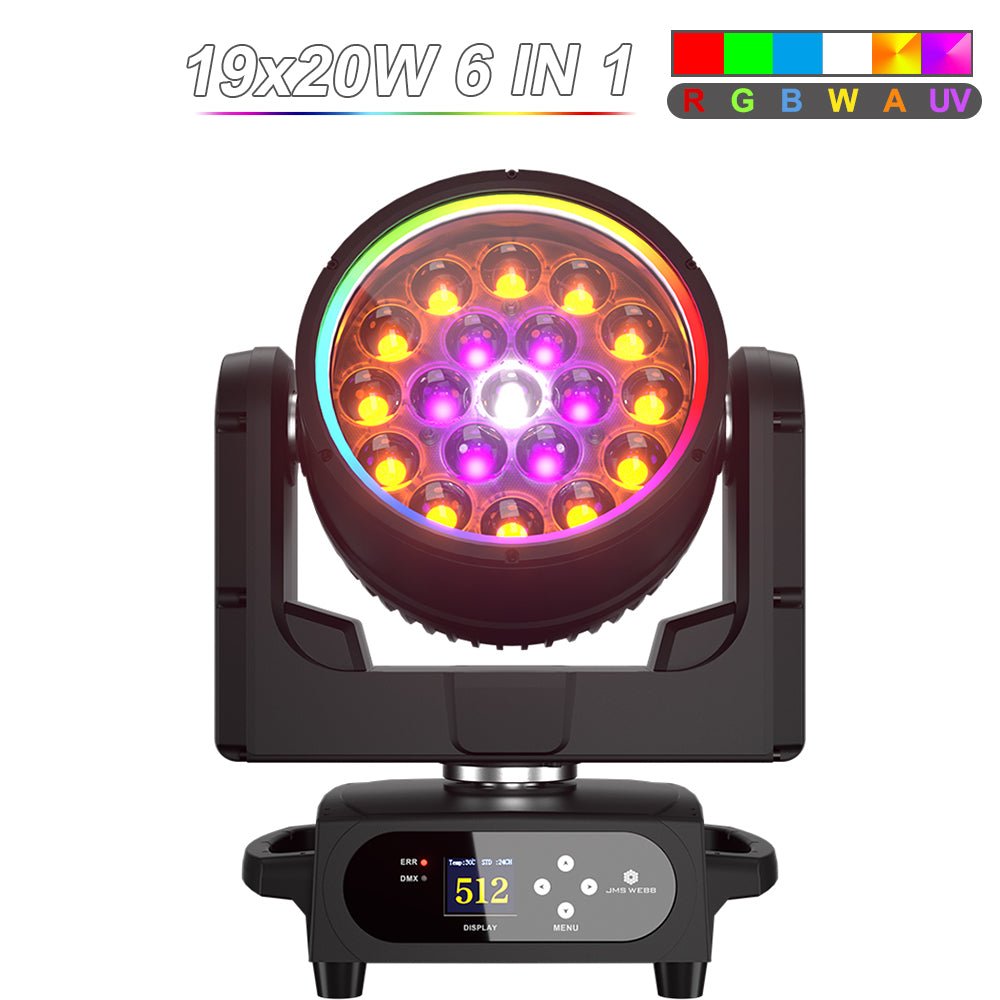

19X20W RGBWAUV CRI
W/64.5 RGBWA+UV/47.6
19X15W RGBW 5m Beam Illuminance:
103000lux @ 1m18600lux @ 3m7400 lux @ 5m
19X15W RGBL 5m Beam Illuminance:
122000lux @ 1m24000lux @ 3m9100 lux @ 5m
19X25W RGBW 5m Beam Illuminance:
164000lux @ 1m29300lux @ 3m12000 lux @ 5m
19X25W RGBL 5m Beam Illuminance:
192000lux @ 1m35500lux @ 3m13200 lux @ 5m
Life expectancy:
min. 20000 hours
Optical system
19X15W RGBW Beam angle:
10°-54°
19X15W RGBL Beam angle:
7°-60°
19X25W RGBW Beam angle:
7.4°-64°
19X25W RGBL Beam angle:
7.8°-63.2°
19X20W RGBLAC Beam angle:
7°-75°
19X20W RGBWAUV Beam angle:
7.6°-76.1°
Control and programming
Protocols:
DMX512,RDM
19X15W&25W DMX Channel Mode：
19 CH;33CH
19X20W RGBLAC & RGBWAUV DMX Channel Mode：
21;41CH
Feature：
Auto mode ,Sound mode,Manual programming scenarios
Mechanical specification
Housing :
High temperature resistant and flame retardant housing & magnesium alloy
PAN & TILT MOVEMENT
Pan: 540° 8bitTilt: 190° 8bit

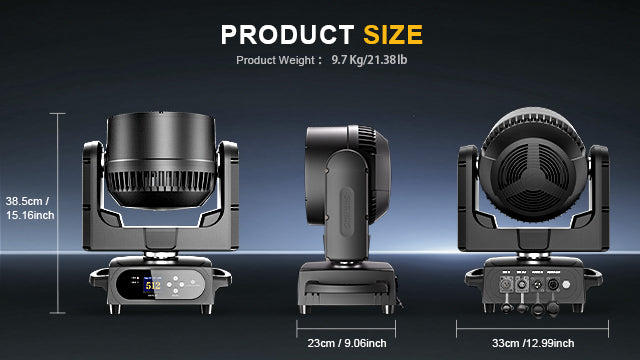

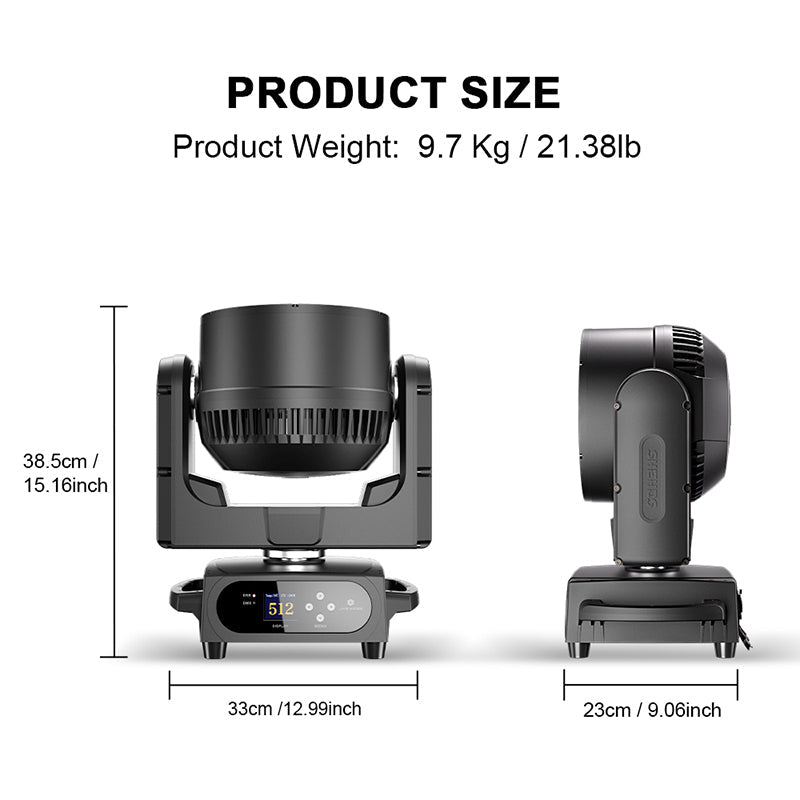

Product size：
33*23*38.5cm
Product weight:
19X15W & 25W 9.7kg
Product weight:
19X20W 9.9kg
Package size:
51*41*31.5cm
Package weight:
19X15W &25W : 12.4kg
Package weight:
19X20W : 12.6kg
Operating temperature:
-20°-45°
Ingress protection rating:
IP65
Noise
Static (light on): 33dBD ; ynamic (light in motion): 52.5dB

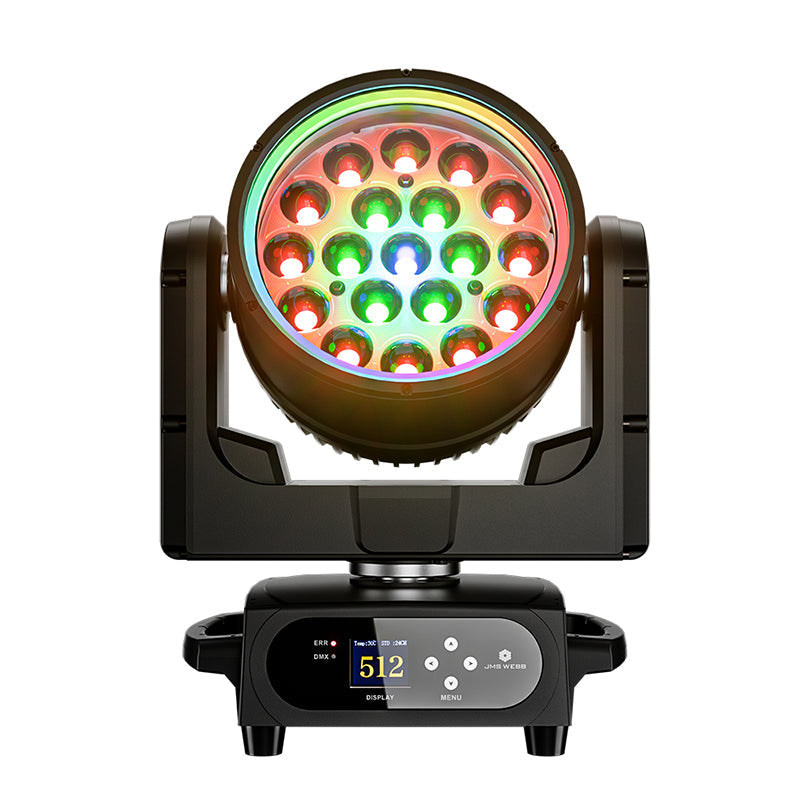

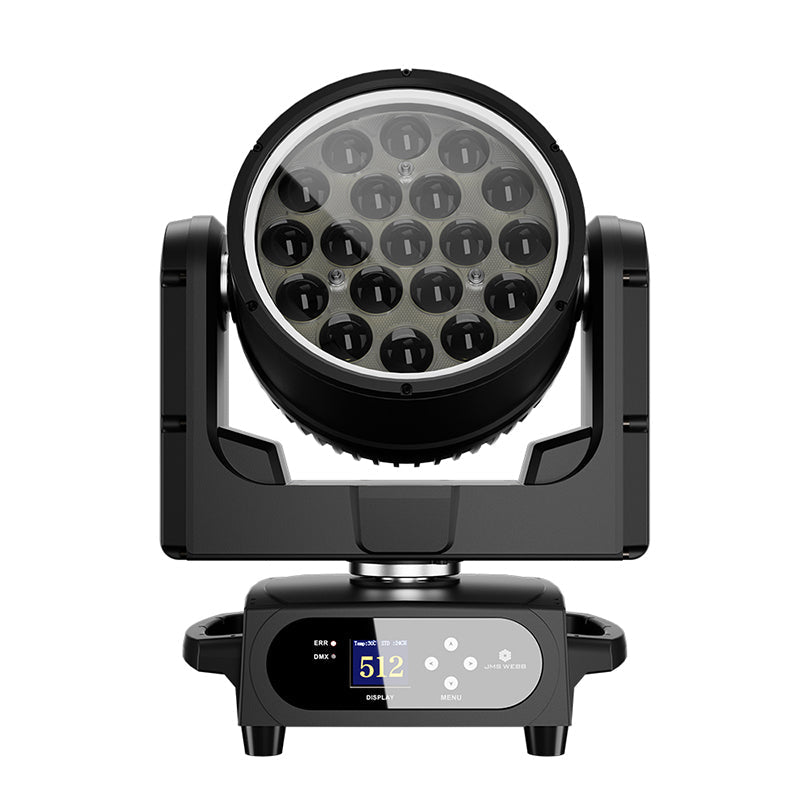

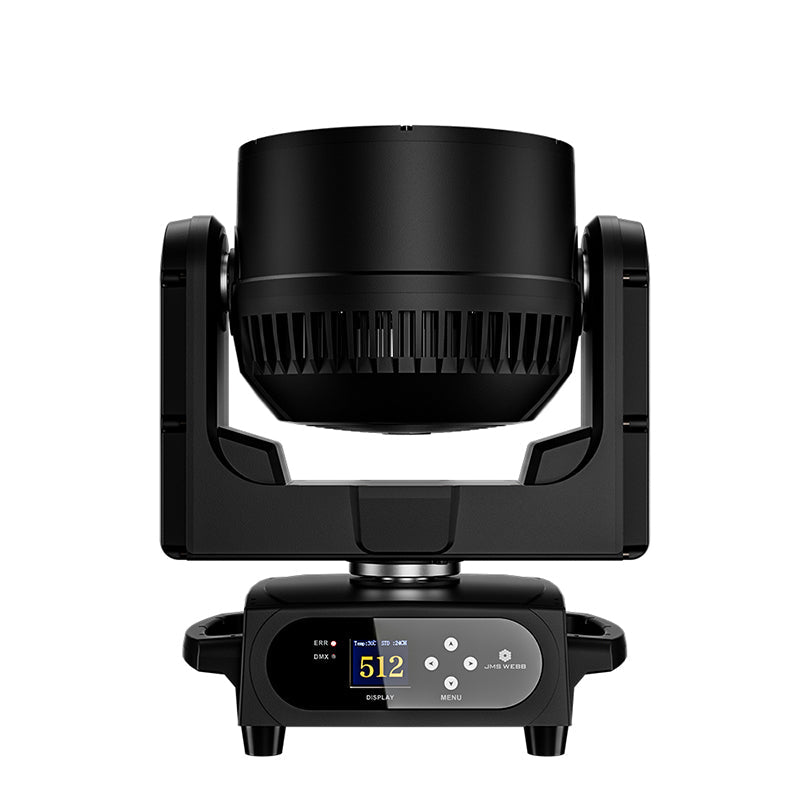

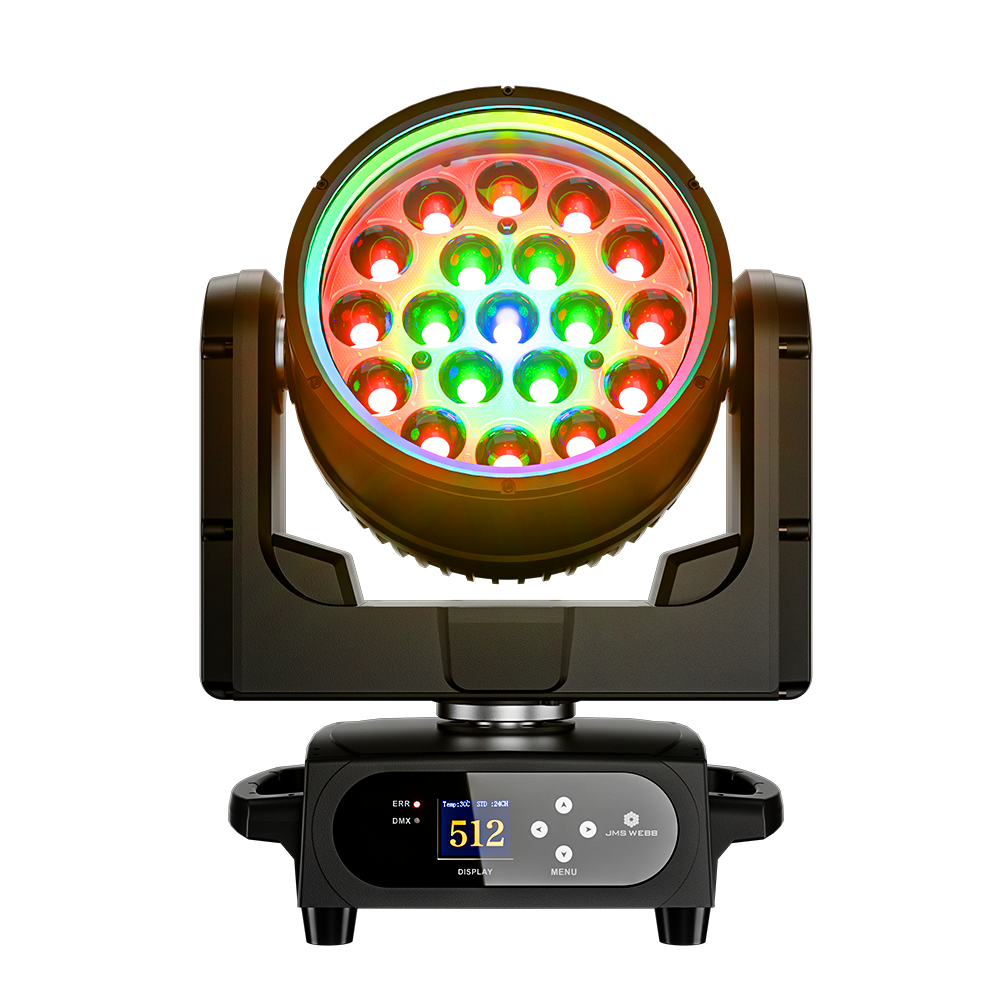

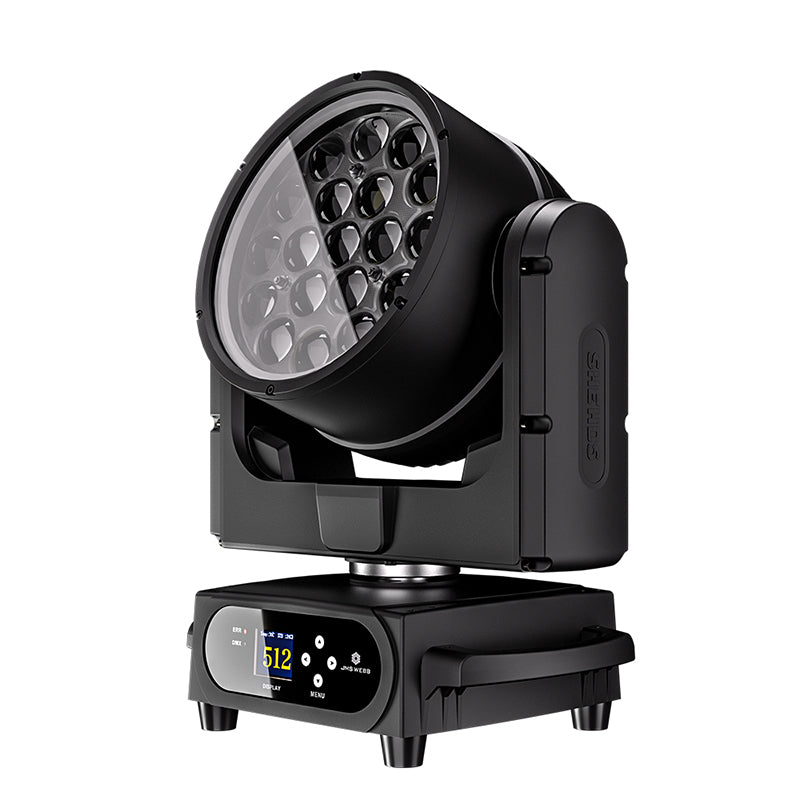

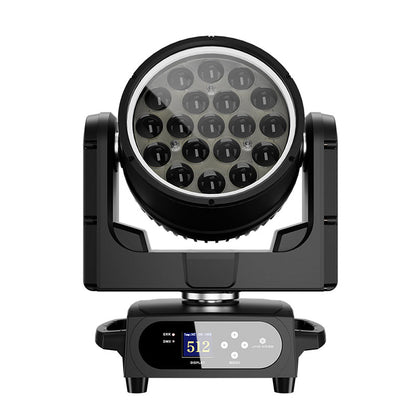

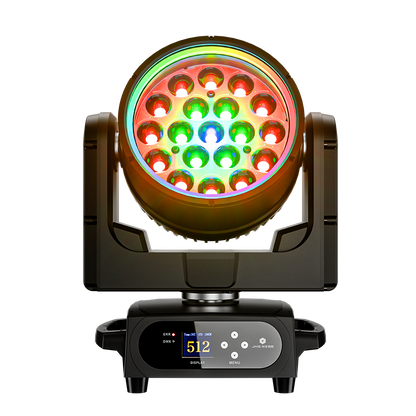

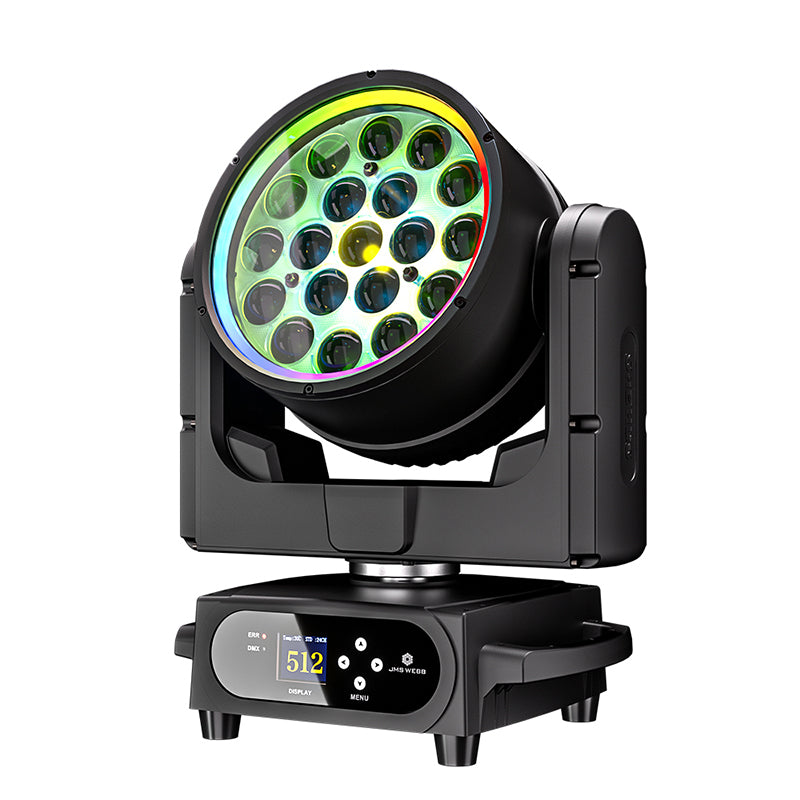

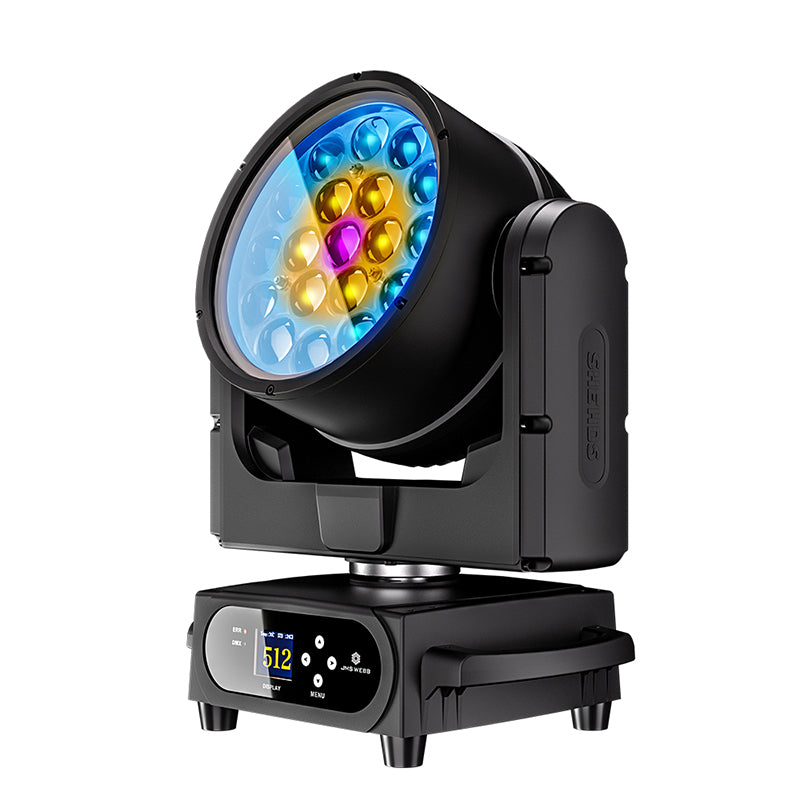

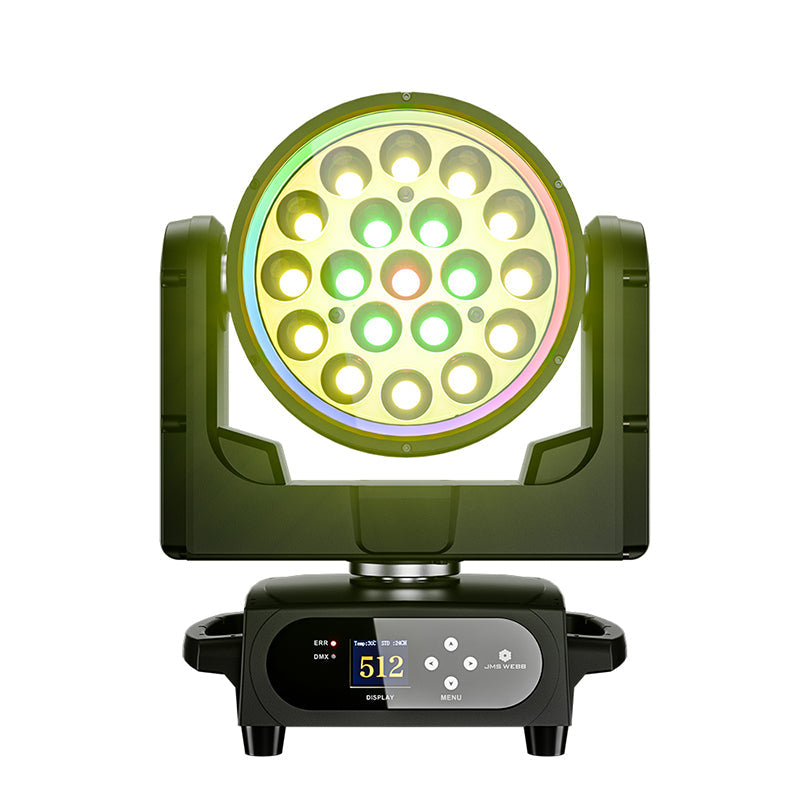

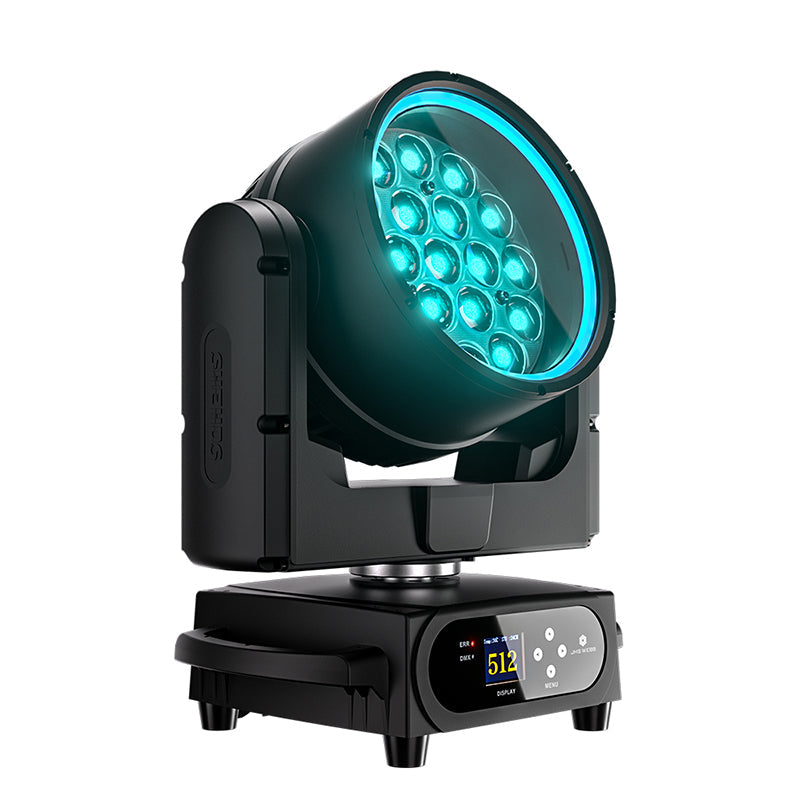

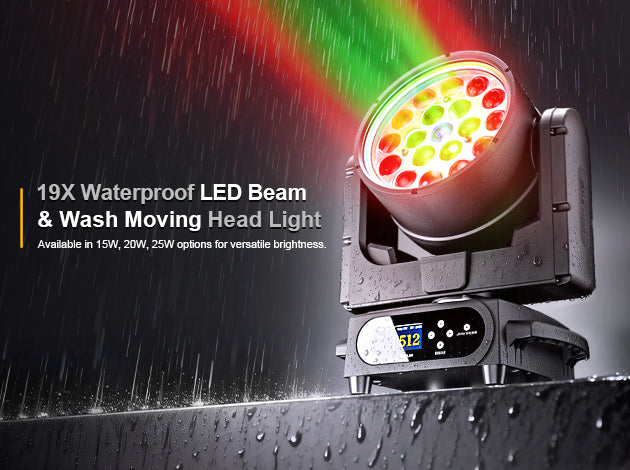

19X Waterproof LED Beam & Wash Moving Head Light
Available in 15W, 18W, 25W options for versatile brightness.

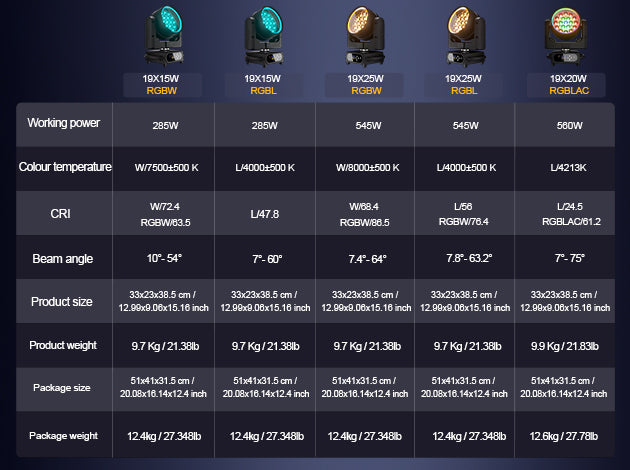

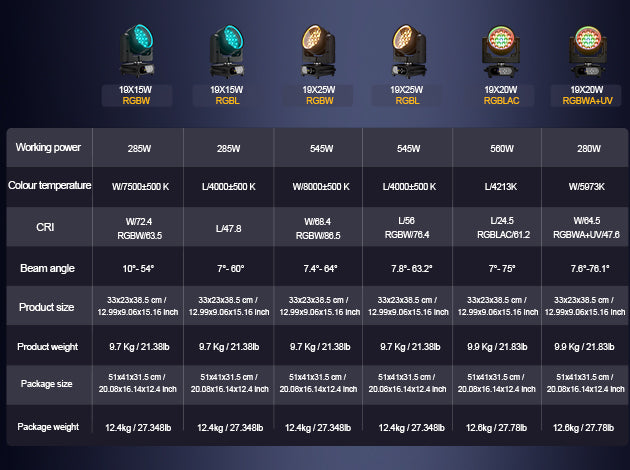

Parameter Comparison
RGBW / RGBL / RGBLAC / RGBWAUV
Different color systems tailored for every creative lighting setup.
Pro Creators, Real Shows
See how creators light up real sets with SHEHDS, highlights from reviews, shoots, and live performances.
Color Engine Comparison
High Fidelity Colors
Versatile Choices
Easy Selection
Perfect for Any Scene

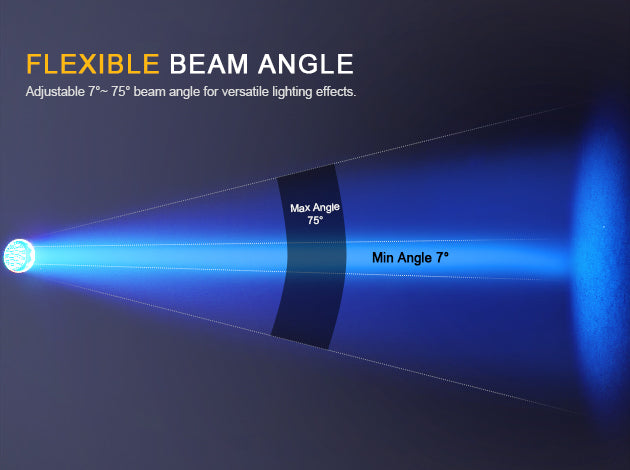

Flexible Beam Angle
Adjustable 7°~75° beam angle for versatile lighting effects.
All-in-One Stage Light
Ideal for wall wash, moving head, and dynamic stage effects.
True-to-Life Colors
High CRI ensures natural and vivid stage colors.

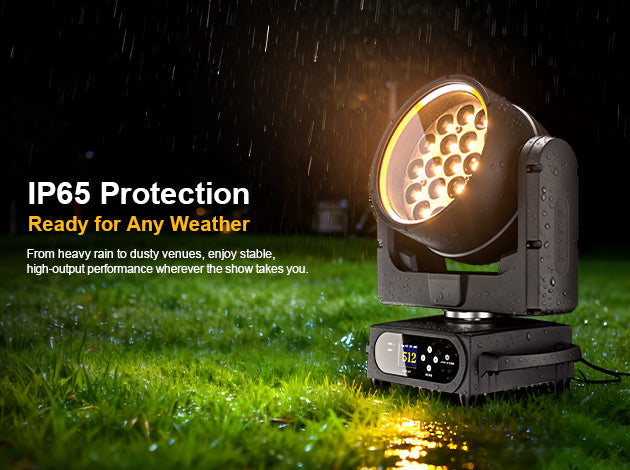

IP65 Weather-Ready
From heavy rain to dusty venues, enjoy stable, high-output performance wherever the show takes you.
Various Applications
Perfect for stage shows, dance halls, KTVs, bars, weddings, home décor, nightclubs, shops, and festive events, and other different occasions.

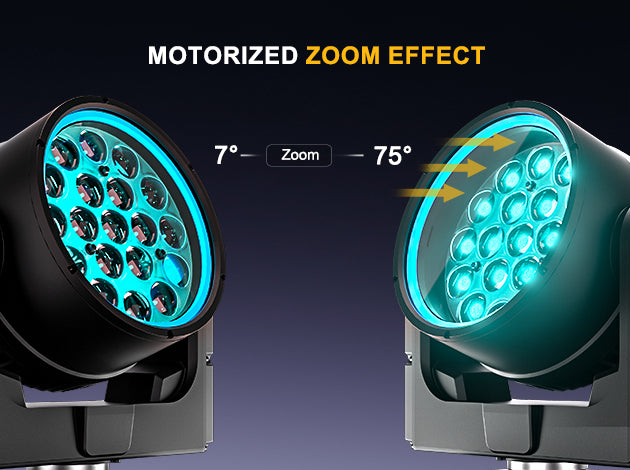

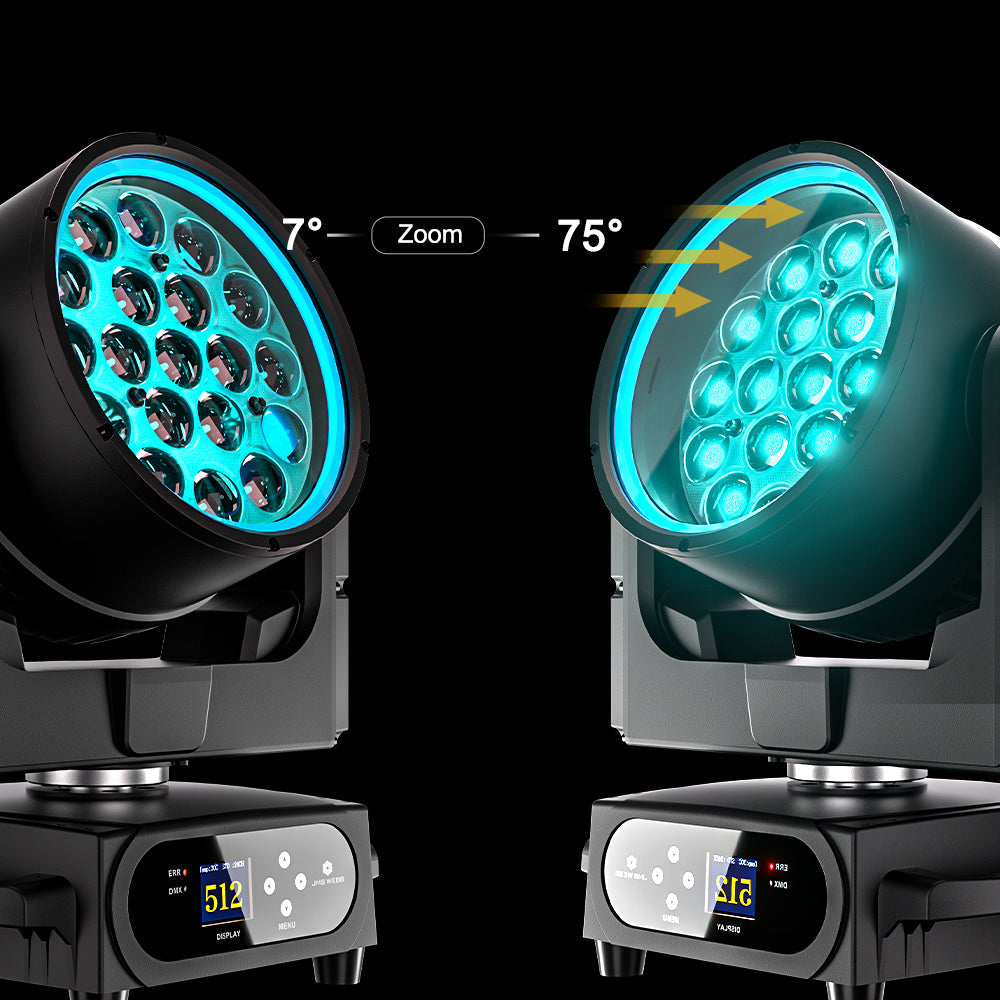

Motorized Zoom Effect
Seamlessly adjust the beam from a tight spotlight to a wide wash. Perfect for creating dynamic transitions and stunning visual depth.
Fog-Free Optics
Built-in desiccant keeps the lens clear even with rapid temperature changes, ensuring stable, reliable performance in any environment.

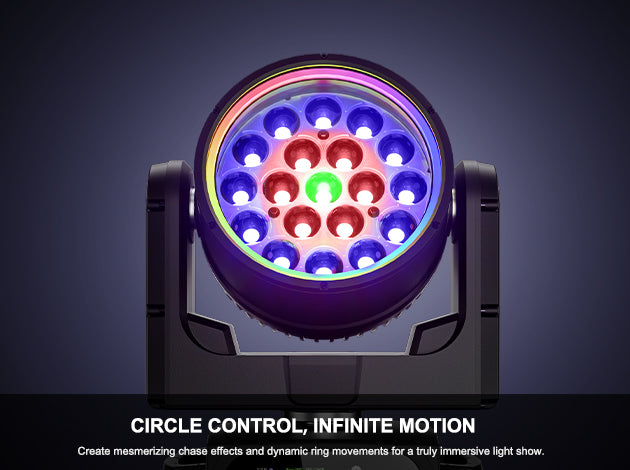

Circle Control, Infinite Motion
Create mesmerizing chase effects and dynamic ring movements for a truly immersive light show.

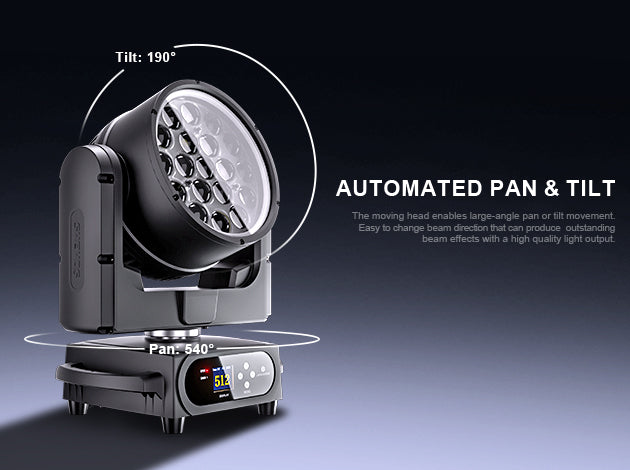

Automated Pan & Tilt
The moving head enables large-angle pan or tilt movement. Easy to change beam direction that can produce outstanding beam effects with a high quality light output.

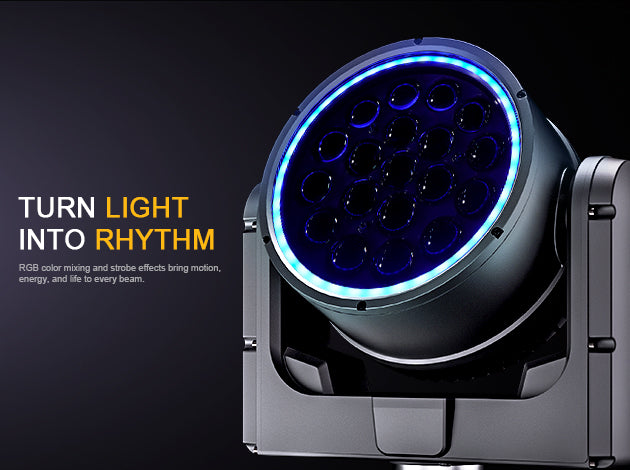

Turn Light into Rhythm
RGB color mixing and strobe effects bring motion, energy, and life to every beam.

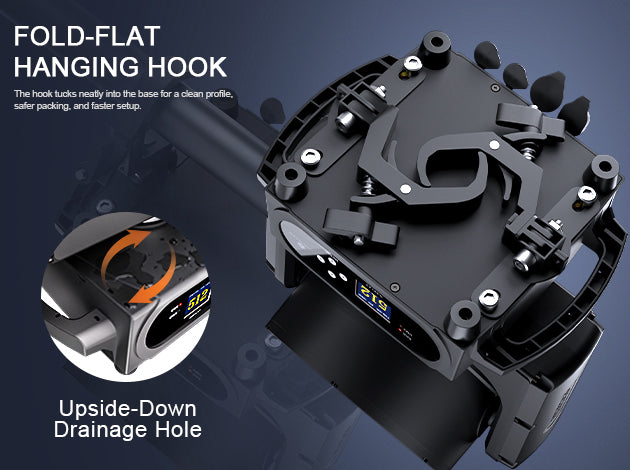

Easy Setup Anywhere
Can be hung or floor-mounted, flexible for any stage setup.

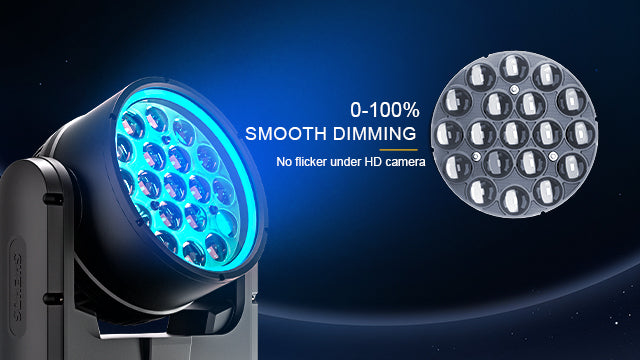

0-100% Smooth DimmingNo flicker under HD camera
Linear CTO ； Point Control ； Macro Effect ；

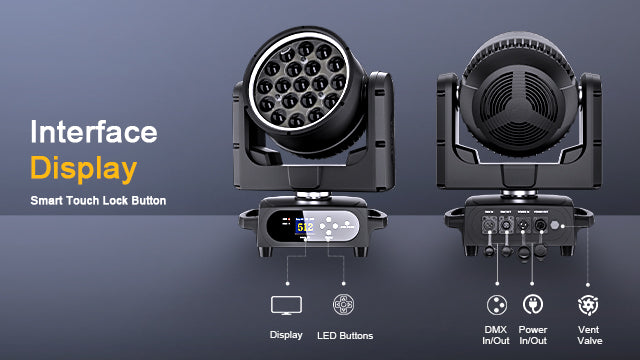

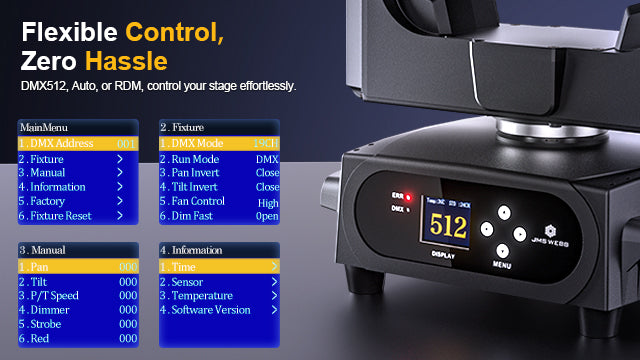

Interface Display
Smart Touch Lock Button Lock, switch, and manage instantly, all at your fingertips.
Effortless Control

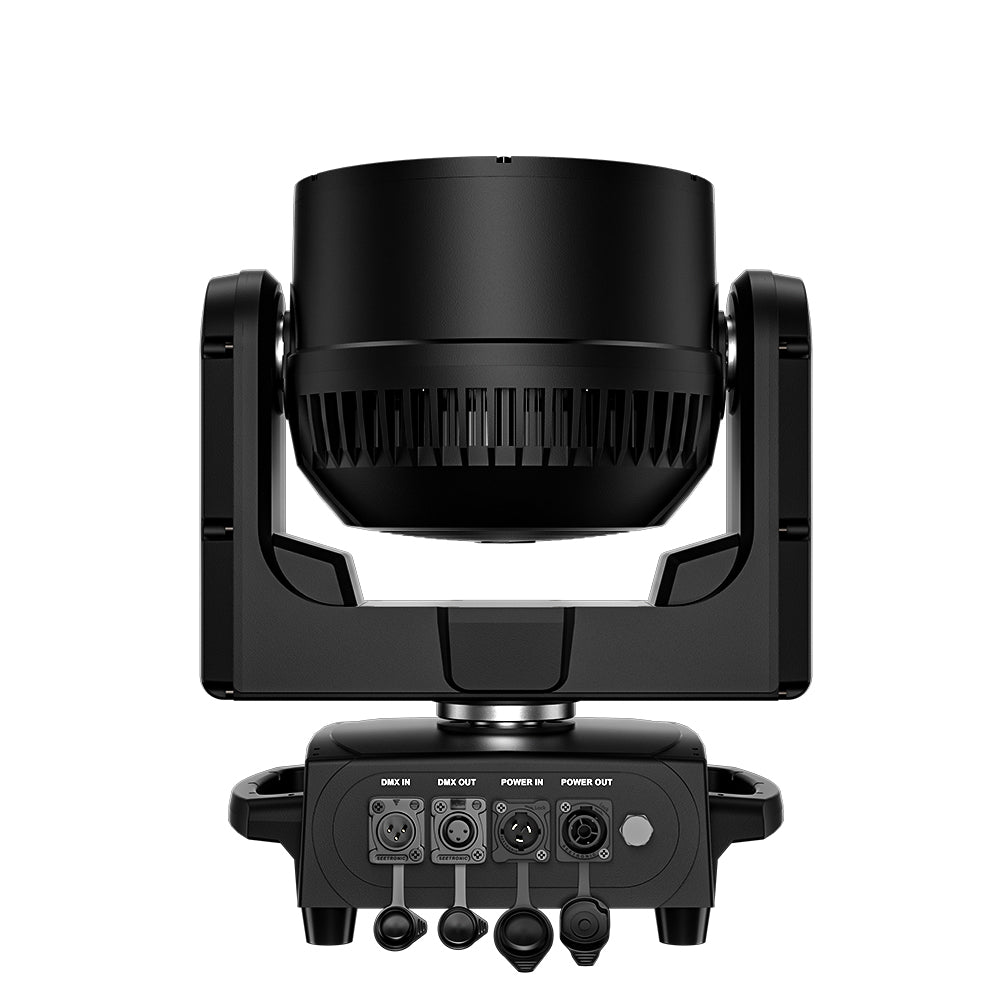

DMX512, Auto, or RDM, control your stage effortlessly.

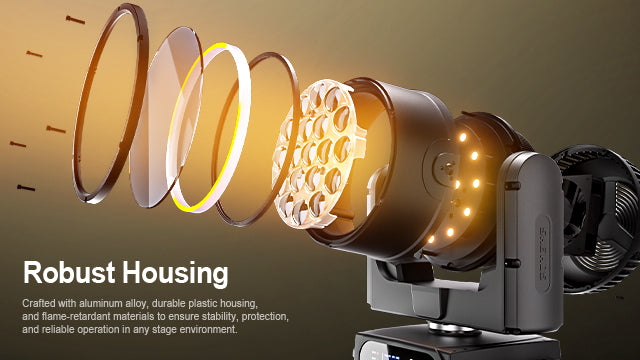

Robust Housing
Crafted with aluminum alloy, durable plastic housing, and flame-retardant materials to ensure stability, protection, and reliable operation in any stage environment.

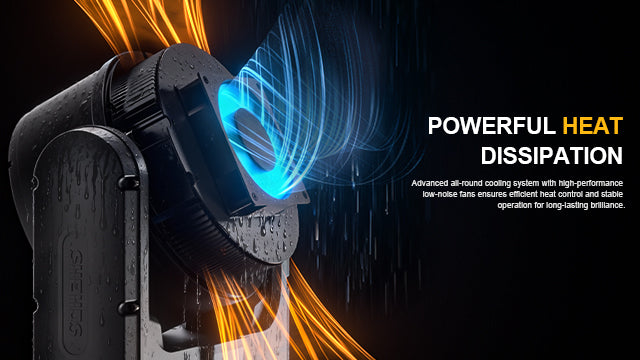

Powerful Heat Dissipation
Advanced all-round cooling system with high-performance low-noise fans ensures efficient heat control and stable operation for long-lasting brilliance.
Big Effects, Zero Limits
Small in size but big in performance, this versatile moving head delivers professional-quality lighting for any venue or event.

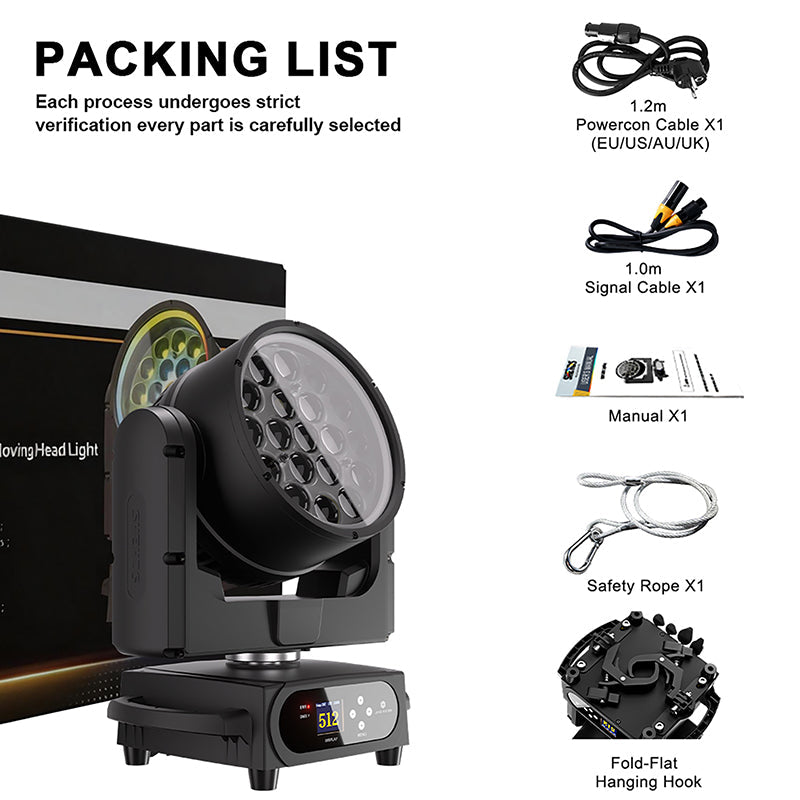

Packing List
Each process undergoes strict verificationEvery part is carefully selected

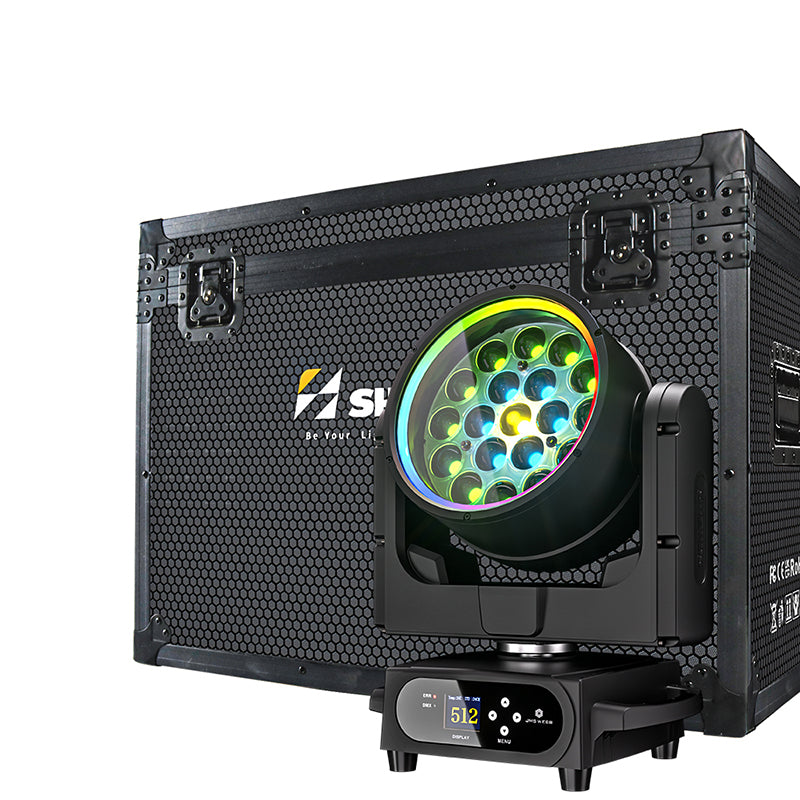

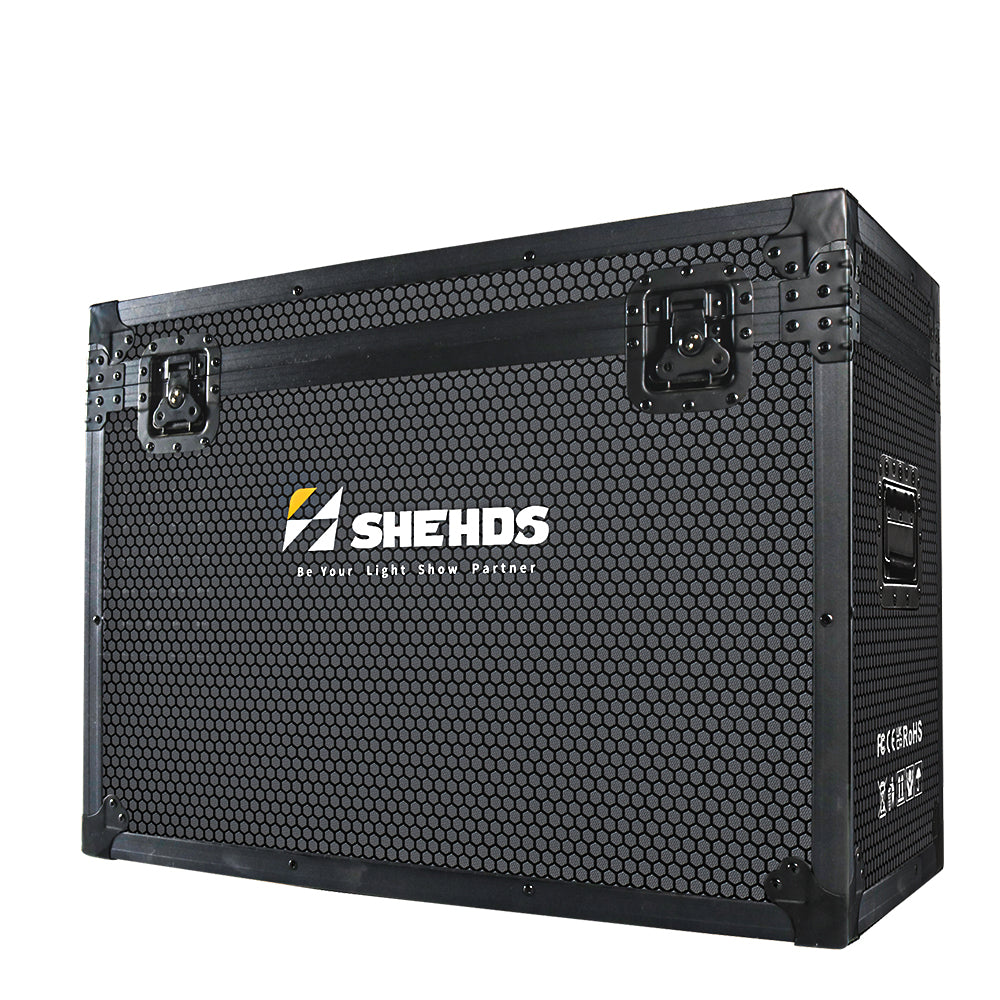

Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service,
please consult customer service for details!
