Technical Parameter
Light source parameters
Light source:
LED white color
Color Temperature:
Beam:9100-9500K / 3IN1:9100-9400K
Luminous lumens/5m:
200W:145000 lx / 200W 3IN1:40000lx / 300W:180000 lx / 300W 3IN1:55000lx
Beam Angel:
Beam:2° / 3IN1:2°~22°
Lifespan light source:
20000h
Diameter of the outgoing lens:
Beam:150mm / 3IN1:100mm
Dimming:
0-100% linear dimming
CRI:
Min.Ra 70
Optical effect
Gobos 1:
Beam:14 gobos + Open / 3IN1:5 gobos + Flame pattern + Open
Gobos 2:
3IN1:7 Gobos rotating +Open

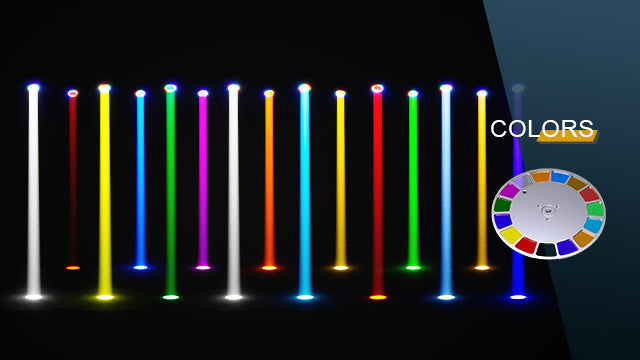

Colors:
Beam:14 colors + Open / 3IN1:9 colors + Open
Prism 1:
Beam:8 prism / 3IN1:5 prism
Prism 2:
Beam:8+16+24 prism

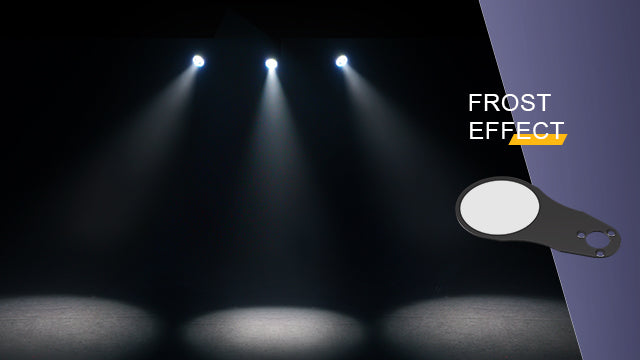

Frost:
Simple frost
Color effect:
Beam:6 colors
Security System
Safety Item:
Over current and voltage protection
Degree Of Protection:
IP20
Operating Temperature:
-15℃~45℃
Interface And Control System
Control Interface:
3-pin and 5-pin XLR In/Out
DMX Channel:
Beam:19CH / 3IN1:20/23CH
Power Interface:
Beam:PowerCon in/Out / 3IN1:PowerCon
Cooling System
Cooling Method
Air cooled
Structure
120mm plug-in heat dissipation layer
Bentilation Fan:
60mm fan Inx2 & outx2
Power Consumption
Working Power
100~240V AC 50/60HZ
Power Consumption
Beam 200W:Max 350W / 200W 3IN1:Max 300W / Beam 300W:Max 450W / 300W 3IN1:Max 400W
Physical Parameters
Product Size :
30x22x58cm / 11.8x8.6x22.8inch
Product Weight:
14.6 Kg
Pack Size:
59x41x38.5cm/23.2x16.1x15.1inch
Package Weight:
17.54 kg

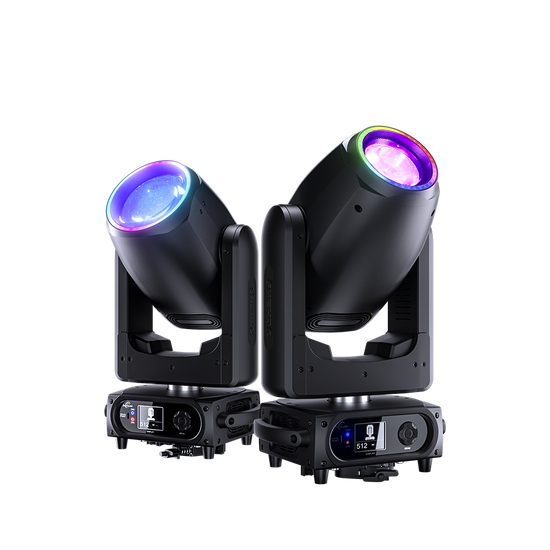

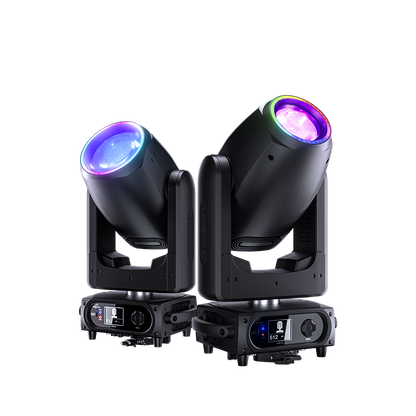

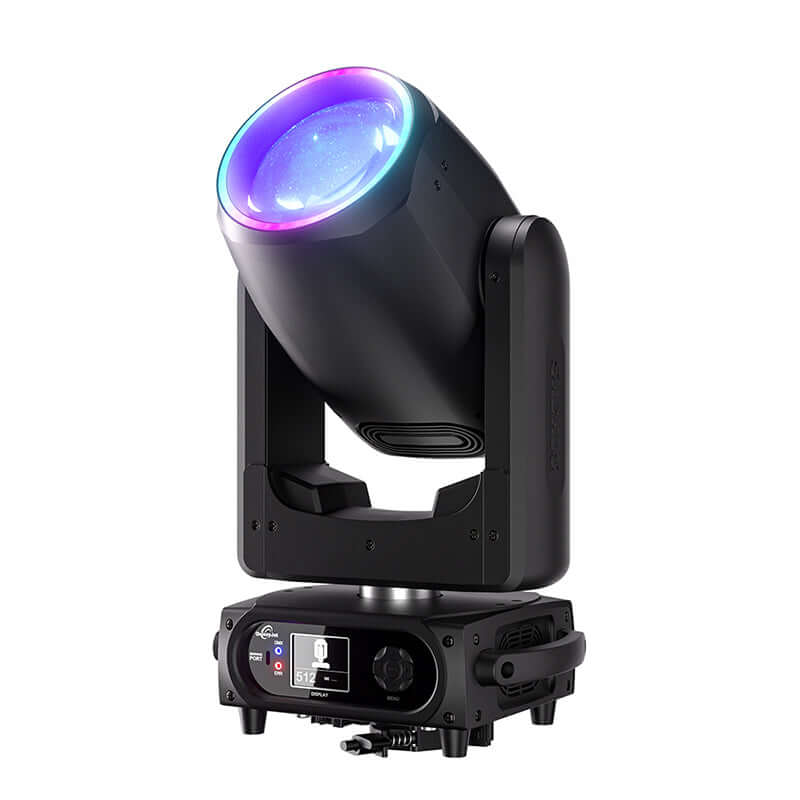

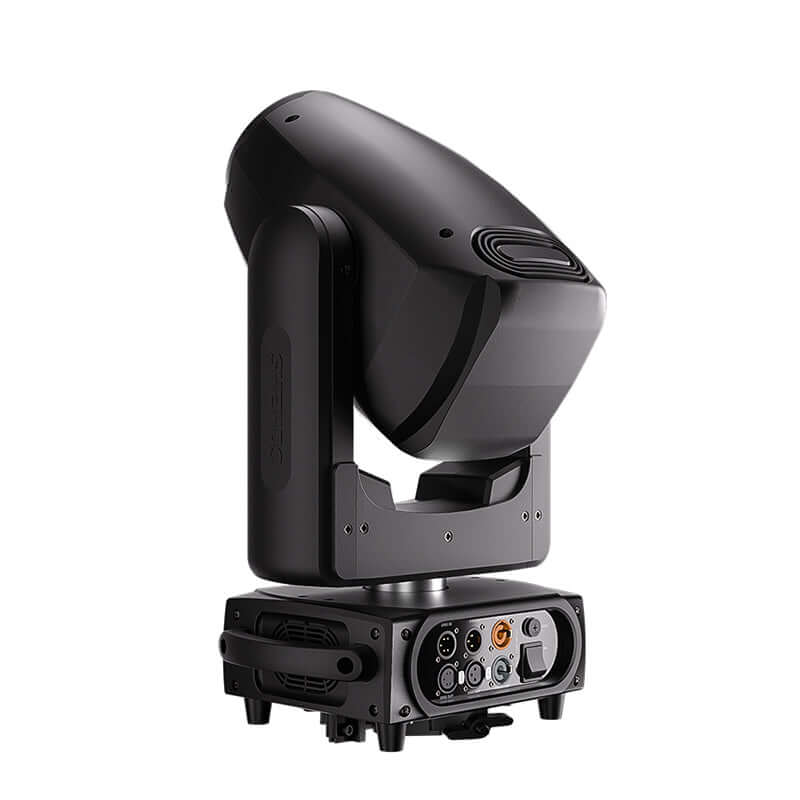

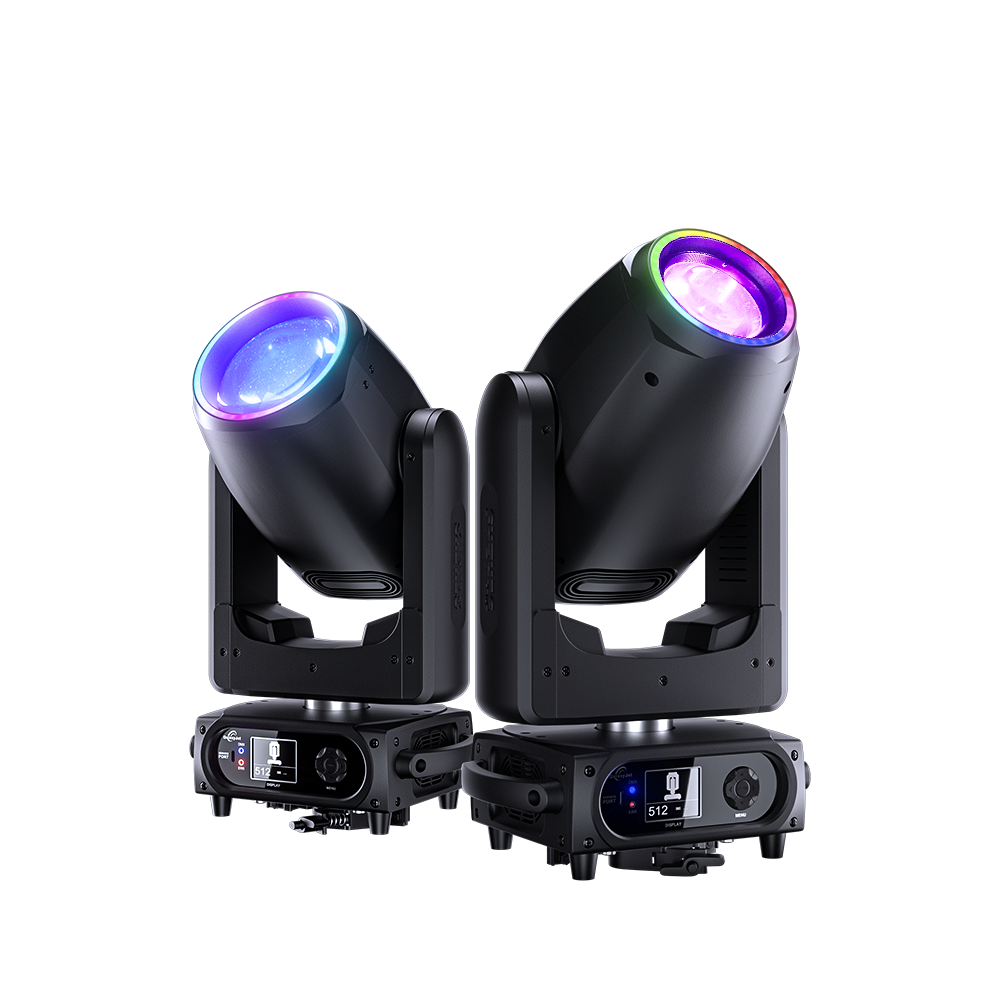

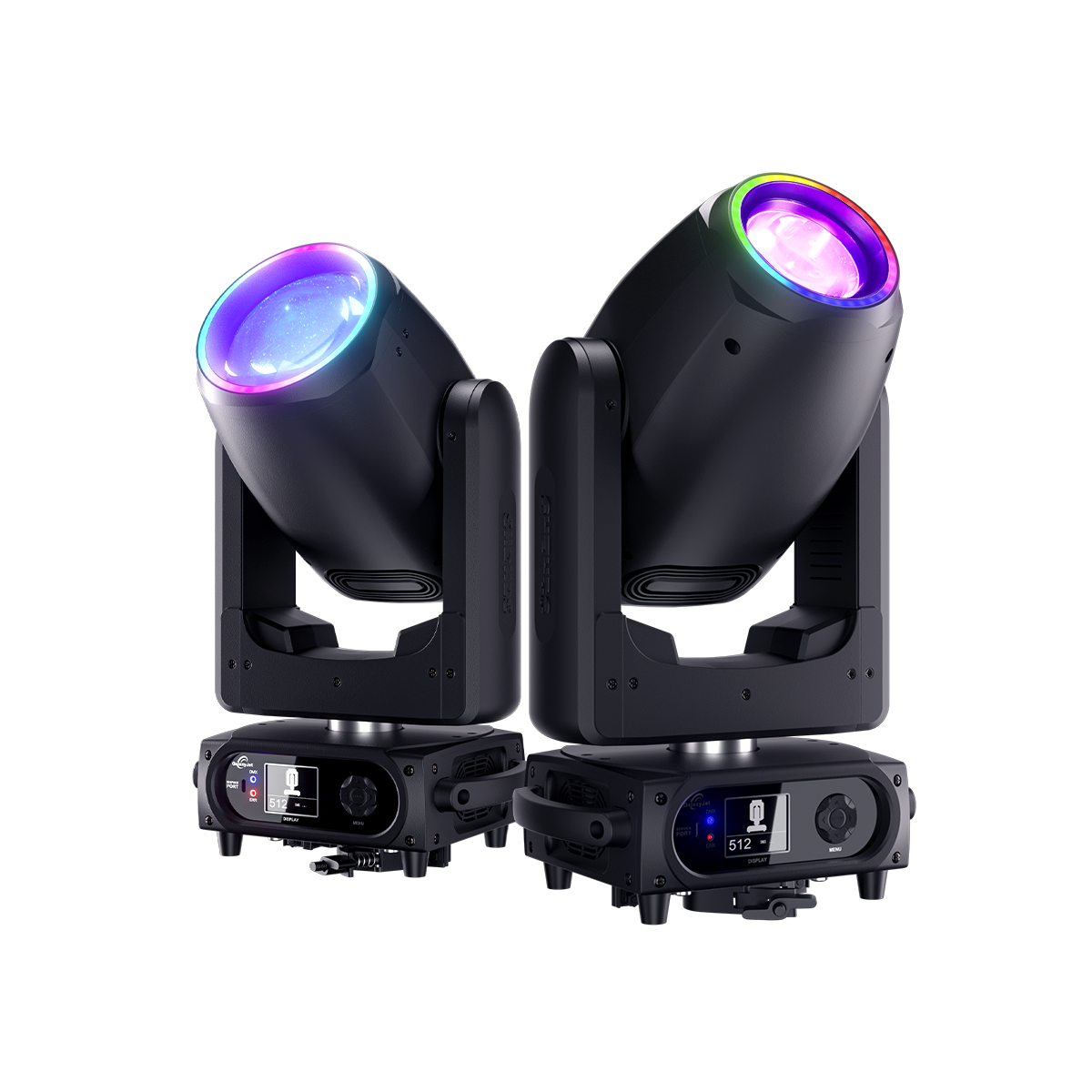

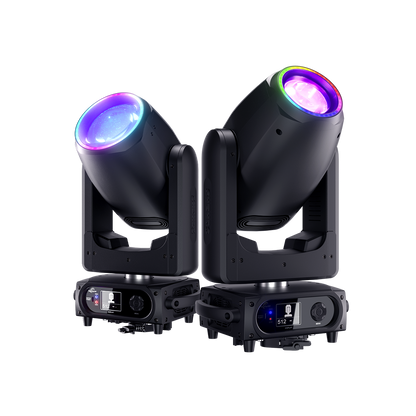

LED Beam&3IN1 Light
Equipped with a module light engine,
significantly improves the brightness of this product compared to traditional stage lighting.
The high-power LED module of ensures strong light output,
making it easy to handle even large stages or long-distance lighting needs,
ensuring that every detail on the stage is clear and visible,
bringing the audience a more delicate and realistic visual experience.
Technical Parameters Comparison
Physical Parameters
Product Size: 30x22x58cm/11.8x8.6x22.8inch
Product Weight :14.6 Kg
Pack Size: Size: 59x41x38.5cm/23.2x16.1x15.1inch
Package Weight :17.54 kg
Product Features
This lamp is not only suitable for large-scale stage performances such as professional theaters, concerts,
and concerts, but also for various occasions such as wedding celebrations, corporate annual meetings,
product launches, etc. Its powerful beam effect, flexible adjustment ability, high brightness,
and long-distance illumination ability enable it to achieve the best results in various scenes,
adding a bright color to your activities。

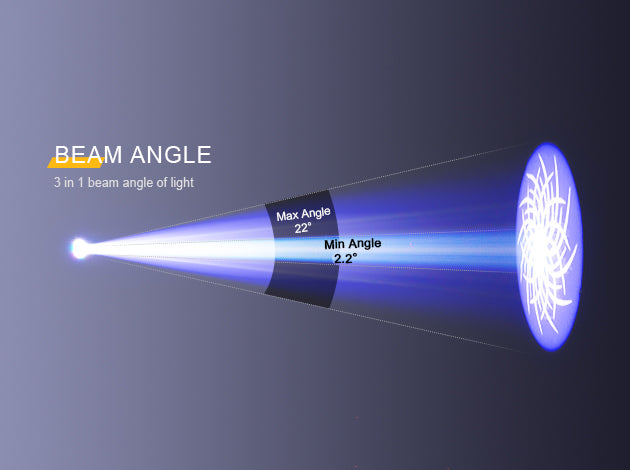

Beam Angle(3IN1 Light)
The high brightness LED module, flexible shaking mechanism,
and precise optical design not only enhance the professionalism and artistry of 3IN1 stage lighting with a 2.2°~22° beam angle,
but also provide a broader space for expression and creative possibilities for performance creators.

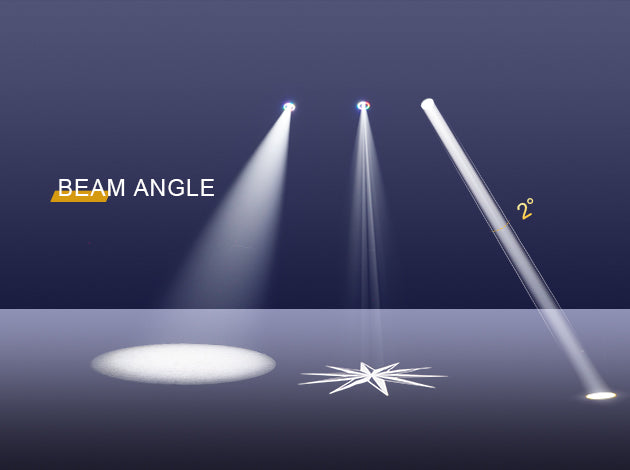

Beam Angle(Beam Light)
The high brightness LED module, flexible shaking mechanism,
and precise optical design not only enhance the professionalism and artistry of 3IN1 stage lighting with a 2°beam angle,
but also provide a broader space for expression and creative possibilities for performance creators.
LED Light Source
The high brightness LED module adopts high-quality LED chips and packaging technology, with a brightness of 44000lx/5m, meeting various lighting and display needs.
Having lower energy consumption and higher energy efficiency helps reduce energy consumption and environmental pollution.
It has good stability and reliability, and can maintain stable luminous effects in various harsh environments.
Applicable Scene
Suitable for large-scale stage performances such as professional theaters, concerts, and concerts, as well as various occasions such as wedding celebrations, corporate annual meetings, product launches, etc. Its powerful beam effect, flexible adjustment ability, high brightness, and long-distance illumination ability enable it to achieve the best results in various scenes, adding a bright color to your activities.

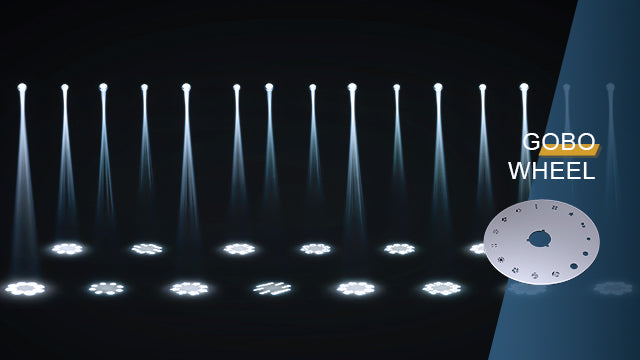

Effect(Beam Light)

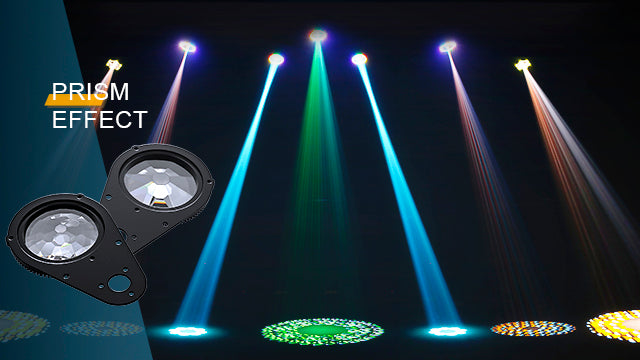

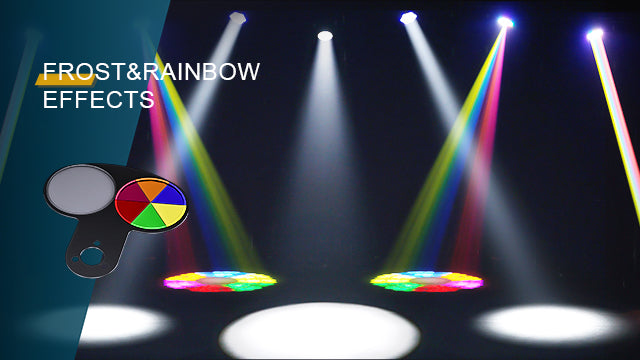

The combination of 14 patterns, 14 color chips, 8 prisms and 6+16+24 prisms, unique atomization effect, and wonderful performance of the rainbow disc bring the ultimate light and shadow effect to the stage performance. The flexible application and combination of these effects not only enrich the visual level of the stage, but also enhance the infectiousness and artistic expression of the performance.

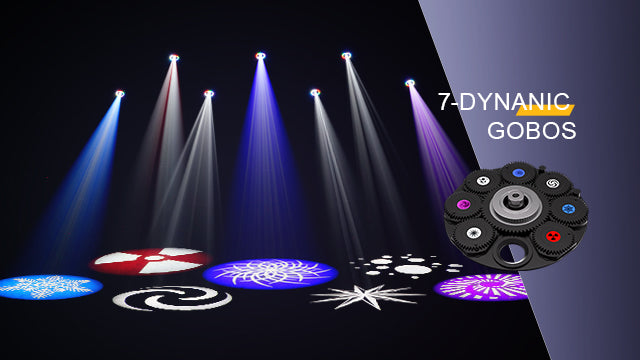

Effect(Beam&Wash&Gobo Light)

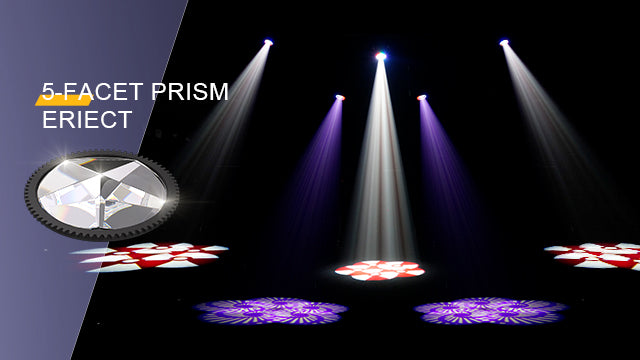

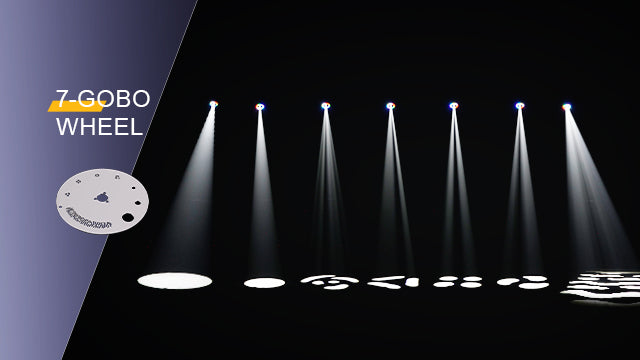

The combination of 7 gobos + Flame pattern + Open, 7 Gobos rotating、9 colors , 5 prism, and Simple frost, and wonderful performance of the rainbow disc bring the ultimate light and shadow effect to the stage performance. The flexible application and combination of these effects not only enrich the visual level of the stage, but also enhance the infectiousness and artistic expression of the performance.

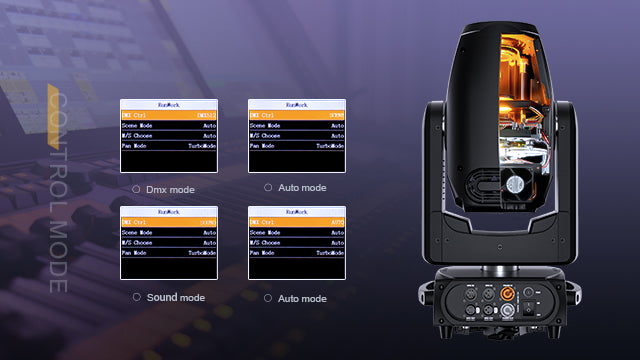

Control Mode
Supports multiple control modes such as DMX512, automatic, voice control, and manual programming, with built-in carefully designed lighting effect presets. With just one click, it can present a rich and colorful stage atmosphere, greatly simplifying the lighting layout process and suitable for rapidly changing performance scenes. Adapt to multiple user groups!
Split Heat Dissipation
Adopting a low-noise fan design and optimized airflow channel layout, it achieves efficient heat dissipation while minimizing operating noise. Even in high-end applications that are sensitive to noise, it can maintain a quiet and comfortable lighting environment, allowing for uninterrupted focus and relaxation.

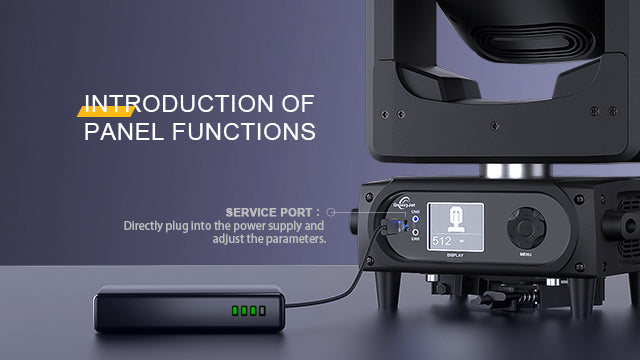

Introduction To Panel Functions
High pixel display screen makes operation more convenient and intuitive. Real time temperature feedback function: Real time display of temperature data inside the lamp through the display screen.

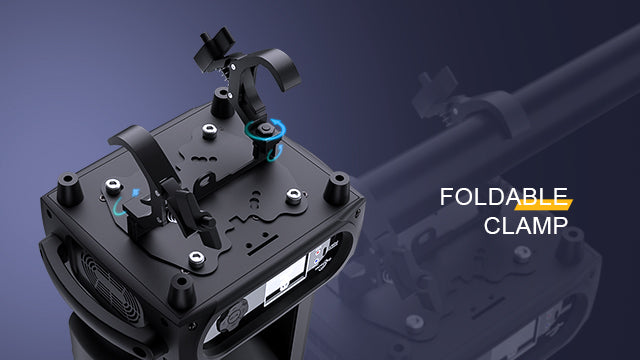

Foot Stand And Knob
The integrated folding suspension installation structure and unique folding design make the installation process unprecedentedly easy. No complex tools or professional skills are required, and installation can be completed in just a few simple steps, greatly saving installation time and cost.

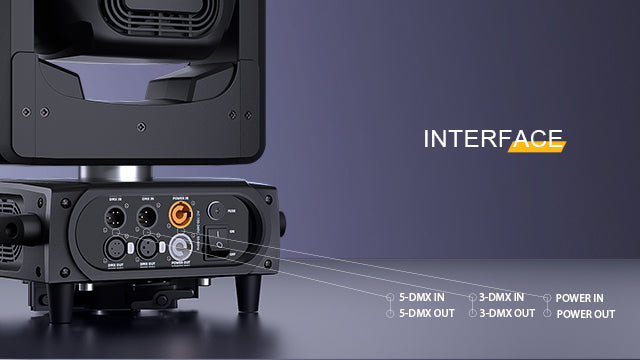

Socket
Stage lights typically come with PowerCON or IEC connectors for power, and 3-pin or 5-pin DMX ports for signal control, allowing easy daisy-chaining between fixtures.
Drop Resistance Test
To ensure our stage lighting equipment remains reliable during transportation and use, we’ve conducted rigorous drop tests. Even after multiple simulated drops, the lights continued to perform flawlessly, demonstrating excellent shock resistance. Whether during shipping or stage setup, our products are built to withstand the bumps and drops—giving you peace of mind and dependable performance.

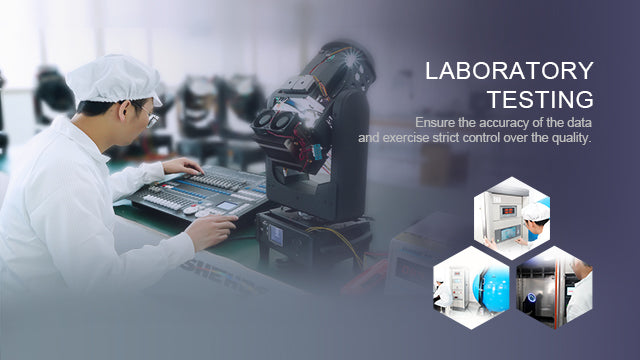

Laboratory
We are proud to operate a state-of-the-art lighting laboratory dedicated to professional stage lighting equipment. Each product undergoes a series of rigorous tests—from performance evaluation and light output analysis to environmental simulations—ensuring stable and outstanding performance in any stage setting. In our lab, no fixture is released without thorough quality verification. Every light is tested with precision and care, delivering the reliability and excellence your events deserve.
Before leaving the factory, each of our products undergoes rigorous testing to ensure they are in perfect condition. Our strict control over quality is like an artist polishing their masterpiece, striving for perfection in every detail. Only those products that have gone through layers of checking can confidently leave our factory and arrive in your hands, bringing you an excellent using experience.
Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake locks.
We offer customized road cases that perfectly meet your needs. Whether precision equipment, fragile items, or valuable goods, our road case not only ensures safety protection,
but also adapts flexibly to various specifications and shapes. Each case is finely crafted and made of high-quality materials, providing excellent protection and convenient transportation experience for your products.
From concept to delivery, we work closely with you to ensure that every detail meets your expectations.
Note: This is DIY service,
please consult customer service for details!
