Technical Parameter
Electrical Specification and Connections
Power supply:
250W/12V
Input voltage range:
AC100~240V 50/60HZ
Power in connector:
162w
Source
Light source type:
5050 RGB LEDs/0.25W each ; 5730U white LEDs/0.5W each
CRI:
75
Lux:
2840/1m ; 850/2m; 402/3m
Life expectancy:
20000h
Optical system
Beam angle:
Incidence angle: 45 degrees
Dimmer:
32-bit 0 - 100% linear dimming
Control and programming
Protocols:
DMX512，RDM
DMX Channel Mode：
6/19/302CH
Feature：
DMX512, Auto-run, Master-Slave, Sound Control, with RDM function
Mechanical specification
Housing :
Iron–aluminum alloy structure / plastic housing
Product size：
50*17.2*26.5CM
Product weight:
5.57KG
Package size:
59*17.5*34.5
Package weight:
7KG
Operating temperature:
-30 degrees to 40 degrees
Ingress protection rating:
IP20
Noise:
Powered on: 47dB / Running: 50dB

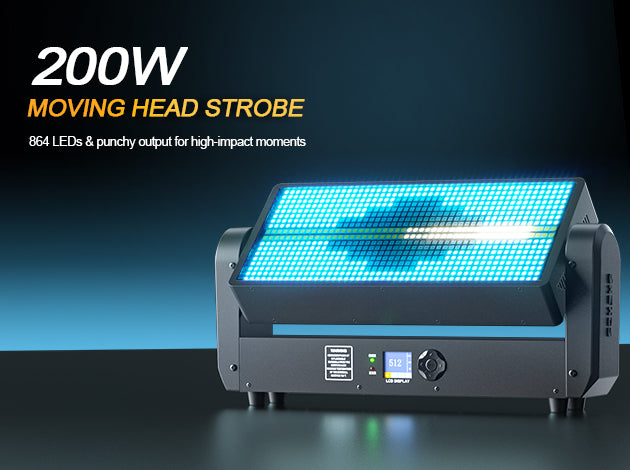

200W Moving Head Strobe
864 LEDs & punchy output for high-impact moments.
Real Events. Real Performance.
Tested in live environments, from setup to full show execution. Proven reliability, consistent output, and ready for any stage.

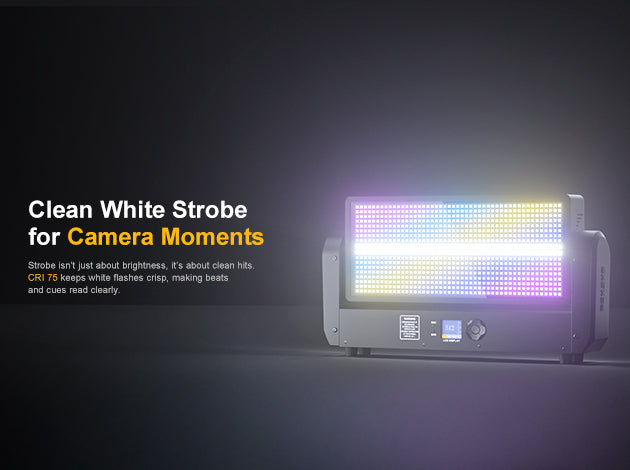

Clean White Strobe for Camera Moments
Strobe isn’t just about brightness, it’s about clean hits. CRI 75 keeps white flashes crisp, making beats and cues read clearly.

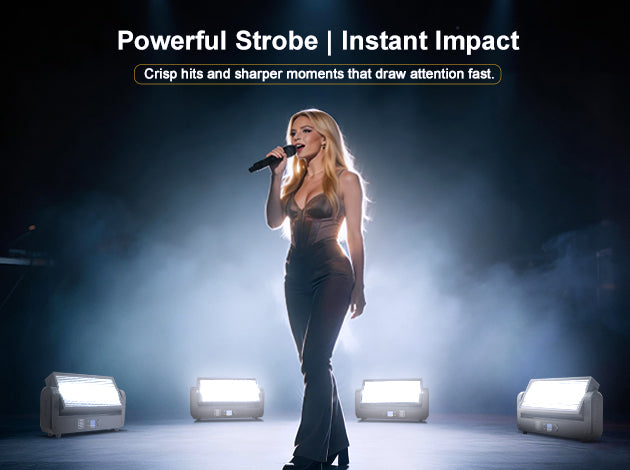

Powerful Strobe | Instant Impact
Crisp hits and sharper moments that draw attention fast.

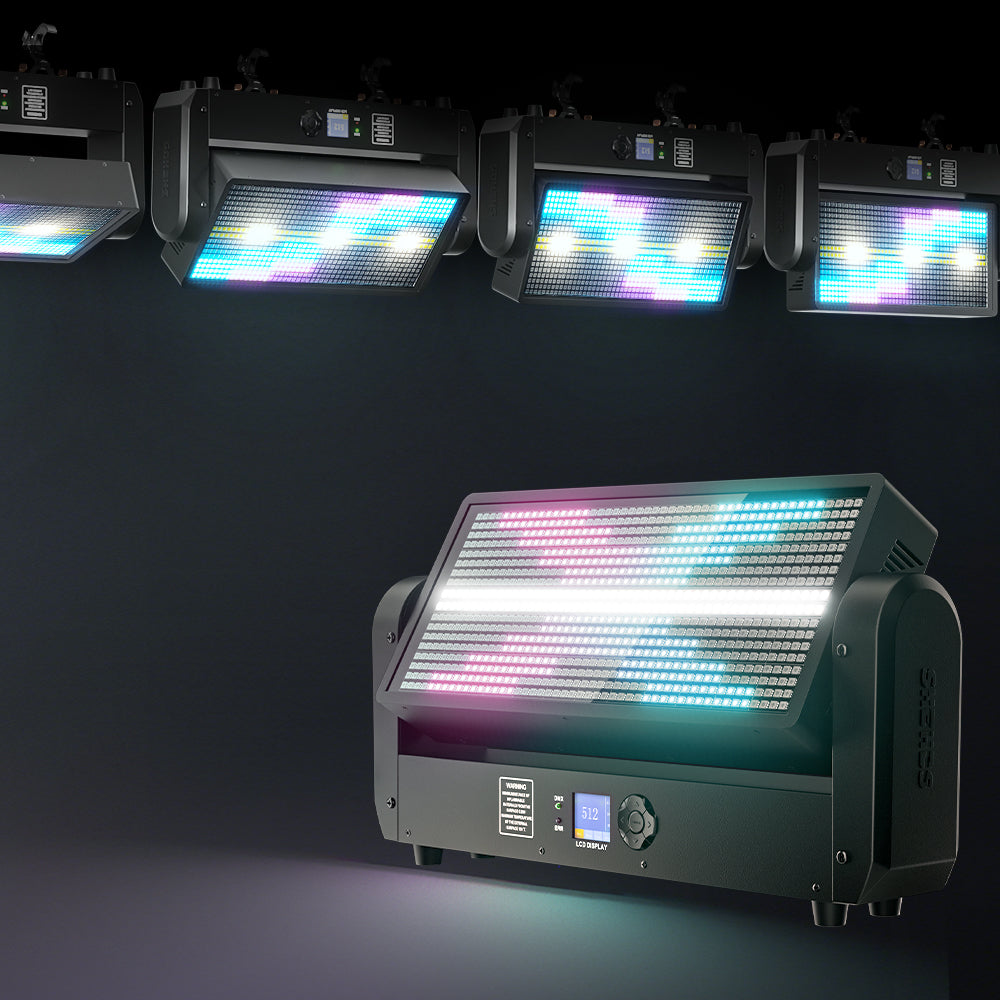

Chase Mode That Moves the Crowd
Built-in marquee/chase effects for instant hype.

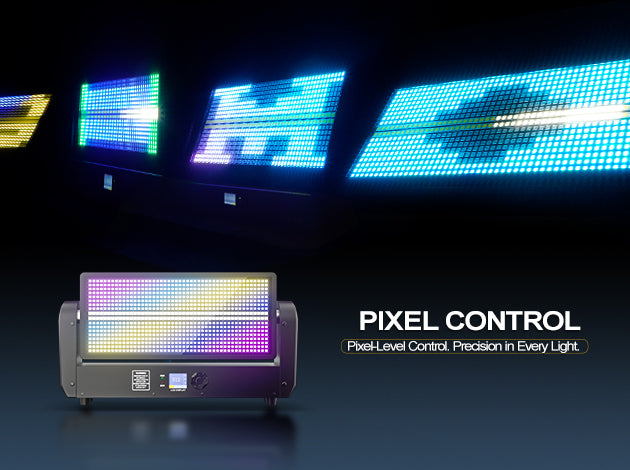

Pixel Control
Pixel-Level Control. Precision in Every Light.
True Colors. Seamless Transitions.
Smooth fades and natural color shifts for a clean, comfortable visual experience.

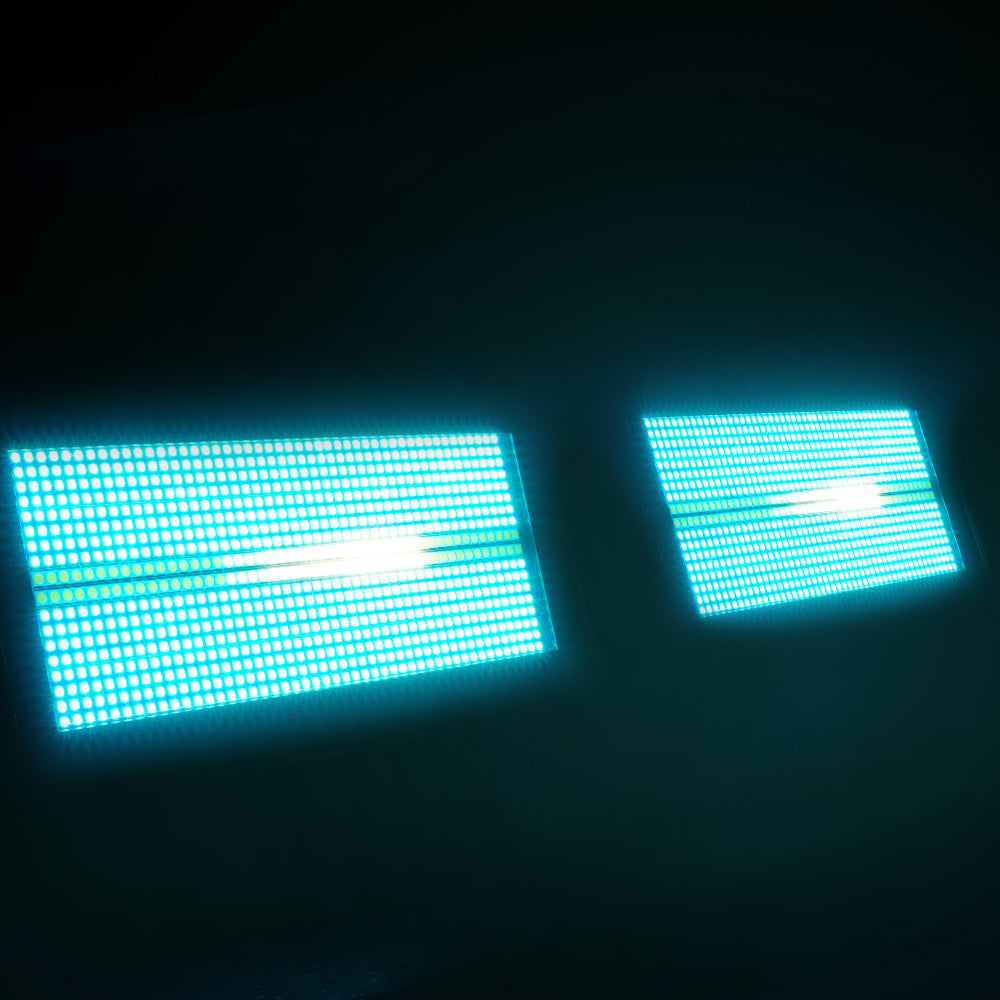

Real Effects. Real Results.
Real lighting effects captured in live environments, no filters, just pure performance.
0-100% Linear Dimming
True linear control tracks your fader precisely for cleaner low-end control and smoother fades, perfect for mood builds, cues, and timed hits.
Events That Feel Like a Show
Fast strobe hits + movement, perfect for drops and buildups.

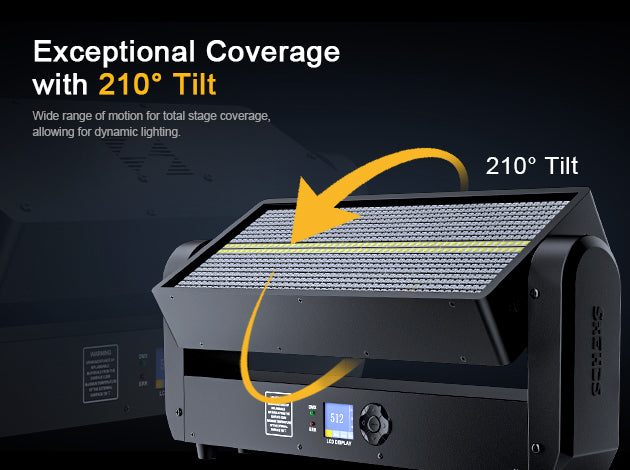

Exceptional Coverage with 210° Tilt
Wide range of motion for total stage coverage, allowing for dynamic lighting.

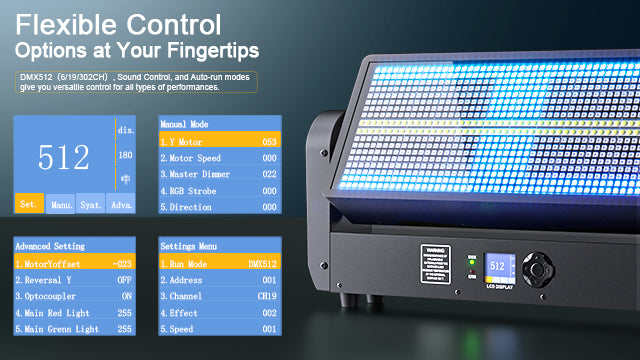

Flexible Control Options at Your Fingertips
DMX512（6/19/302CH）, Sound Control, and Auto-run modes give you versatile control for all types of performances.

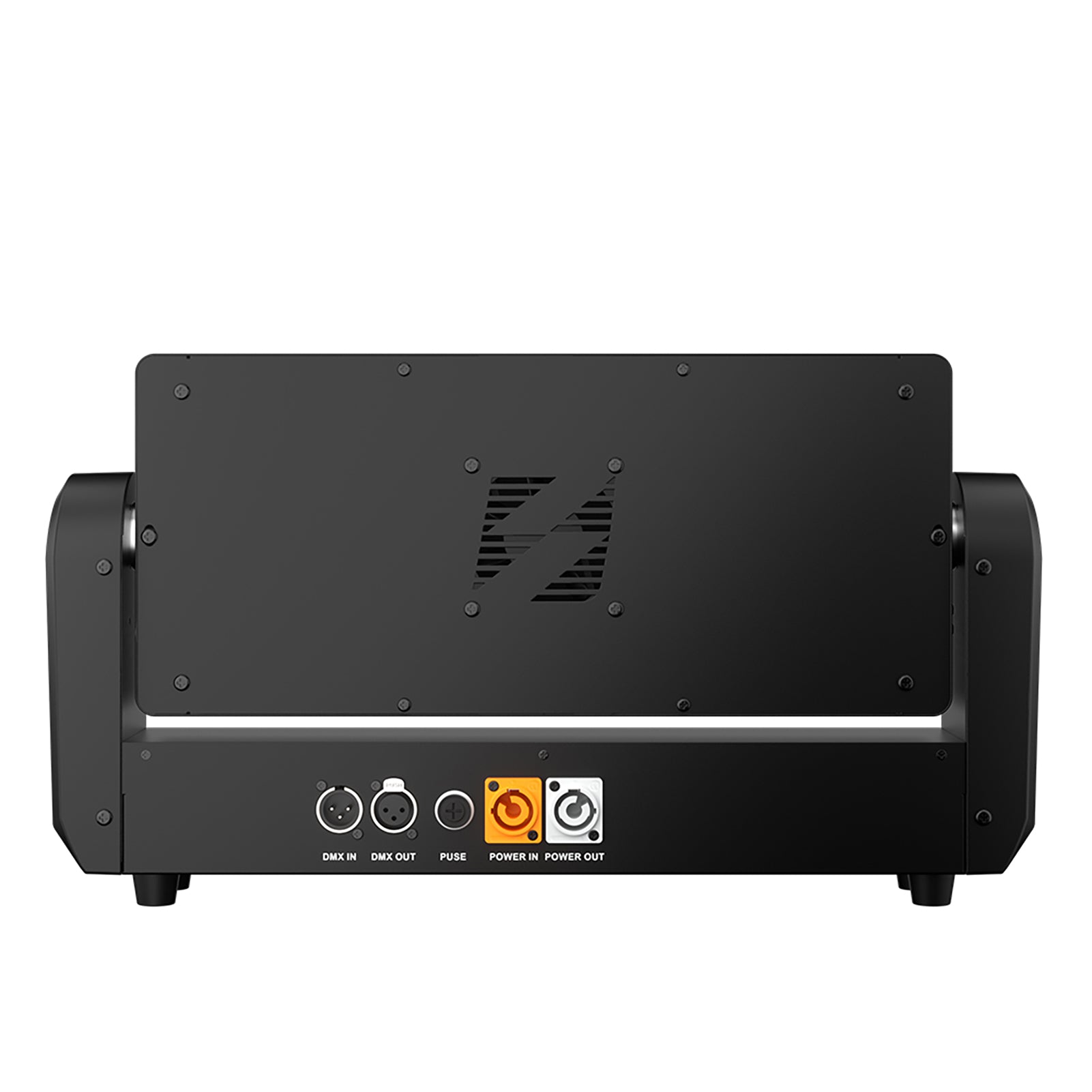

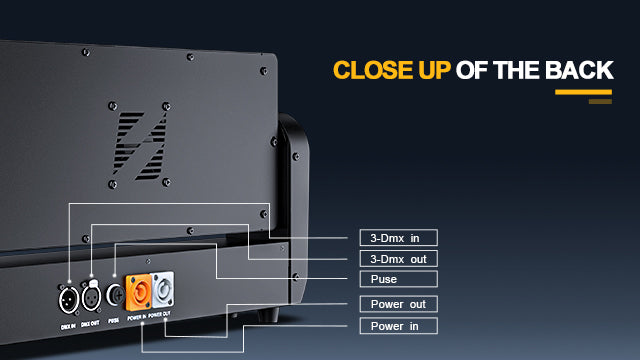

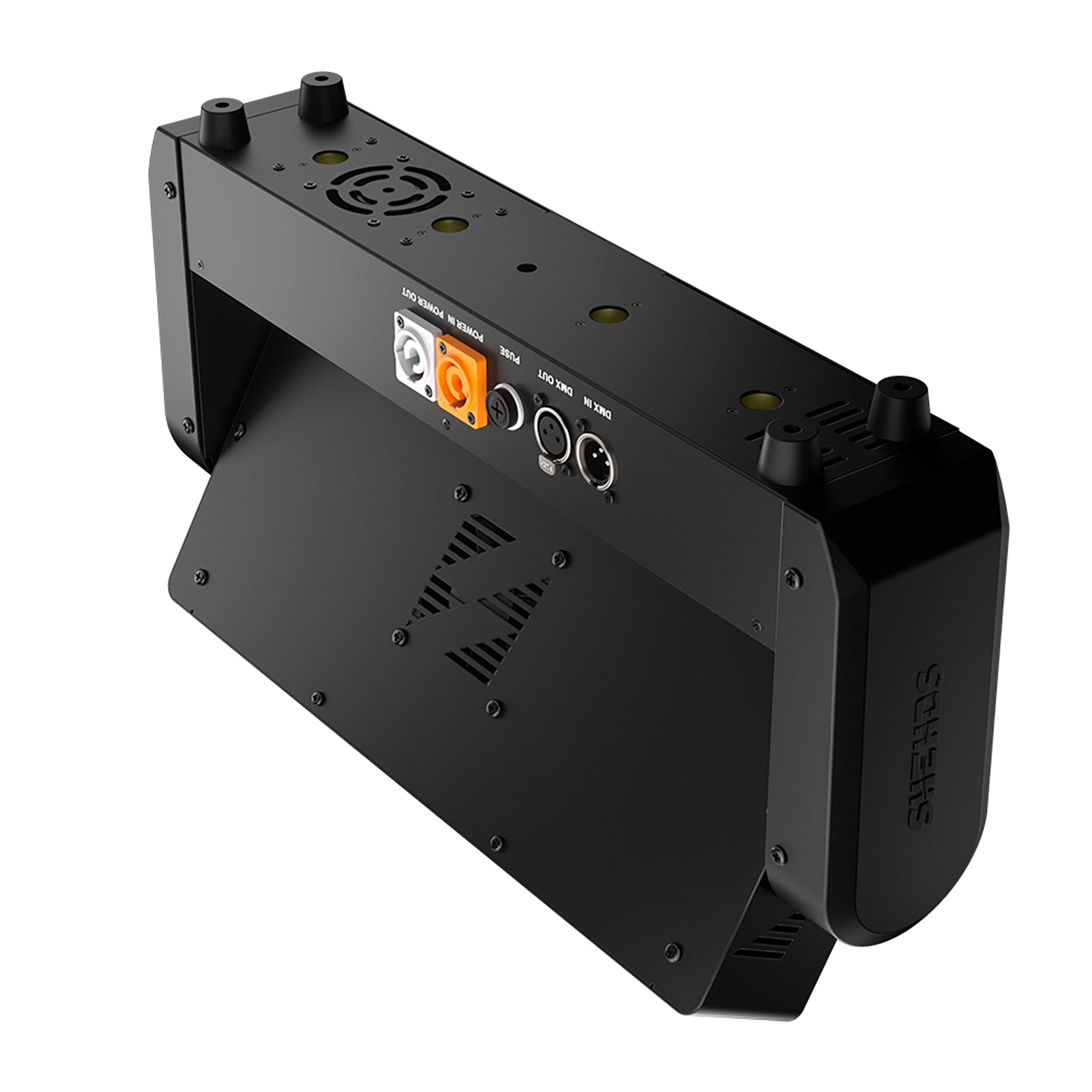

Rear Interface Overview
Well-organized ports and controls for quick setup and reliable connections.

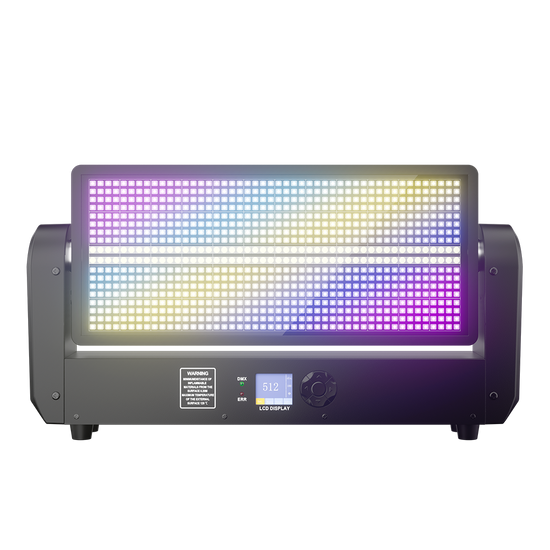

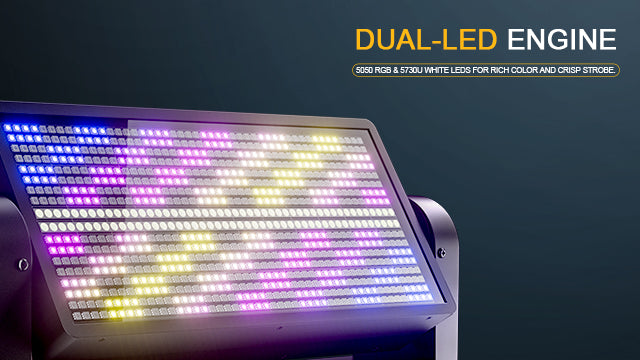

864-LED Matrix
Zoom In, Every Flash Looks Clean and Sharp Detail Shows Power, High-Density LEDs, Stronger Impact

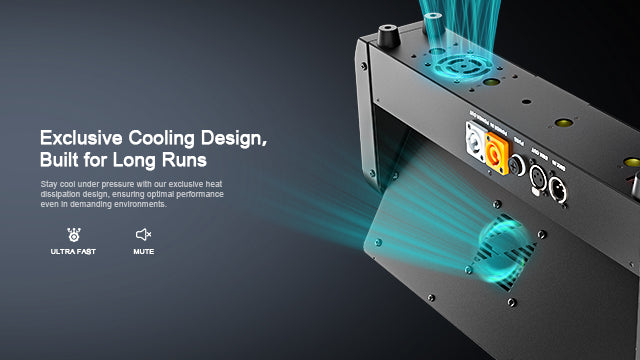

Exclusive Cooling Design, Built for Long Runs
Stay cool under pressure with our exclusive heat dissipation design, ensuring optimal performance even in demanding environments.

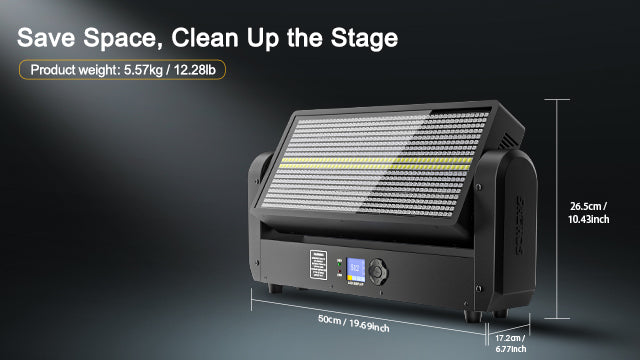

Save Space, Clean Up the Stage
Perfect for compact venues, DJ booths, and small stages.

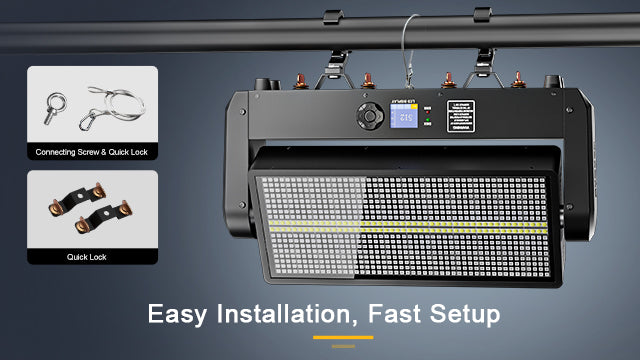

Easy Installation, Fast Setup
Quickly integrate with your lighting rig with the user-friendly design and flexible mounting options.

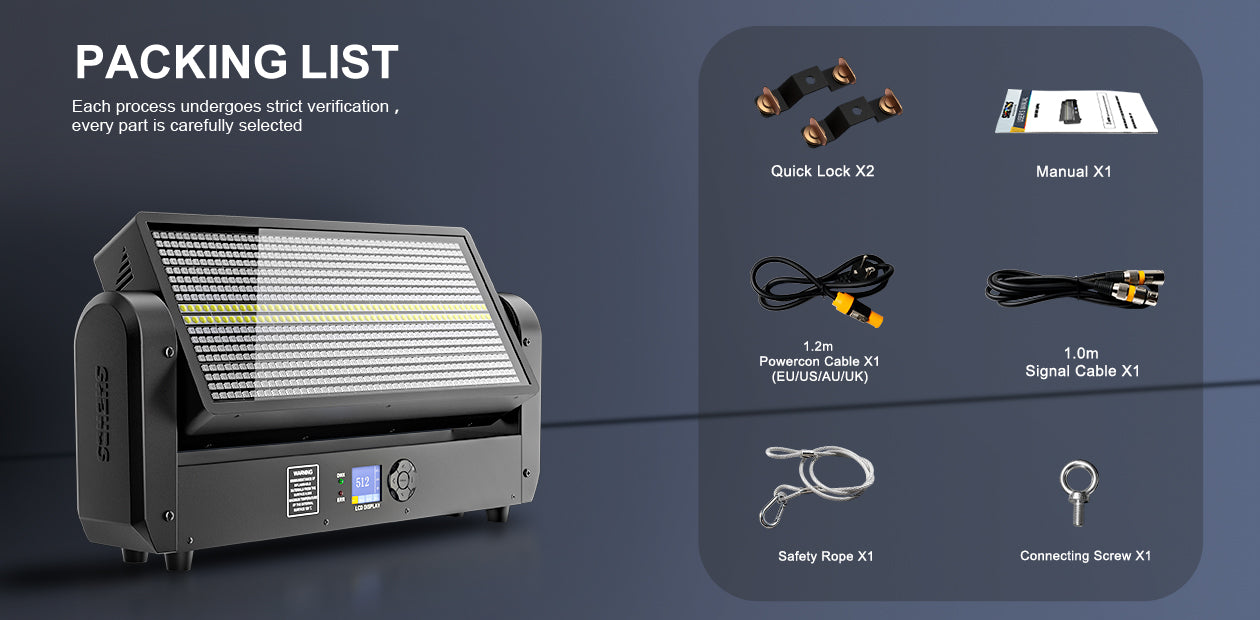

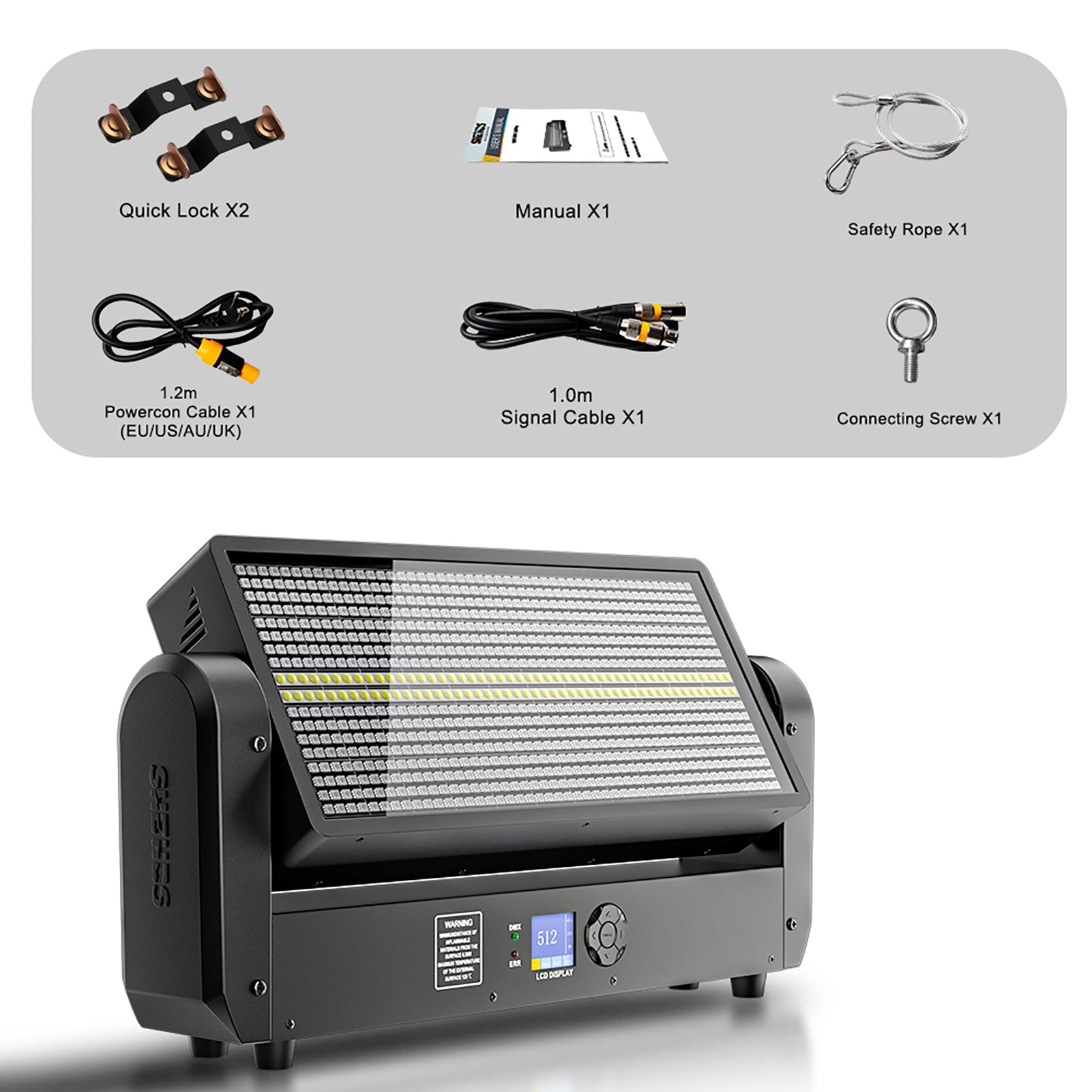

Packing List
Each process undergoes strict verificationEvery part is carefully selected

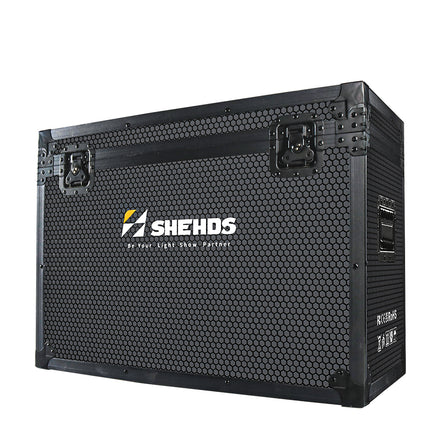

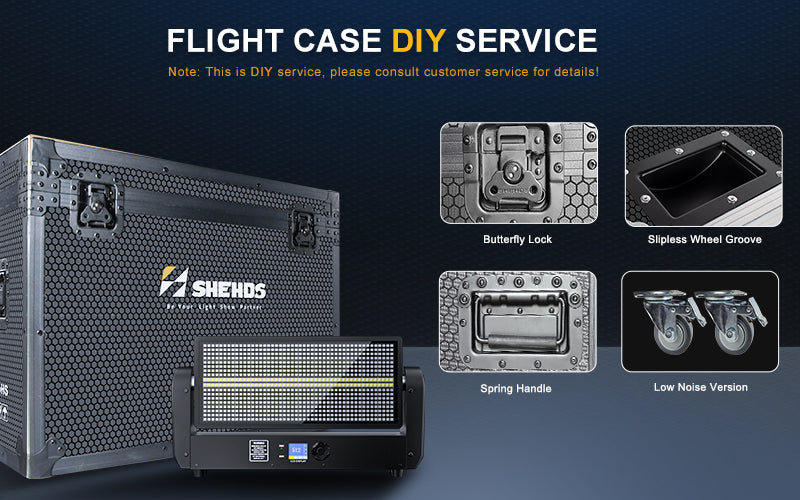

Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service,
please consult customer service for details!
