Technical Parameter
Technical Parameter
Voltage Range:
100–240V
Current Input:
1A
Interface Type:

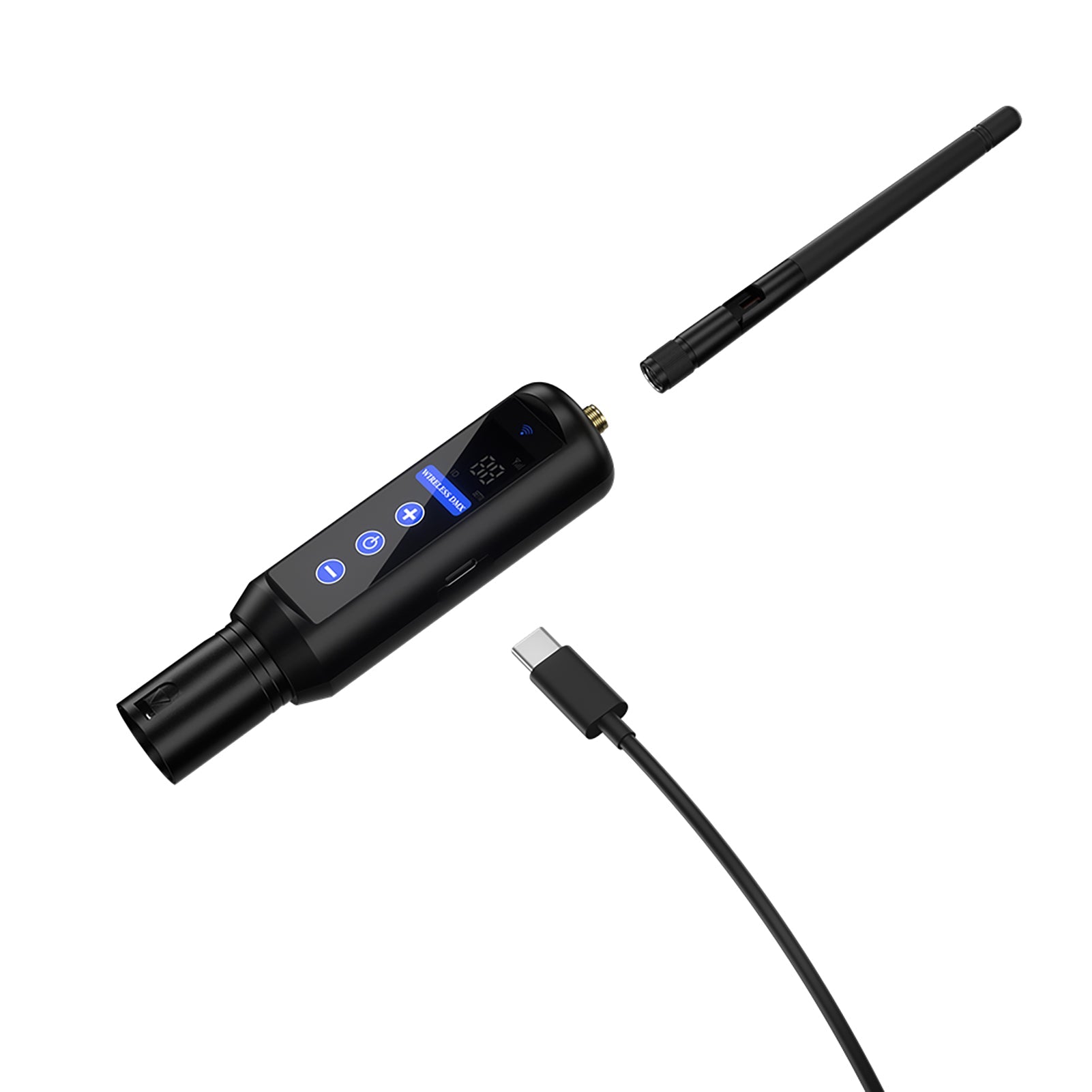

Type-C
Output Parameters:
5V
Power Rating:
5W
Signal Protocol:
2.4G DMX
Signal Transmission Distance:
600m
Battery Type:

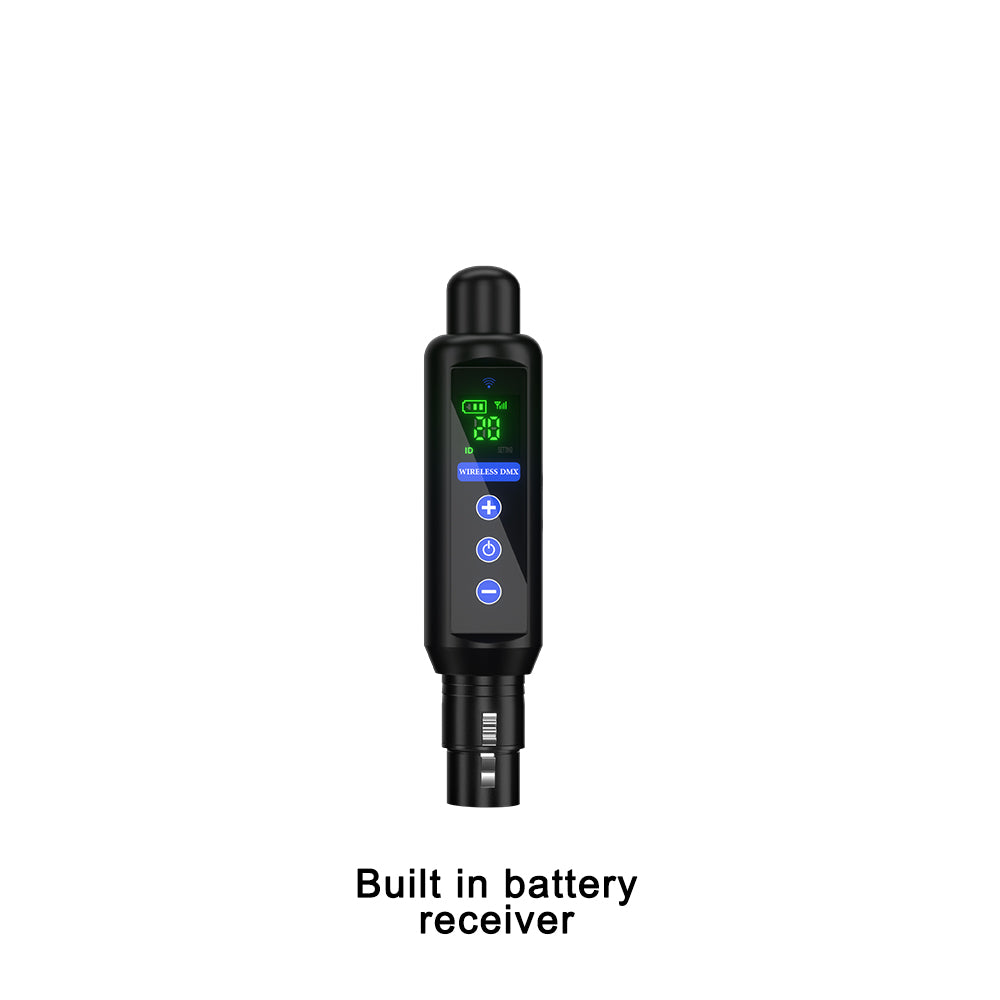

16340 Lithium Battery（Rechargeable version with battery）
Charging Time:
4 hours
Runtime:
20 hours
Standby time:
7 days

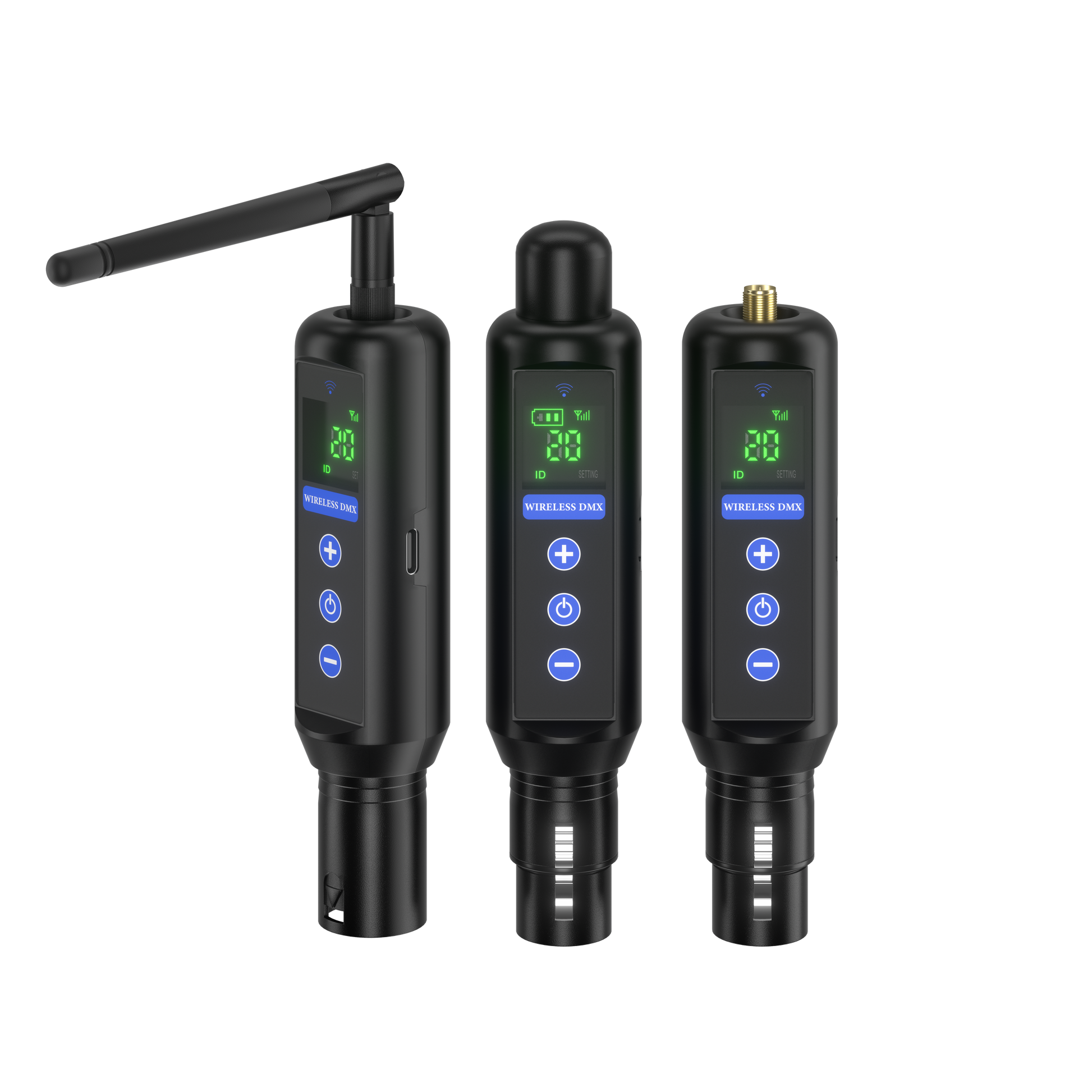

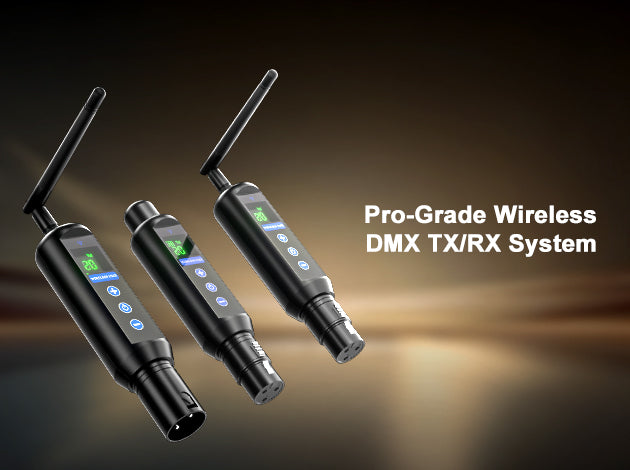

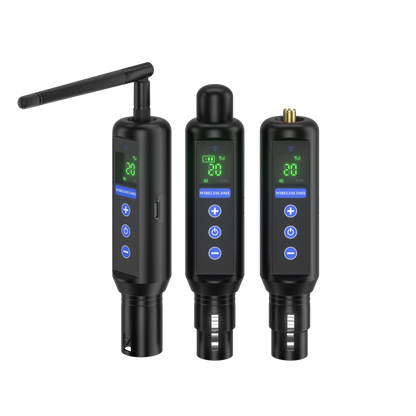

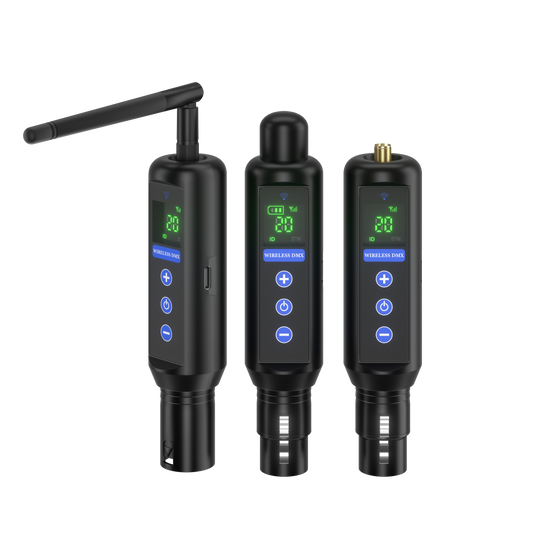

Pro-Grade Wireless DMX TX/RX System
Up to 600m coverage for big venues & outdoor stages
126 channels for cleaner wireless in crowded RF
20 group IDs / up to 20 systems in one venue—no cross-talk
600m Long Range. Built for Big Shows.
Confident coverage for stages, arenas, and outdoor events,
Stable wireless DMX where short-range kits struggle.
126 Channels
Cleaner Wireless in Crowded RF
Stronger anti-interference in busy venues
Fewer dropouts, smoother DMX control

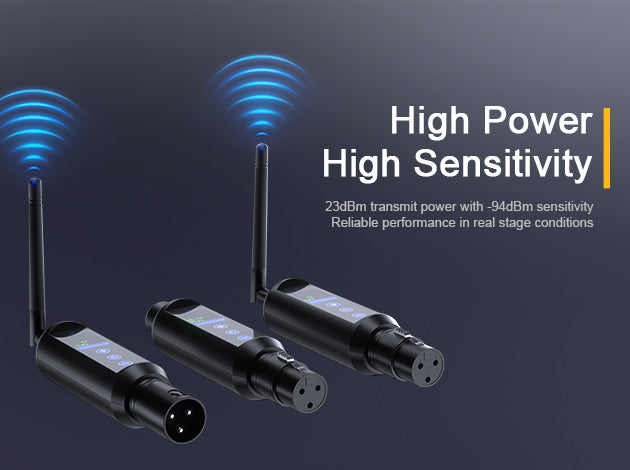

High Power High Sensitivity
23dBm transmit power with -94dBm sensitivity
Reliable performance in real stage conditions
Auto-Restart Reliability
Built-in watchdog (WDT) for self-recovery
Confidence for long shows and installs

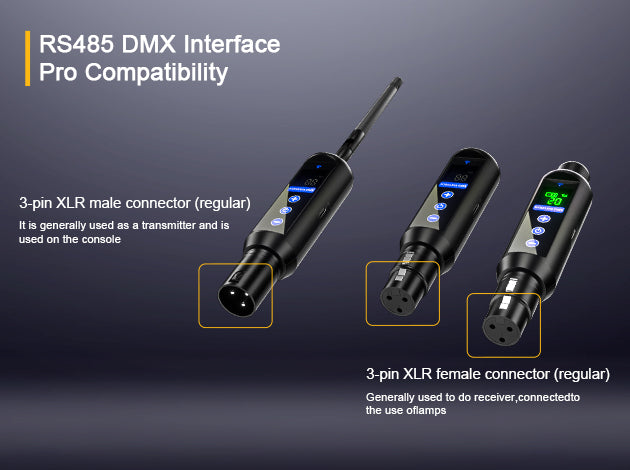

RS485 DMX Interface
Pro Compatibility
Works with standard DMX512 ecosystems
Easy integration with consoles and fixtures

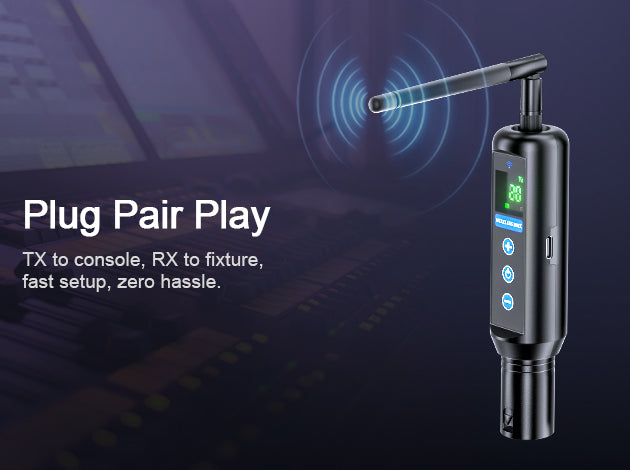

Plug Pair Play

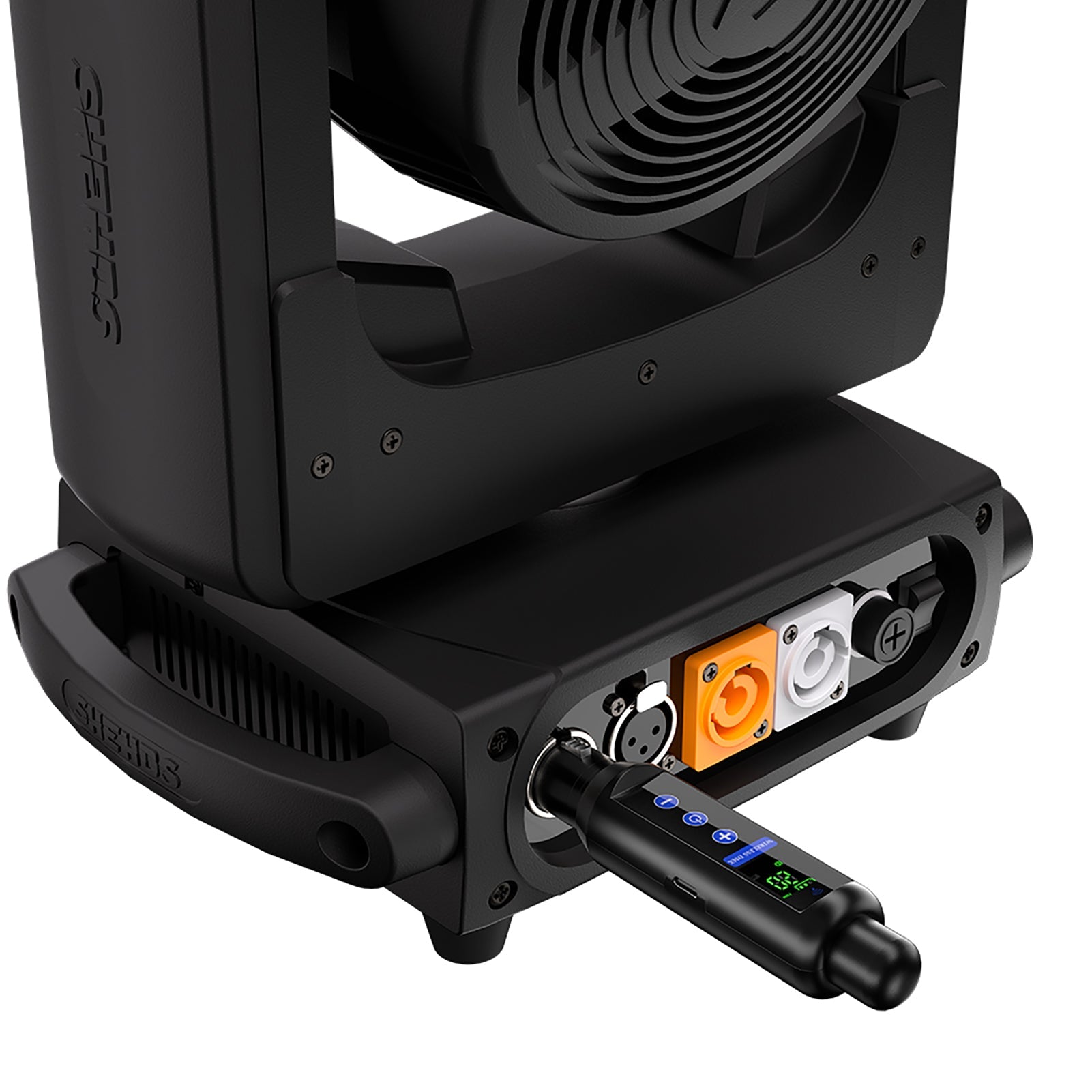

TX to console, RX to fixture, fast setup, zero hassle.
32-bit ARM Pro-Grade Inside
Strong processing for stable wireless DMX
Built for demanding show control.

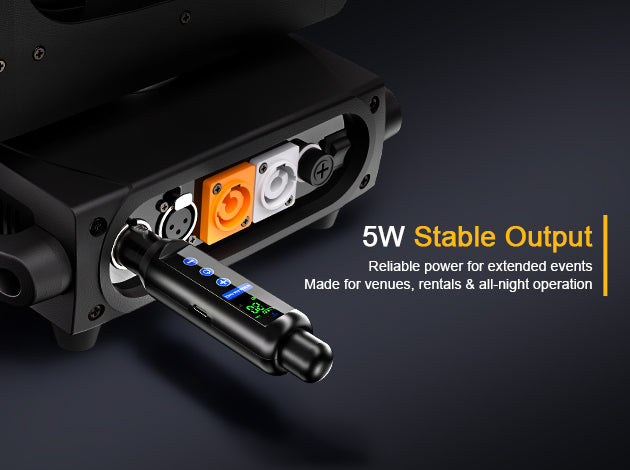

5W Stable Output
Reliable power for extended events
Made for venues, rentals & all-night operation
-40°C to 85°C
Wide Operating Temperature Range
Designed for outdoor productions & demanding sites.

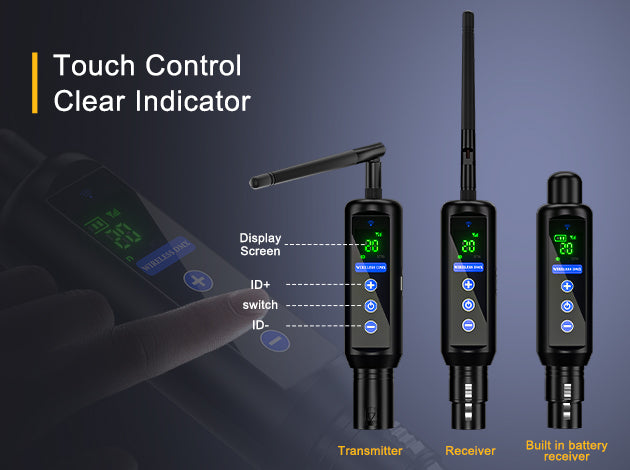

Touch Control Clear Indicator
Quick touch power control,
Flash indicator shows connection status instantly.

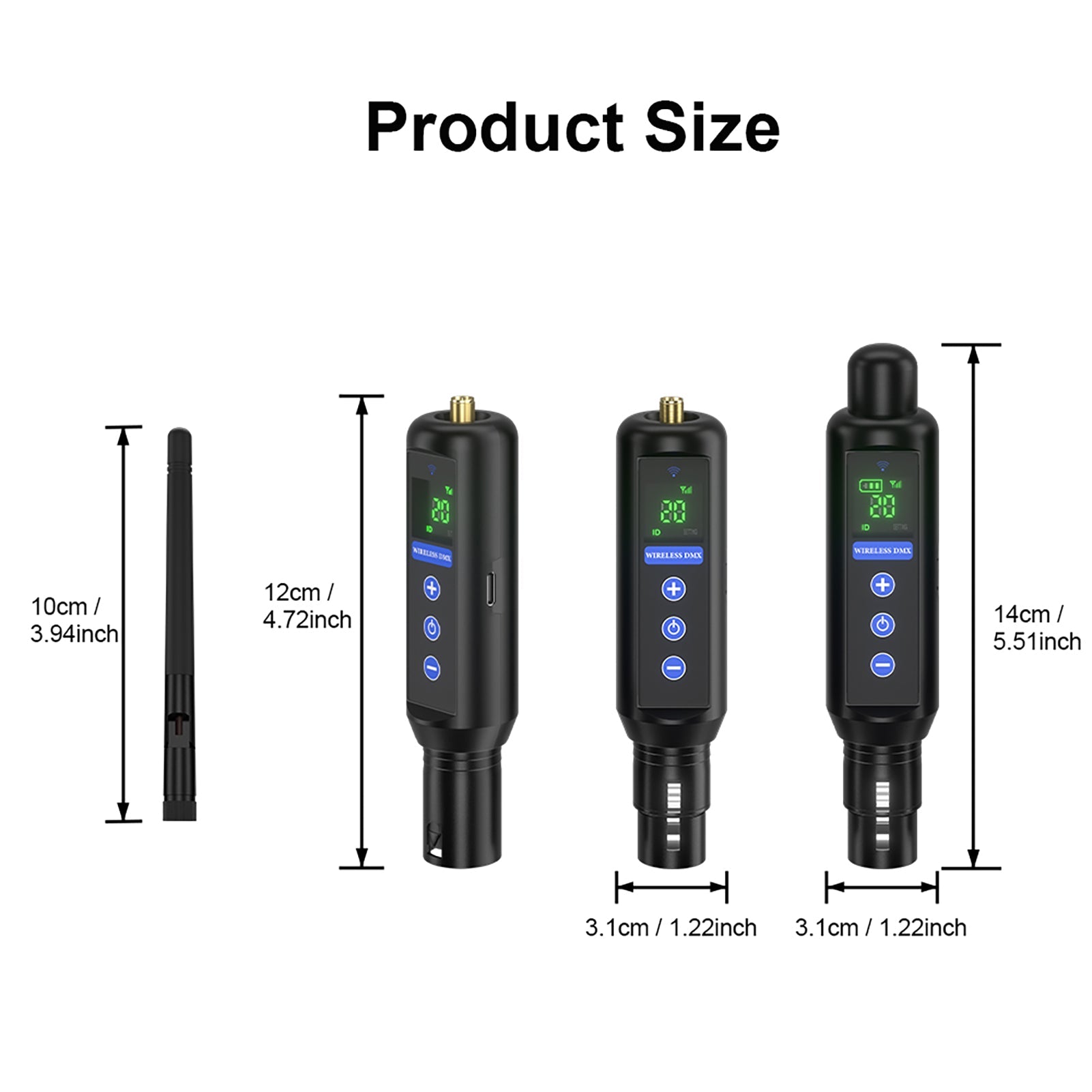

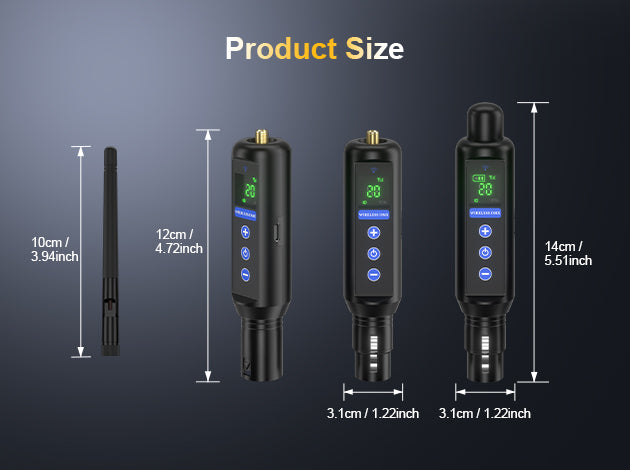

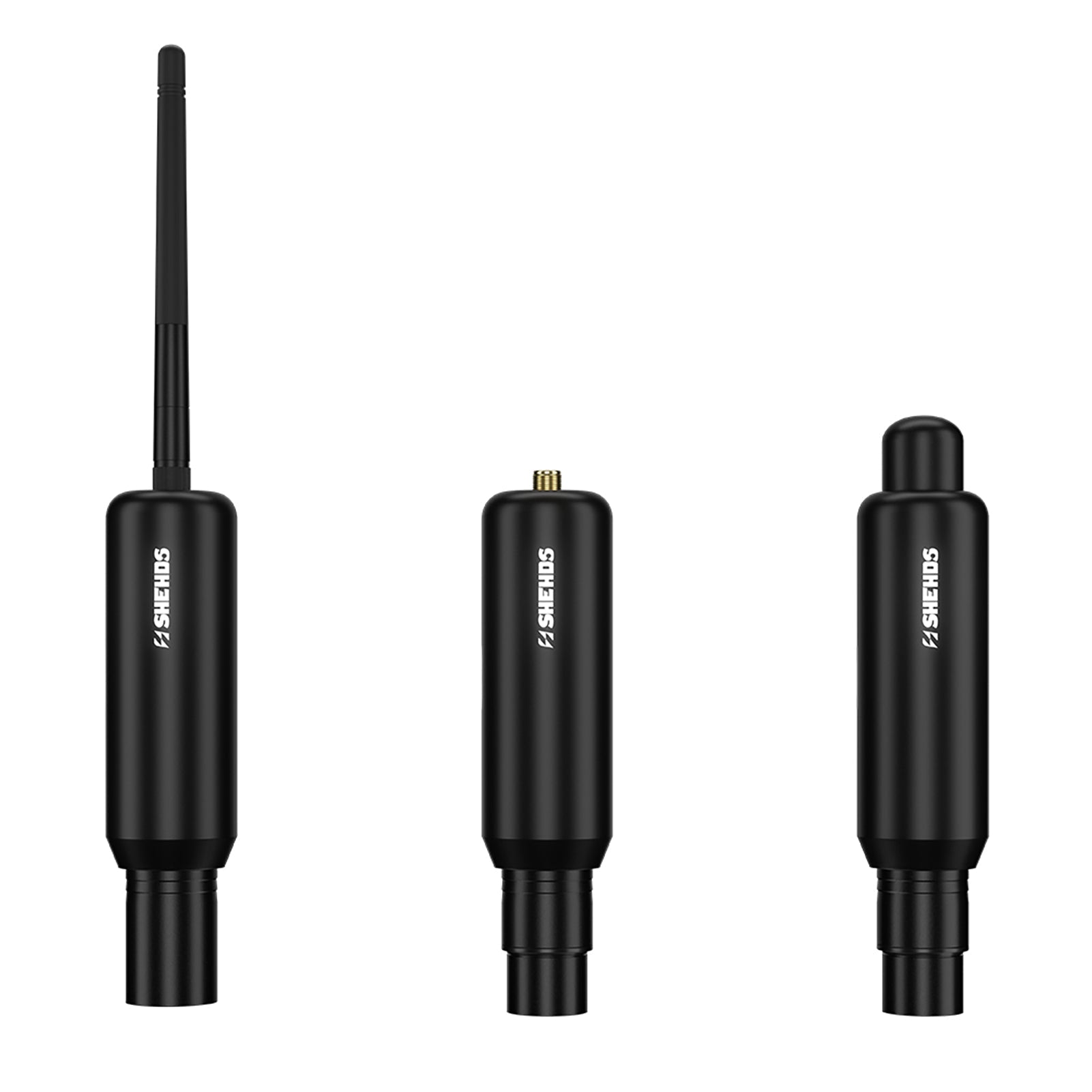

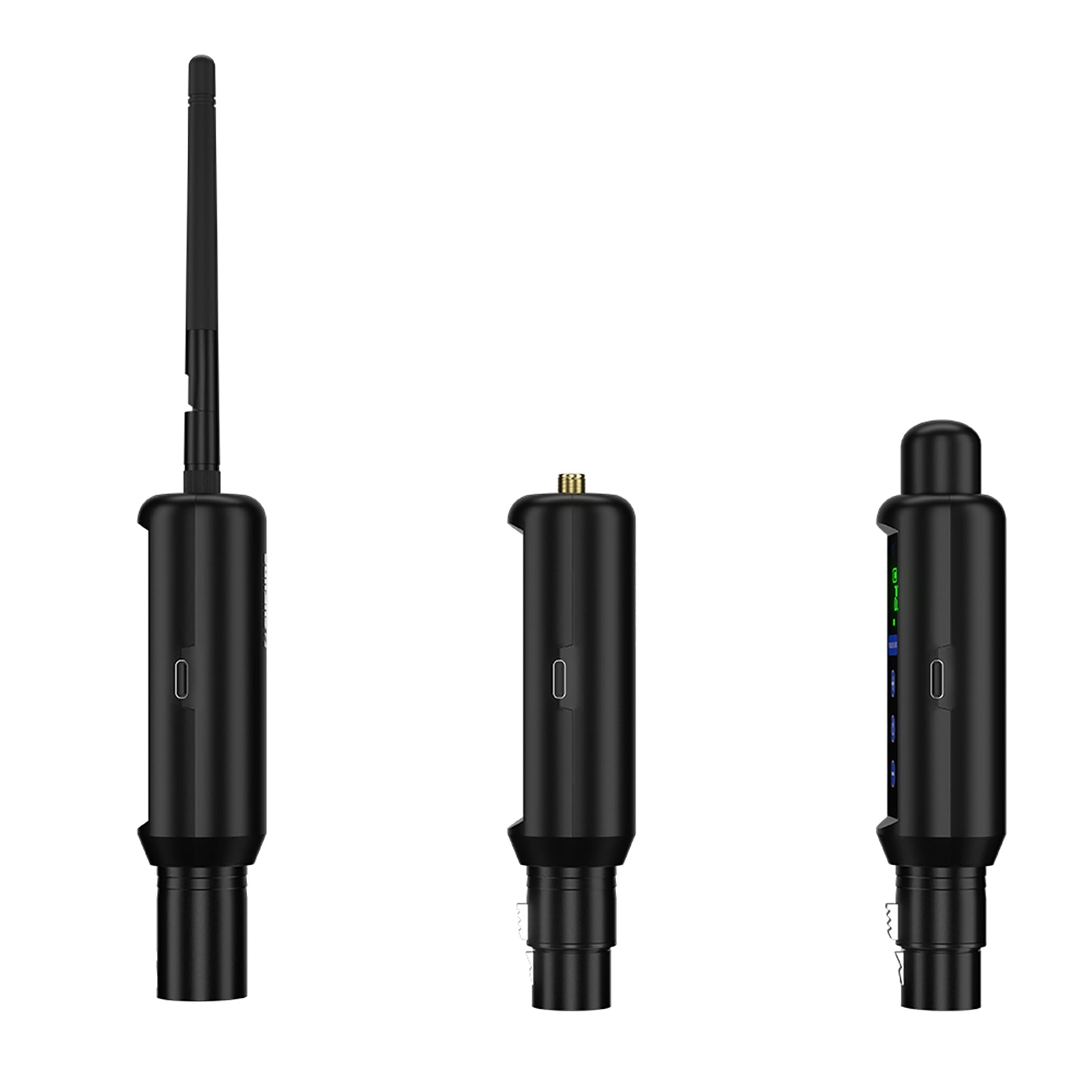

Small Size, Big Presence
Easy to pack, carry, and set up, ready for shows in any space.

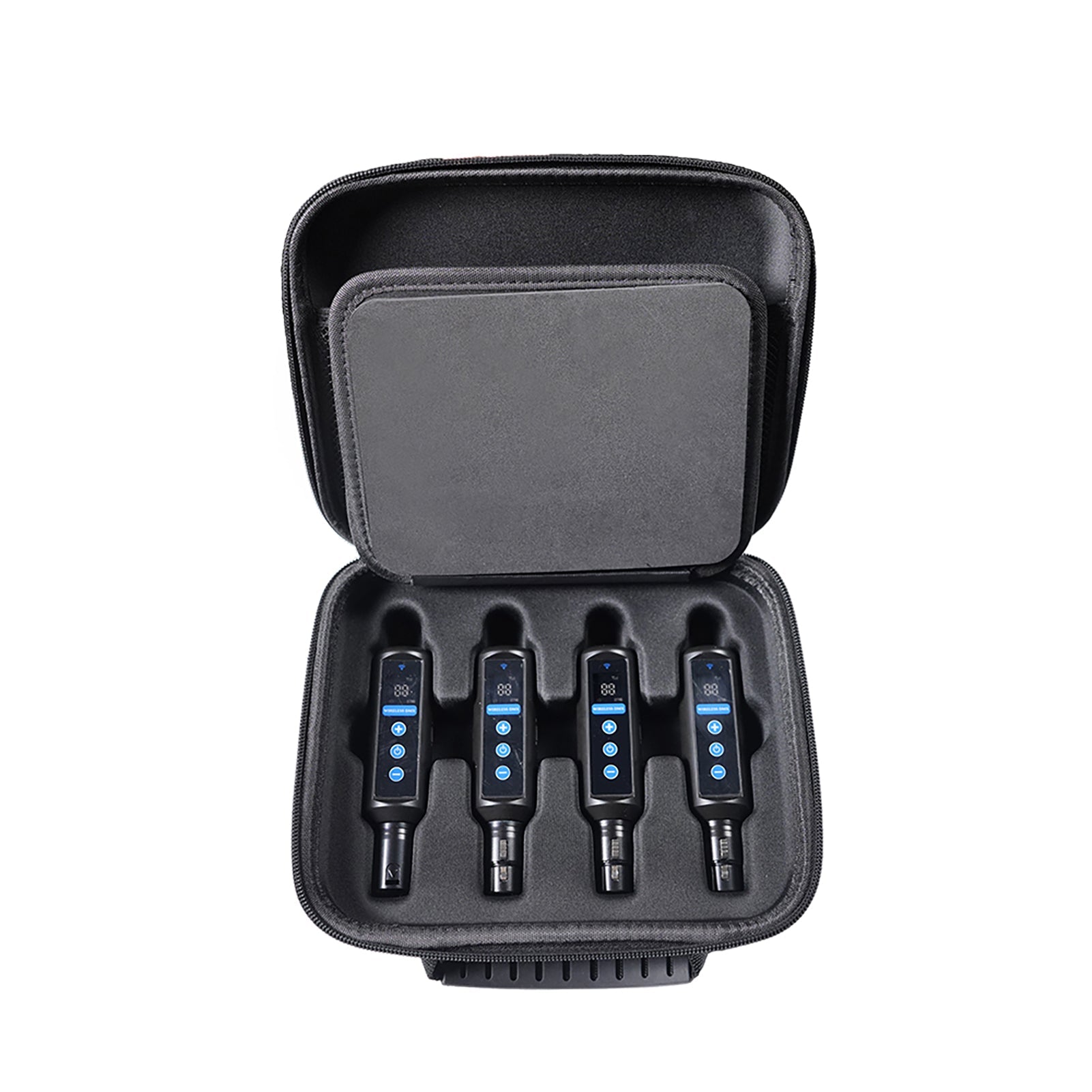

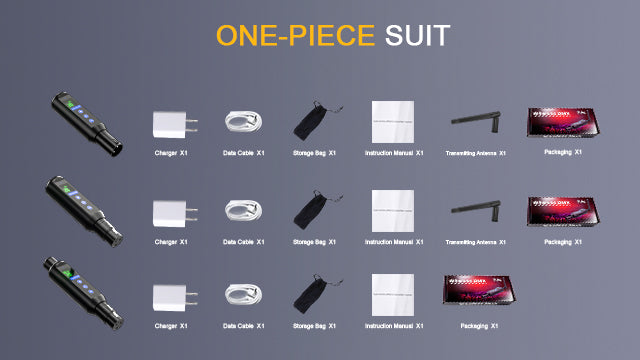

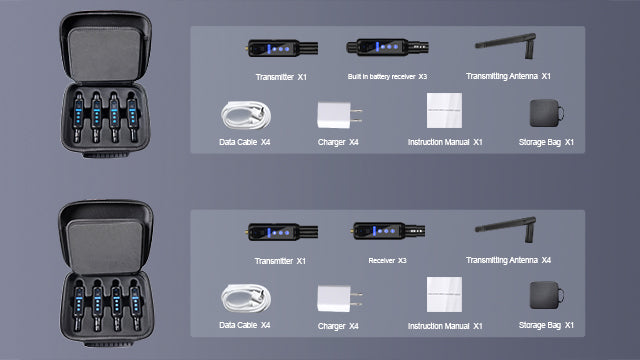

What’s in the box (per set)
All essential accessories included

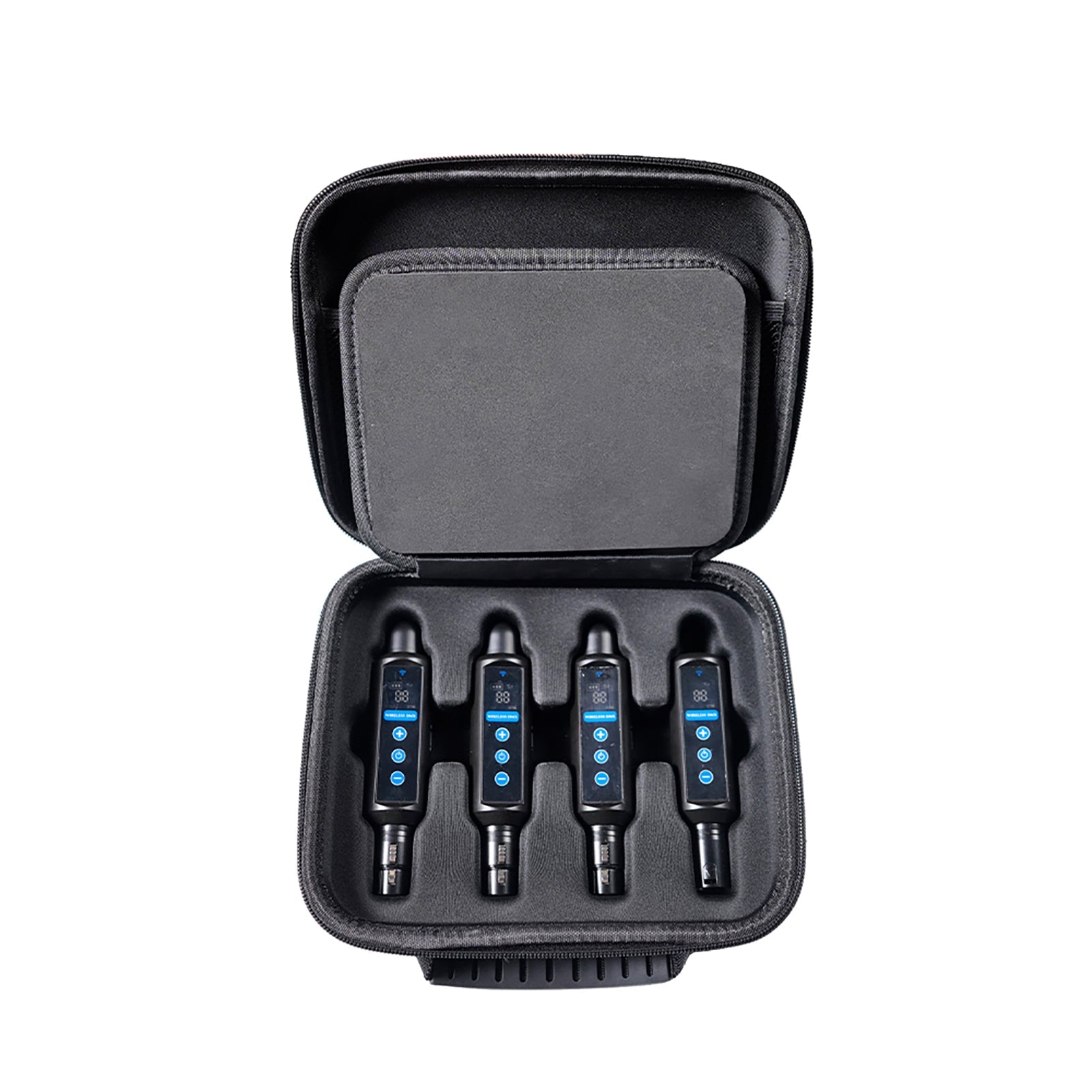

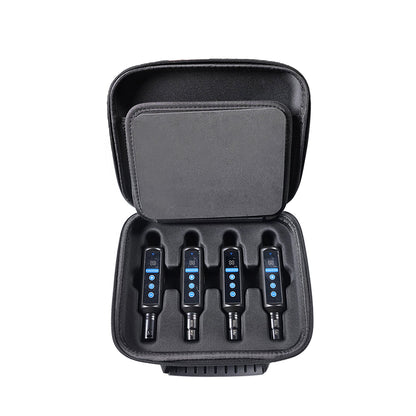

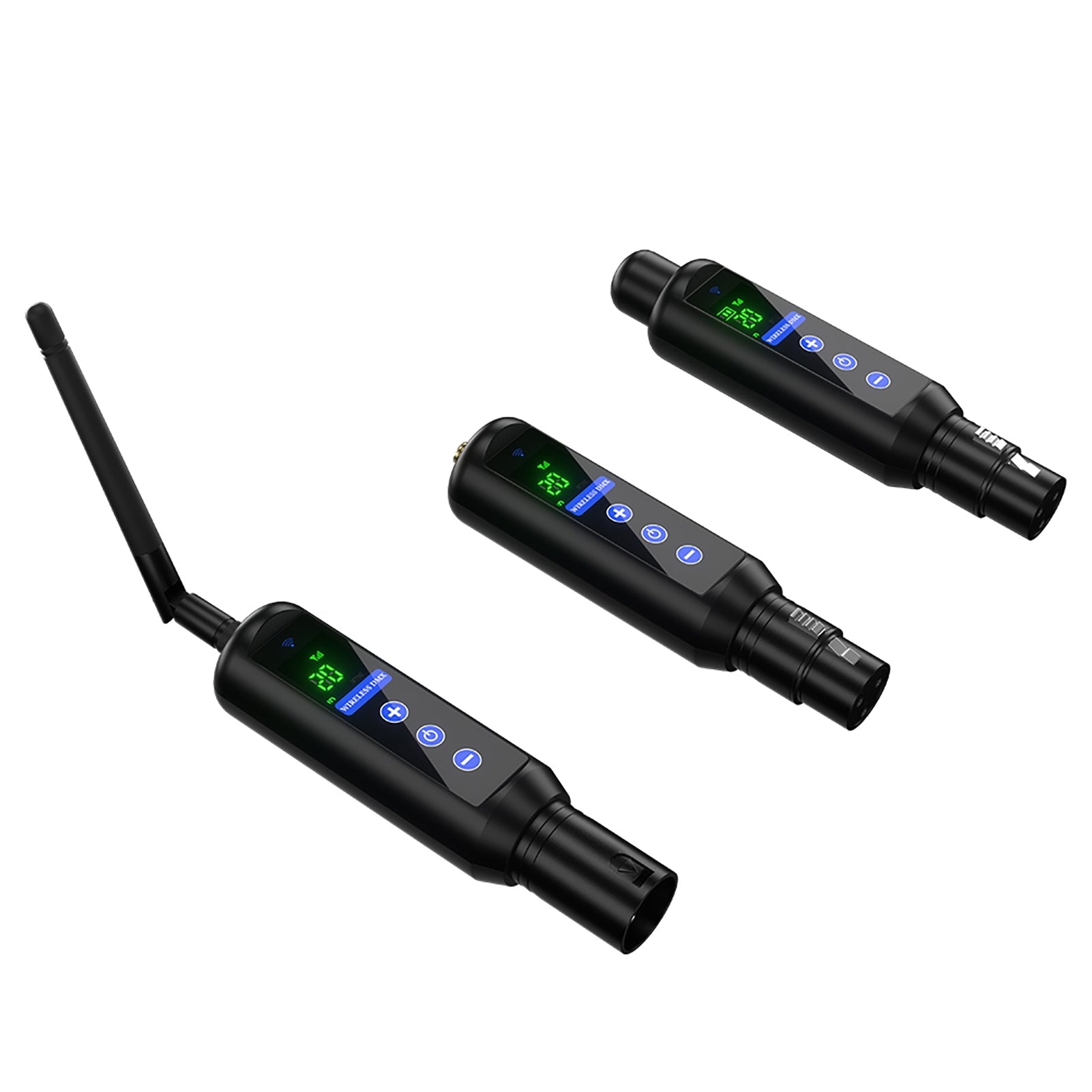

4-Piece Kit
1 Transmitter + 3 Receivers for multi-light control

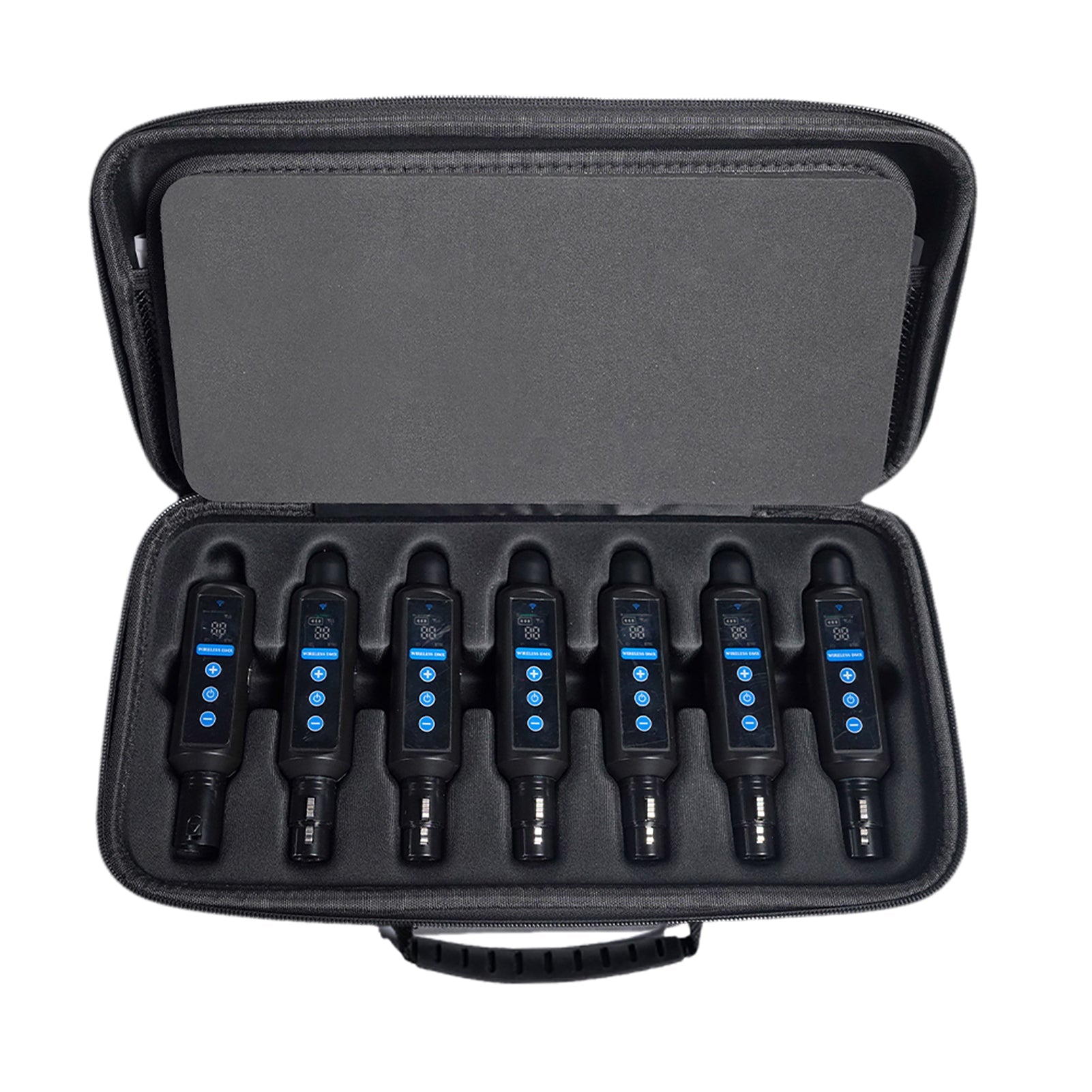

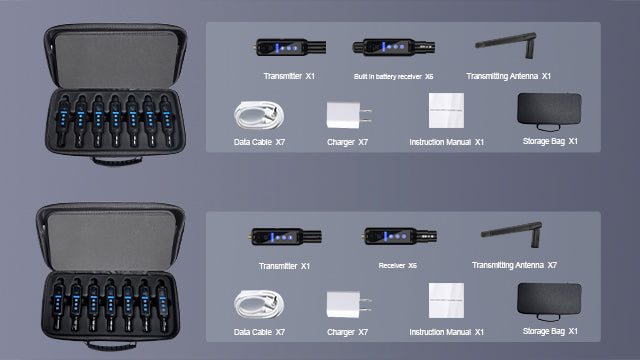

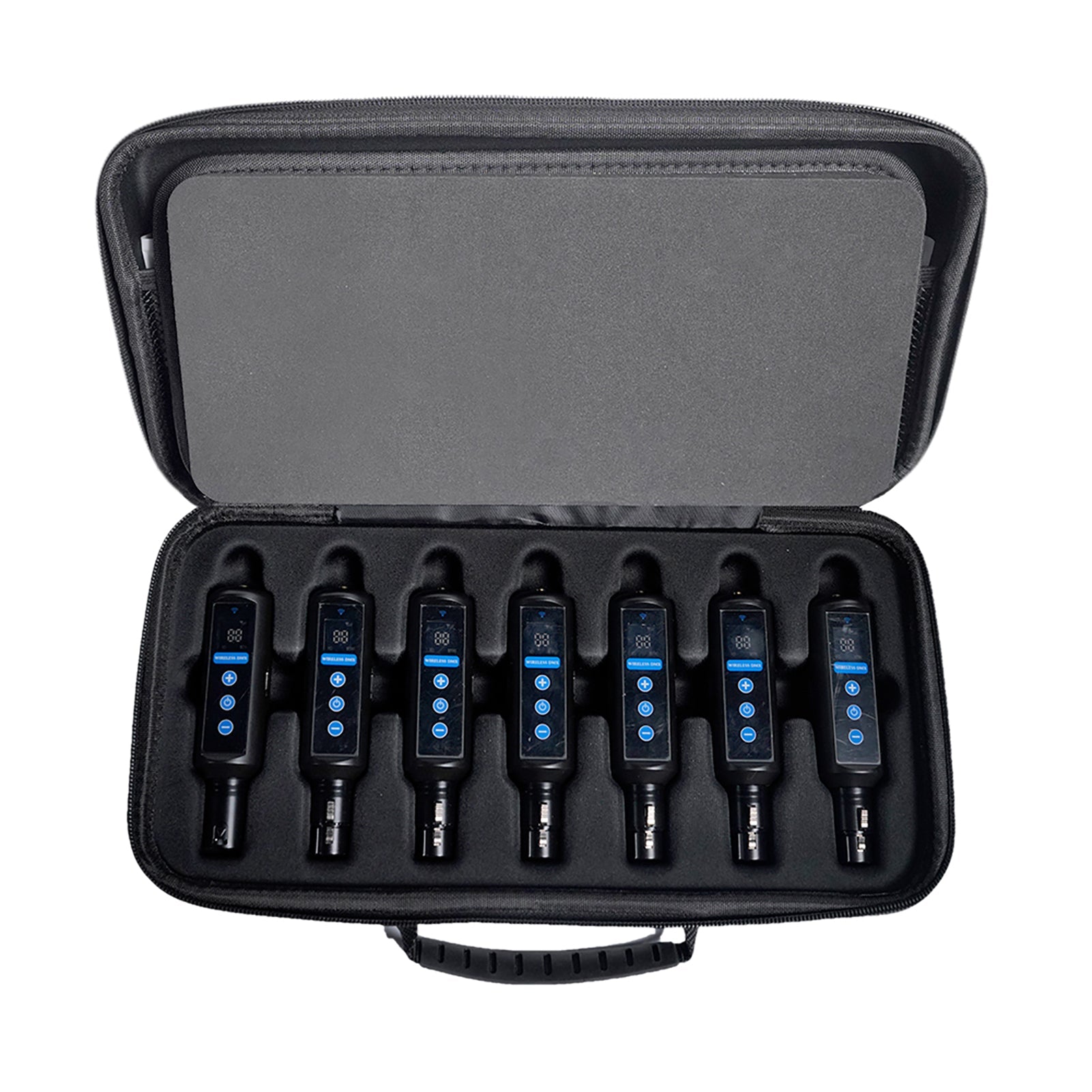

7-Piece Kit
1 Transmitter + 6 Receivers for multi-light control

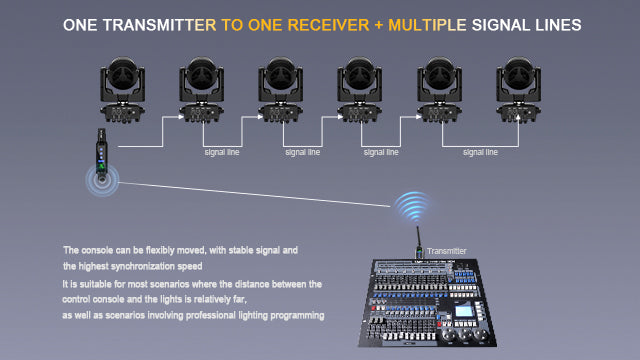

1 TX → 1 RX + N Signal Line Expansion
Wireless to the first fixture, then daisy-chain via DMX cables, less cabling, more flexibility.

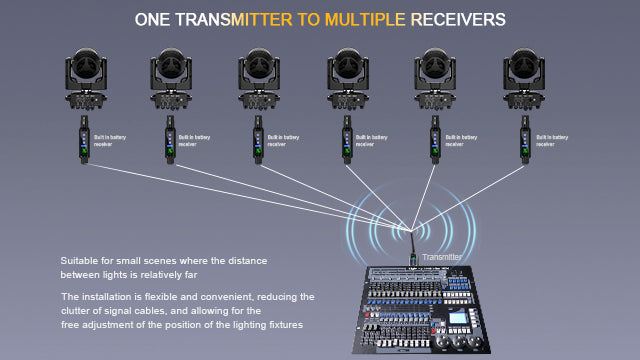

Transmitter to Multiple Receivers
Flexible and convenient installation. Minimizes cable clutter and keeps the setup clean, while allowing you to reposition fixtures freely as needed.

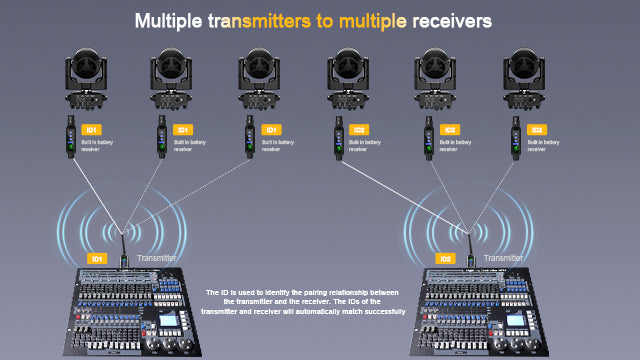

Multi Transmitters to Multi Receivers
Supports up to 20 transmitter–receiver groups operating simultaneously in the same venue.

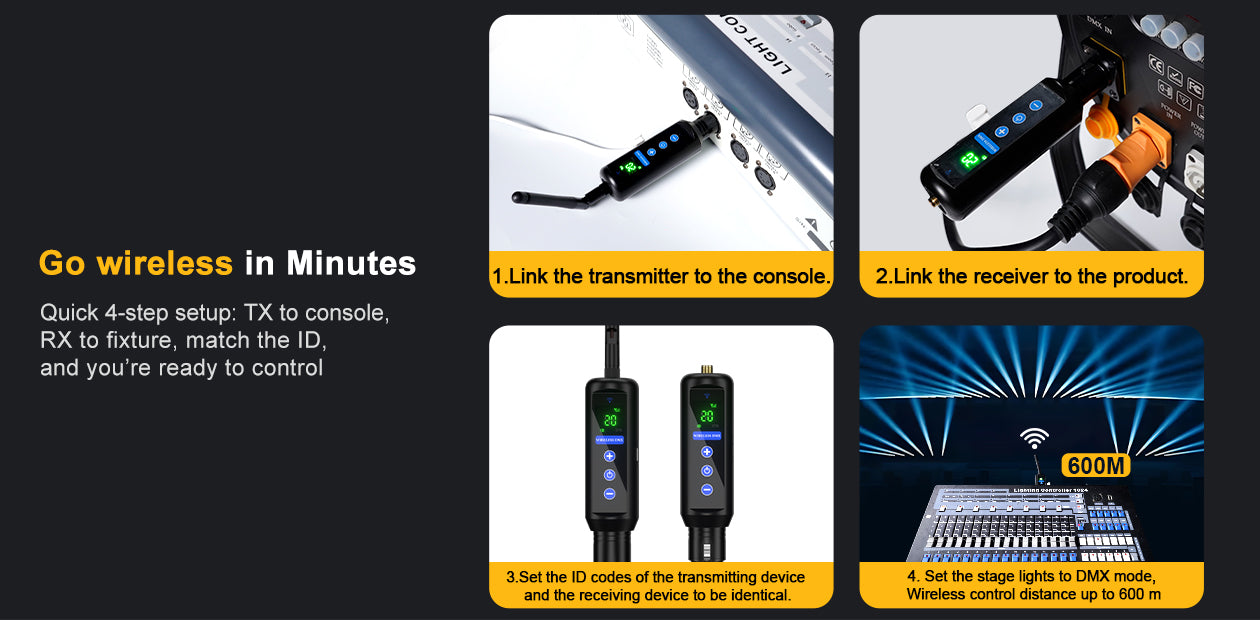

Go wireless in Minutes
Quick 4-step setup: TX to console, RX to fixture, match the ID, and you’re ready to control.
Applicable Scenarios
Less cabling, faster deployment, built for versatile use.
