Technical Parameter
-Light source parameters
Laser wavelength:
R-640nm / G-520nm / B-457nm
Spot size (laser window spot):
5.5mm
Light source divergence angle :
<1.5mrad
Modulation mode:
0~5V analog, up to 25khz/TTL
Laser class:
Class IV
-Imaging system
Imaging color:
Red, green, blue mixed colors
Evenness:
>98%
Lens Horizontal Offset:
-25% to +25%
Lens Vertical Offset::
-25% to +25%
Imaging mode:
3D/2D pattern and animation (with software)
Projection distance:
＜20M The best distance is 10~20M
Playback rate:
15 KPPS
Playback angle:
Max50°

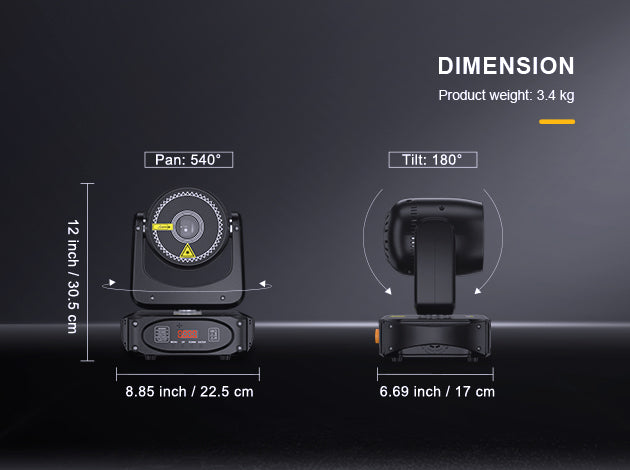

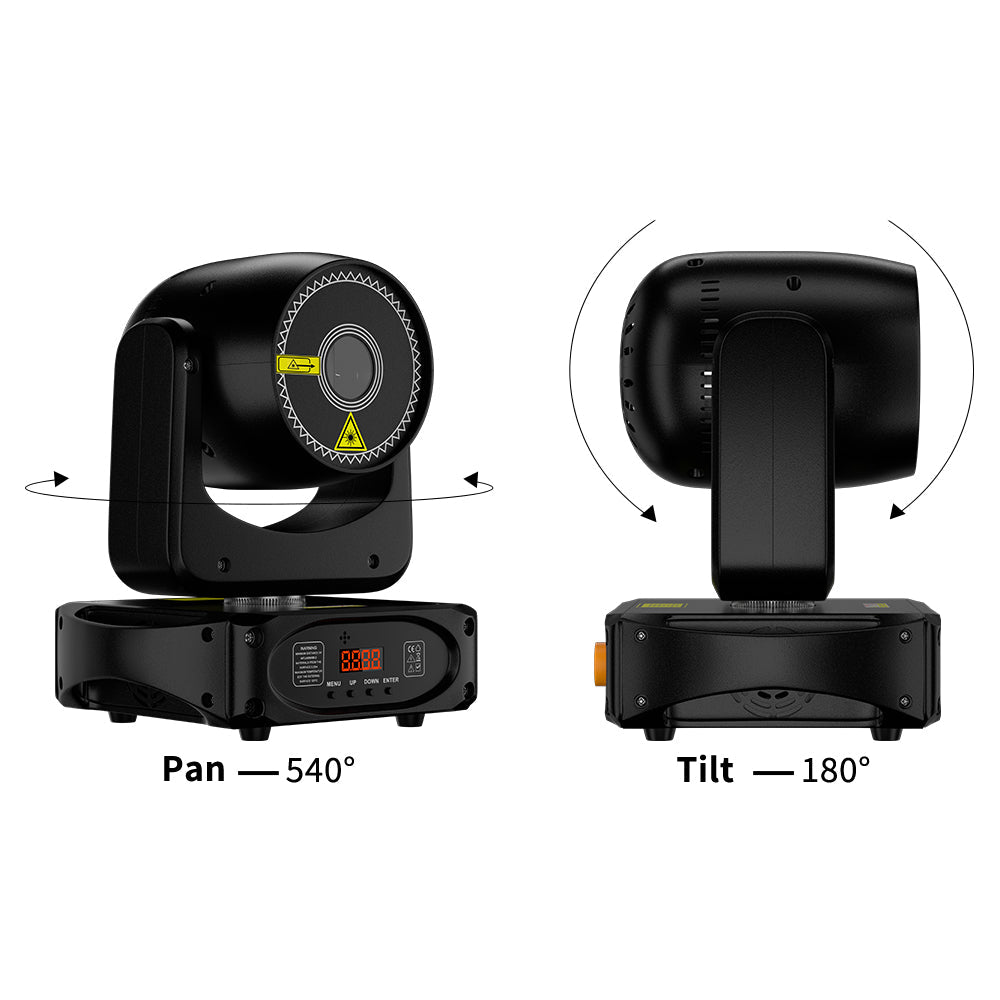

Movement
Pan:
540° and 16Bit
Tilt:
180° and 16Bit
-Security system
Safety item:
Over current and voltage protection
Degree of protection:
IP20
Operating temperature:
15℃~45℃

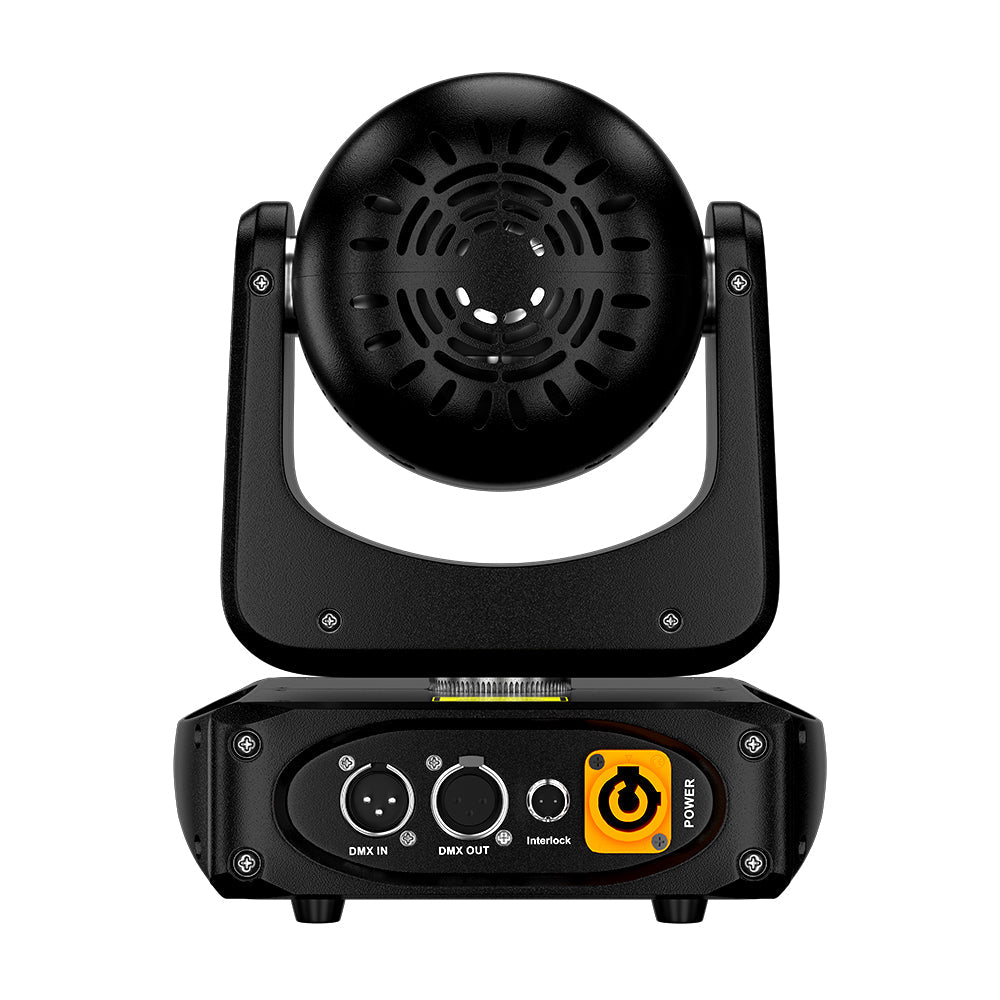

-Interface and Control System
Control interface:
DMX In/Out
DMX channel:
26CH
Power interface:
PowerCon
-Cooling system
Cooling method:
Air cooled and thickened passive heat dissipation module
Structure:
40mm plug-in heat dissipation layer
-Power consumption
Working power:
100~240V AC 50/60HZ
Power consumption:
Max 60W
-Physical parameters
Product size :
8.85x6.69x12 inch / 22.5x17x30.5 cm
Product weight:
3.4 kg
Pack size:
13.85x10.63x9.45 inch / 34x27x24 cm
Package weight:
4.41 kg

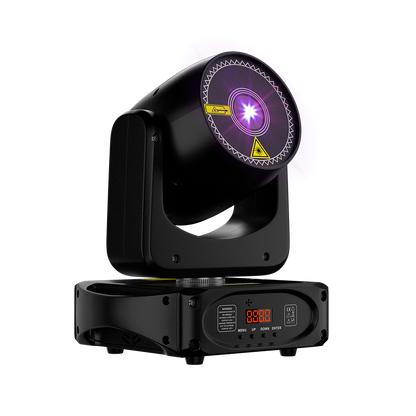

Constellation Laser Series
The origin of constellations can be traced back to prehistoric times.
People use them to tell stories about their beliefs, experiences,
creations and myths. Our designers have created a variety of laser stage lights under the name of "Constellation Laser".
Like the stars that light up the nebula in the dark, our laser lights light up every stage.

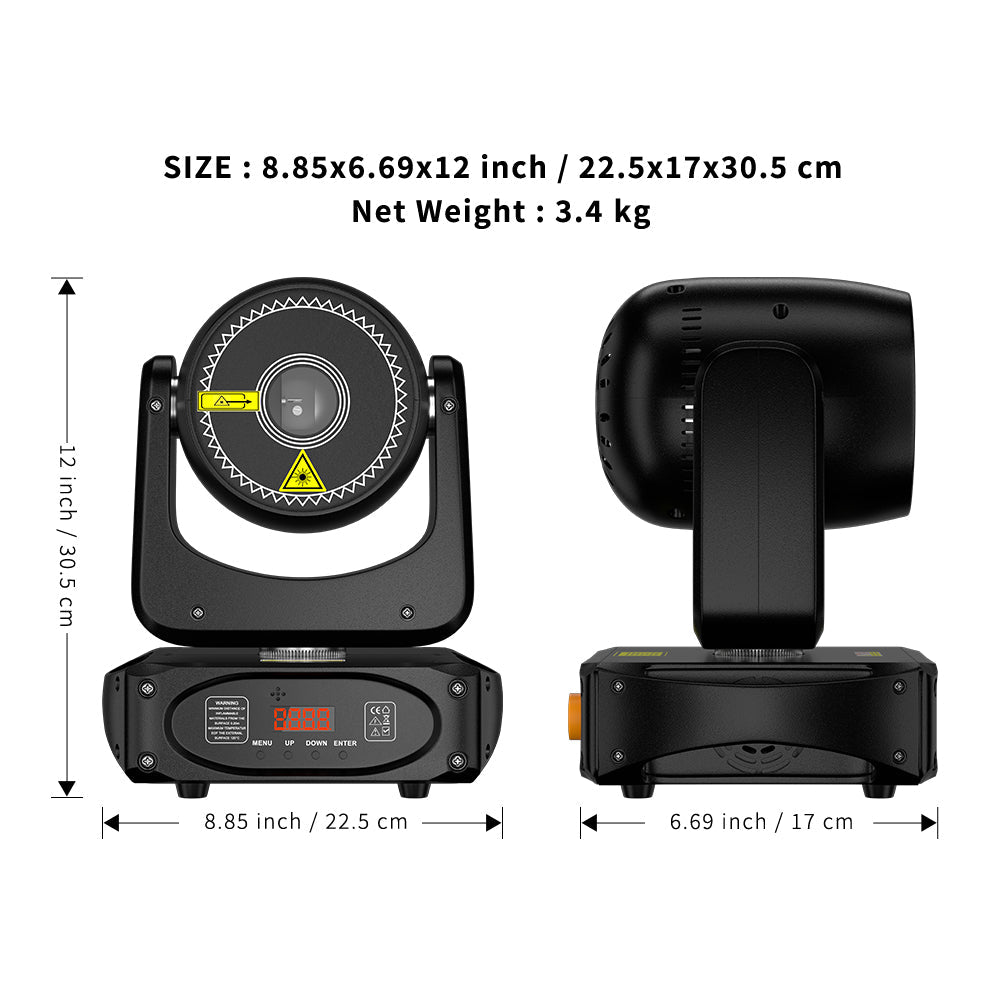

Product Size
Product size : 8.85x6.69x12 inch / 22.5x17x30.5 cm
Product weight: 3.4 kg
Pack size: 13.85x10.63x9.45 inch / 34x27x24 cm
Package weight: 4.41 kg

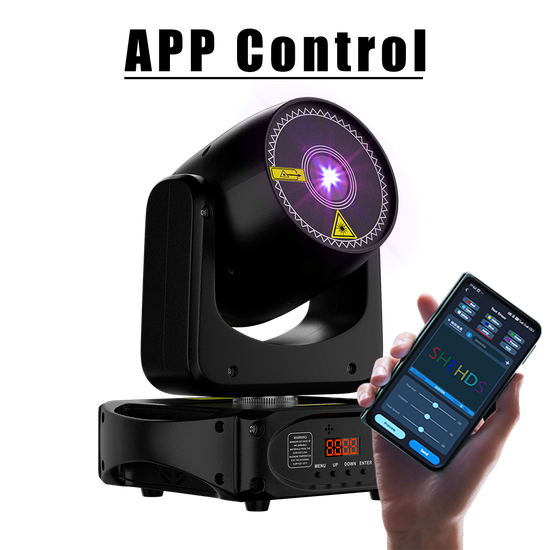

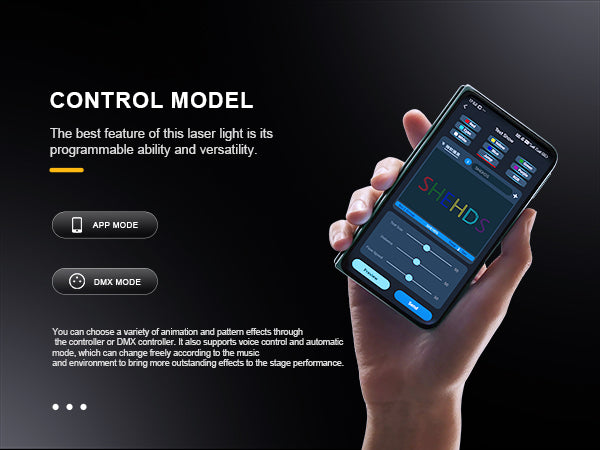

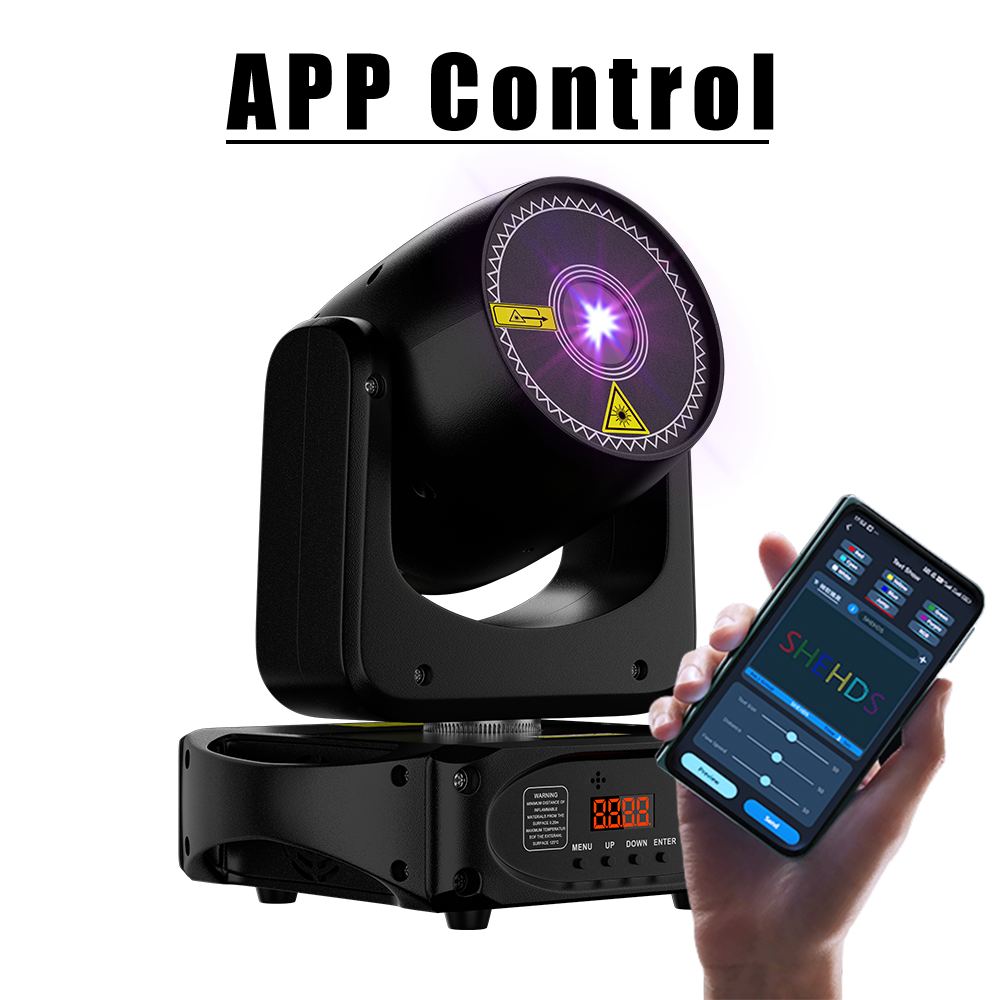

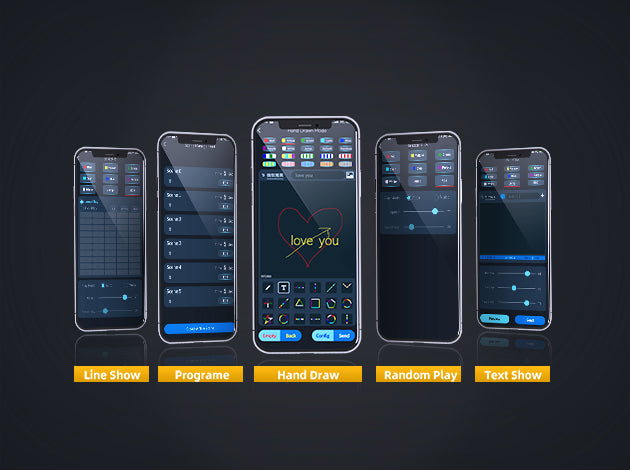

APP Conctrol
Support wireless remote control of laser
for Android and Apple system apps for laser output and setting menu options.
Control Mode
The best feature of this laser light is its programmability and versatility.
You can choose a variety of animation and pattern effects through the controller or DMX controller.
At the same time, it also supports sound mode and auto mode,
which can change freely according to the music and environment to bring more outstanding effec ts to the stage performance.
RGB Laser Source
"Using semiconductor laser diode light source, the standard full-color analog laser uses three primary colors: red, green, and blue. Can mix multiple brilliant colors! For example, Magenta, Yellow，Cyan，White"
Laser Effect
The laser beam exhibits bright, sharp, and pure lines, with extremely high directionality and spectral purity. These beams can present stunning visual effects through precise beam manipulation and multi-dimensional projection in specific stage environments, creating intoxicating interweaving effects of light and shadow. Whether in large-scale performances, exhibitions, or events, the application of laser technology will bring unparalleled visual impact, enhance the overall atmosphere, and immerse the audience in a dreamlike audio-visual enjoyment.
The Northern Lights Canopy Effects
"Presenting a dreamy and colorful visual effect similar to the auroram, Providing more possibilities and creative space for various performance occasions."

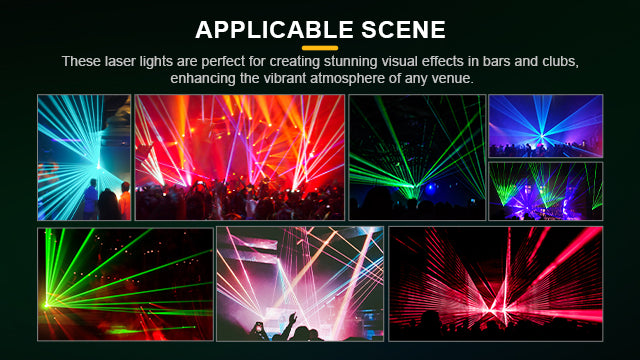

Applicable Scene
"The 3W laser lights are perfect for creating stunning visual effects in bars and clubs, enhancing the vibrant atmosphere of any venue. "
Multiple Pattern Effects
"Multiple Pattern Effects Supporting multiple color blends and gradients, making local patterns more colorful and vibrant in color. Dynamic effects such as rapid transformation, rotation, and scaling of patterns can be achieved according to preset programs or voice commands, bringing viewers a more vivid visual experience."
Applicable Scene
"20 KPPS with high precision High frequency scanning galvanometer technology can accurately capture every detail through fast and continuous laser scanning, achieving smooth transitions and seamless connections of patterns. This technology not only enhances the smoothness of visual effects, but also makes the presentation of patterns more three-dimensional and vivid, as if taking the audience into a dreamlike world where light and shadow intertwine."
SAFETY TIPS
"During the use of a laser source, Do not look directly at the light source. The effect of stage laser lights is formed by high-speed scanning of the laser beam through high-speed galvanometers or low-speed stepper motors. The harm to the human body is mainly reflected in the harm to the eyes, and prolonged exposure can lead to blindness."
Before leaving the factory, each of our products undergoes rigorous testing to ensure they are in perfect condition before being shipped out. Our strict control over quality is like an artist polishing their masterpiece, striving for perfection in every detail. Only products that have gone through layers of scrutiny can confidently leave our factory and arrive in your hands with unparalleled quality, bringing you an excellent user experience.

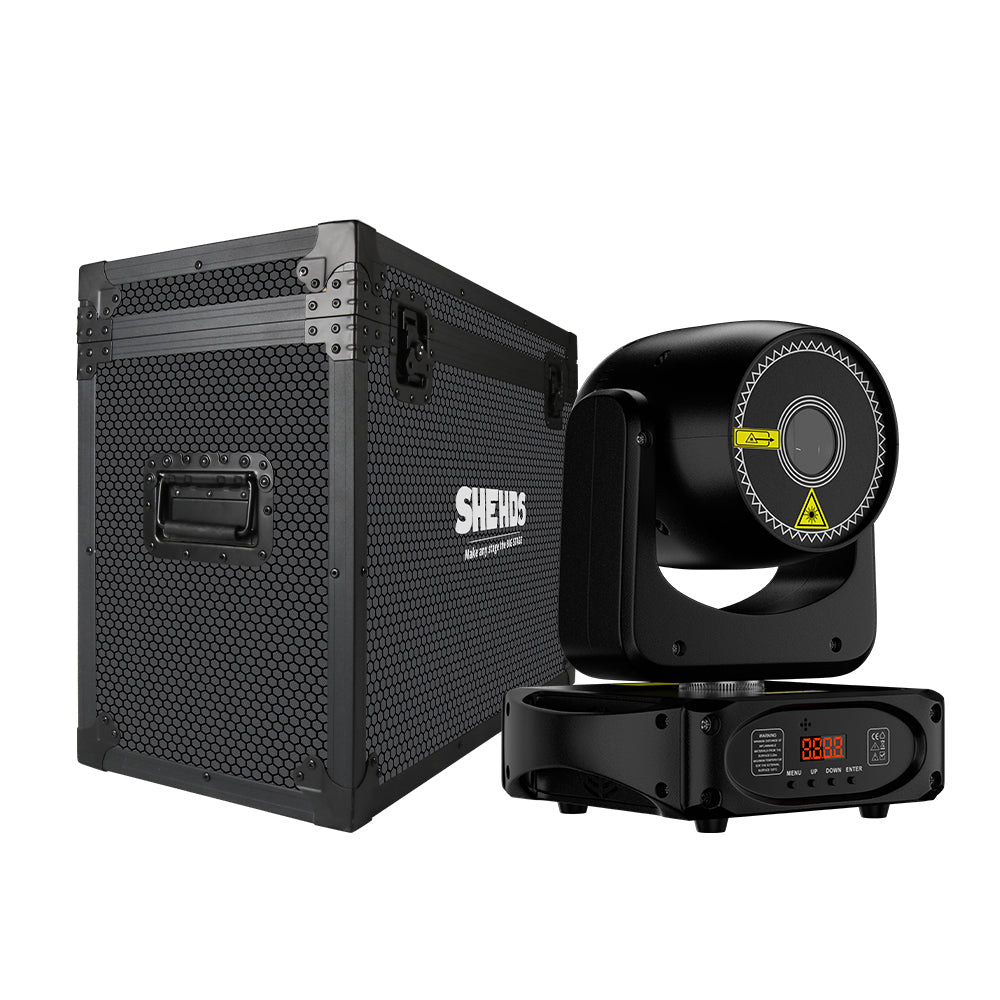

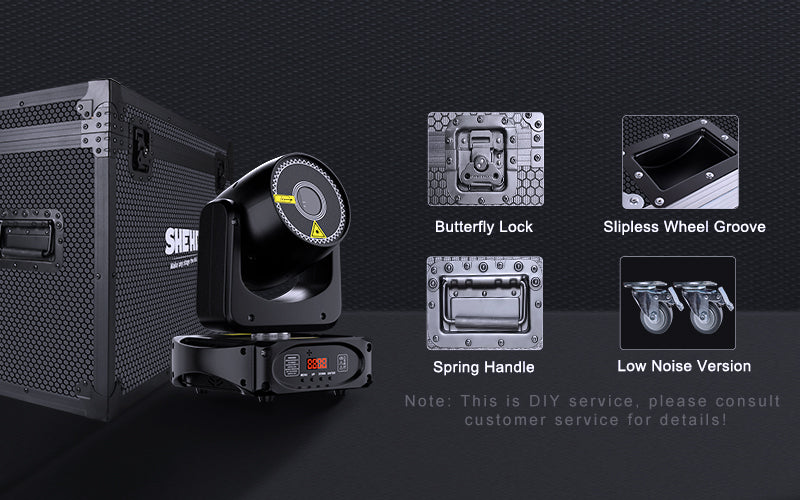

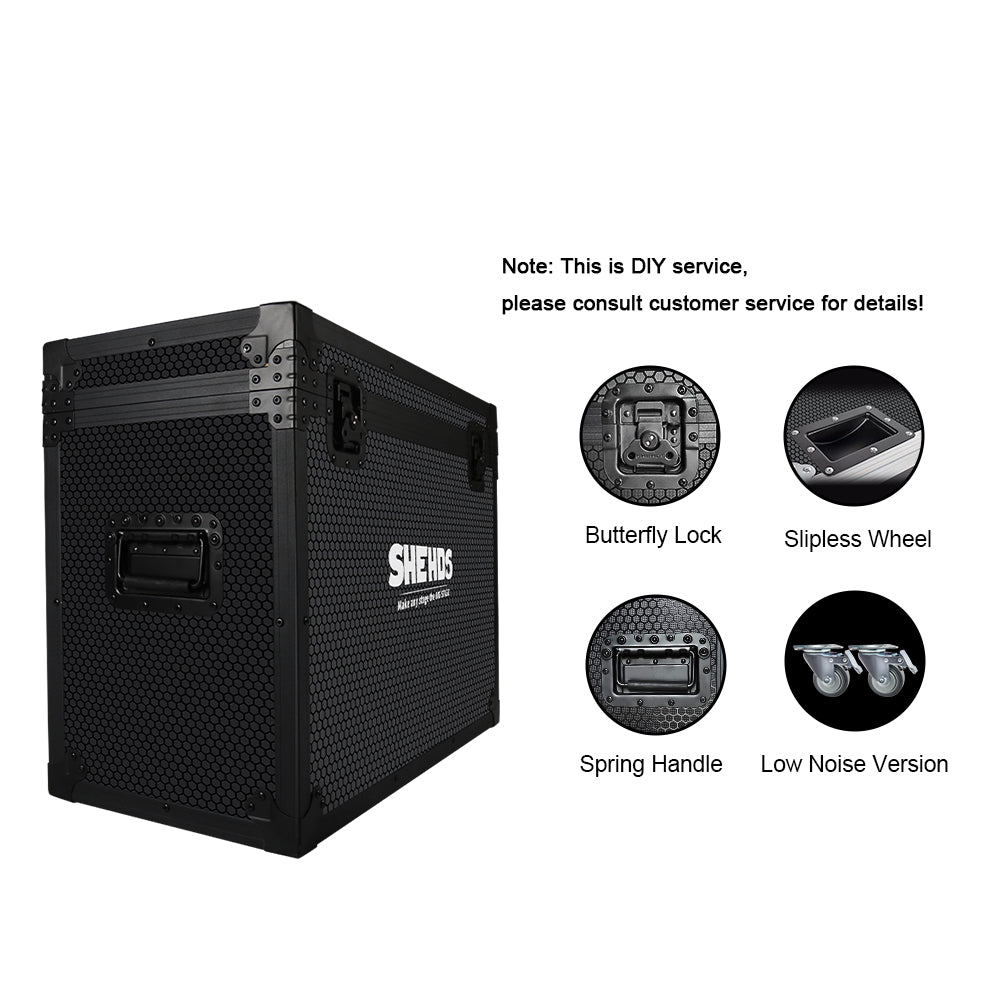

Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
We offer customized aviation cases that perfectly meet your product needs. Whether it's precision equipment, fragile items, or valuable goods, our aviation box design not only ensures safety protection, but also adapts flexibly to various specifications and shapes. Each box is finely crafted and made of high-quality materials, providing excellent protection and convenient transportation experience for your products. From concept to delivery, we work closely with you to ensure that every detail meets your expectations.
Note: This is DIY service,
please consult customer service for details!
