Technical Parameter
-Electrical Specification and Connections
Power Supply:
250W Electronic Auto-Ranging
Input Voltage Range:
100-240 V, 50/60 Hz
Power in Connector:
PowerCON
Signal input/output:
3-pin XLR Head Socket
-Source
Light Source Type:
250W LED Warm&Cool White 2in1
Color Temperature:
3200K~5600K
LED Life Expectancy:
20000 Hours
Dimmer:
0~100% Linear Dimming
LED Feature：
DMX512/Master-Slave/Auto/Sound
-Optical System
Beam Angle:
17 Degrees
Strobe:
0--25HZ
Dimmer:
0~100% Linear Dimming
-Control and Programming
Protocols:
DMX512
Running Mode:
DMX512 Mode, Manual Mode
DMX Channel Mode：
4 CH
-Mechanical Specification
Housing :
High Strength Aluminum Alloy Body
Heat Dissipation Method:
Overheat Protection, Efficient Heat Dissipation System
Product Zize：
60x24x20 cm
Product Weight:
8.95 kg
Ingress Protection Rating:
IP20

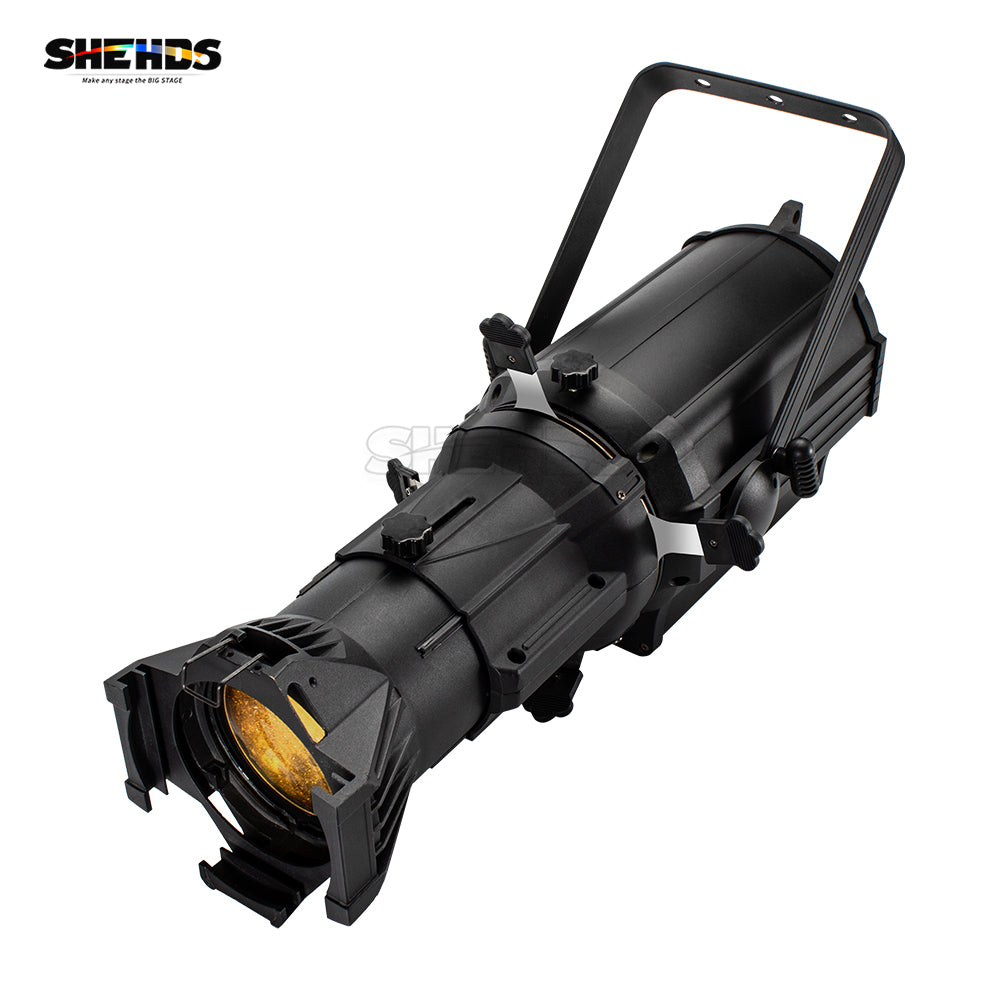

LED 250W LEKO Profile Spotlight
Cool White & Warm White
Adopting high color rendering and high-power 250W LED modules, high-quality optical lenses, with high light efficiency, high color rendering, and clear imaging;
Product Features
Adopting body and lens separation technology, following the traditional imaging lamp design concept and usage method, the light source and imaging are independently combined. Satisfy the lighting requirements of high-end professional photography, videography, etc., suitable for professional venues such as high-definition studios and theaters.
Dimension
Product size：60x24x20 cm
Product weight: 8.95 kg
Beam Angel
17° Beam Angel Covering a wider area can illuminate a larger space. The lighting is more natural and comfortable. It is more natural and will not have overly stiff effects.
3200K~5600K Color Temperature
Color temperature: 3200K~5600K optional
Color rendering index (Ra) ≥ 97, TLCI ≥ 91, can accurately restore the color of objects, making the stage effect more realistic.
Control Interface and Power Interface
DMX512 and power input/output interface, supporting master-slave series mode
0-100% Dimming
Support 0-100% infinite linear adjustment, smooth and jitter free dimming process, ensuring delicate and natural changes in stage lighting.
Clear imaging
The innovative optical design enables clear imaging and precise projection of specific shapes and patterns, creating a unique visual effect for the stage.
3200K Color Temperature
A color temperature of 3200K is ideal for capturing warm and welcoming scenes. It helps to restore the true skin tone and scene colors, making the captured images more natural and realistic.
5600K Color Temperature
The 5600K color temperature has been widely used in various fields such as outdoor shooting, commercial and office lighting, professional studios, and film and television shooting due to its close proximity to sunlight. It can provide bright and clear lighting effects while ensuring natural color reproduction.
Packing List
Each process undergoes strict verificationEvery part is carefully selected
Flight Case
DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service,
please consult customer service for details!
